206 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 14 Create a PanelView Plus Application
7. Click the Stop button.
8. Save your changes.

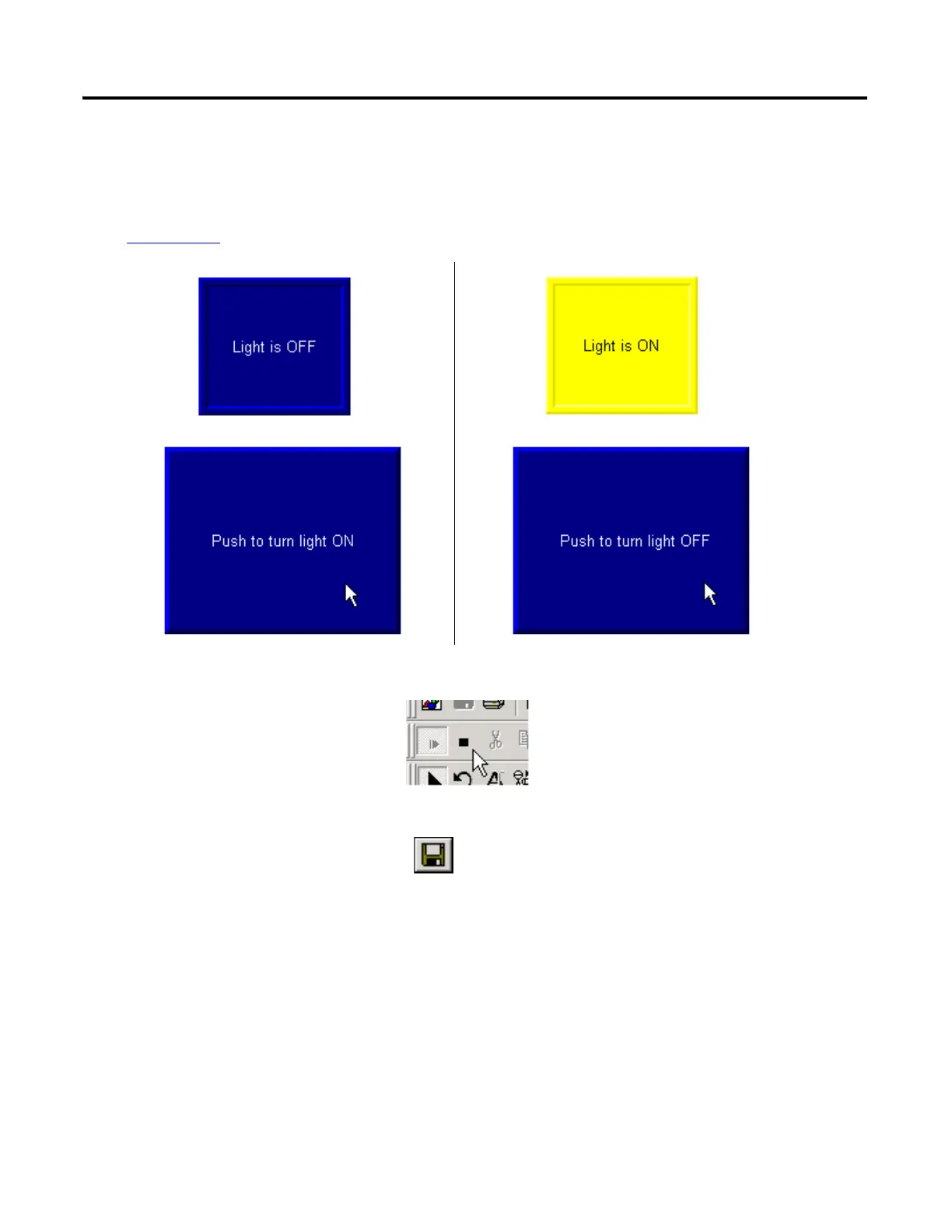

6. Click the Push Button to toggle the state and turn the light on and off.
You could view the connected logic in the Main Program of the project you created in
Chapter 10
.
When prompted for a title for the
display, type test_logic.
