Allen-Bradley CompactLogix Series User Manual

212 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 14 Create a PanelView Plus Application
Test the Application on the PanelView Plus Application
All controllers

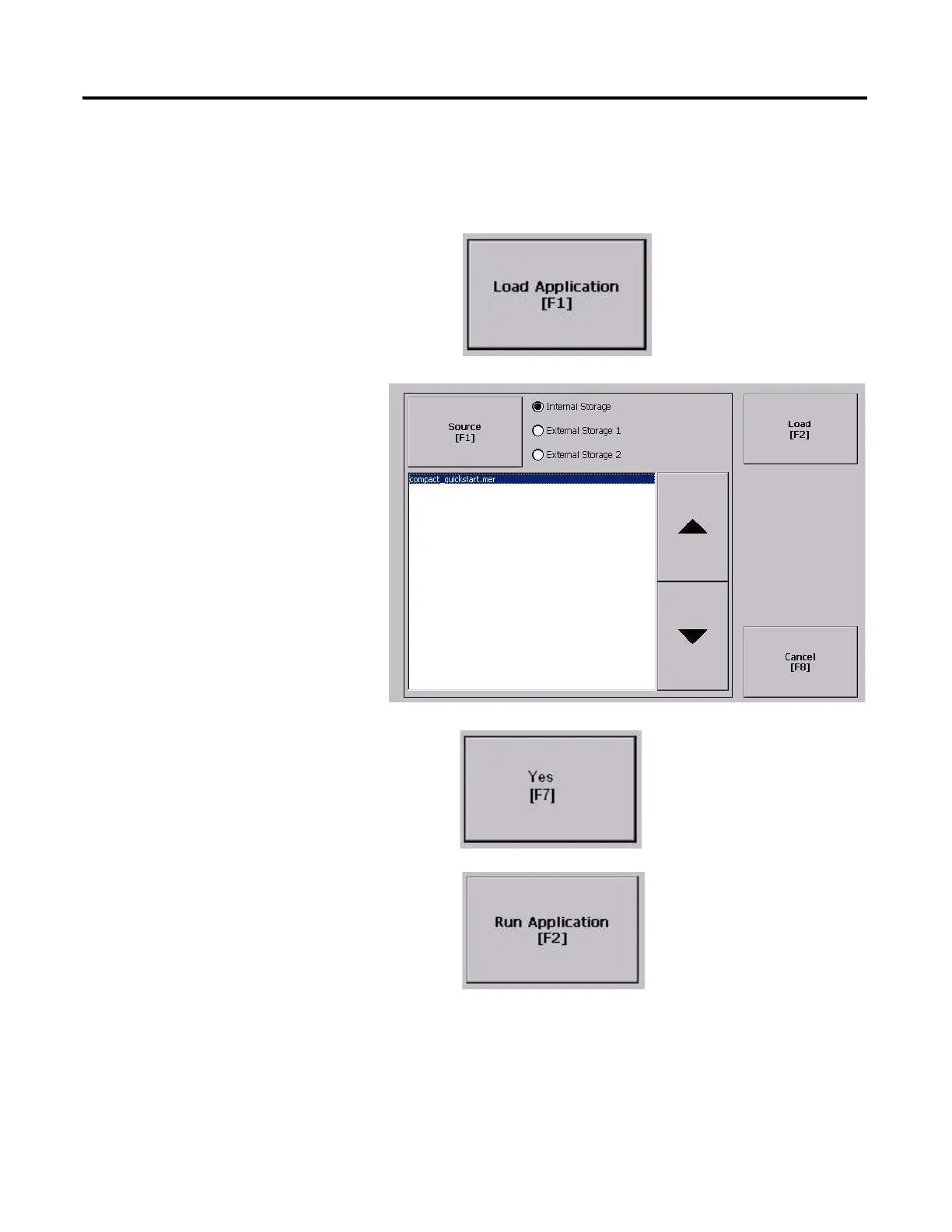

1. On the PanelView Plus application,
press Load Application [F1].
2. Select your .mer file and press
Load [F2].
3. Press Yes [F7].
4. After the application loads, press
Run Application [F2].
5. Press the Push Button. Verify that the indicator turns on and that the light on the
Compact digital output module turns on.
6. Press the Push Button again and verify that the indicator and light turn off.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
