Publication IASIMP-QS001C-EN-P - October 2009 39
Prepare the Computer Chapter 2

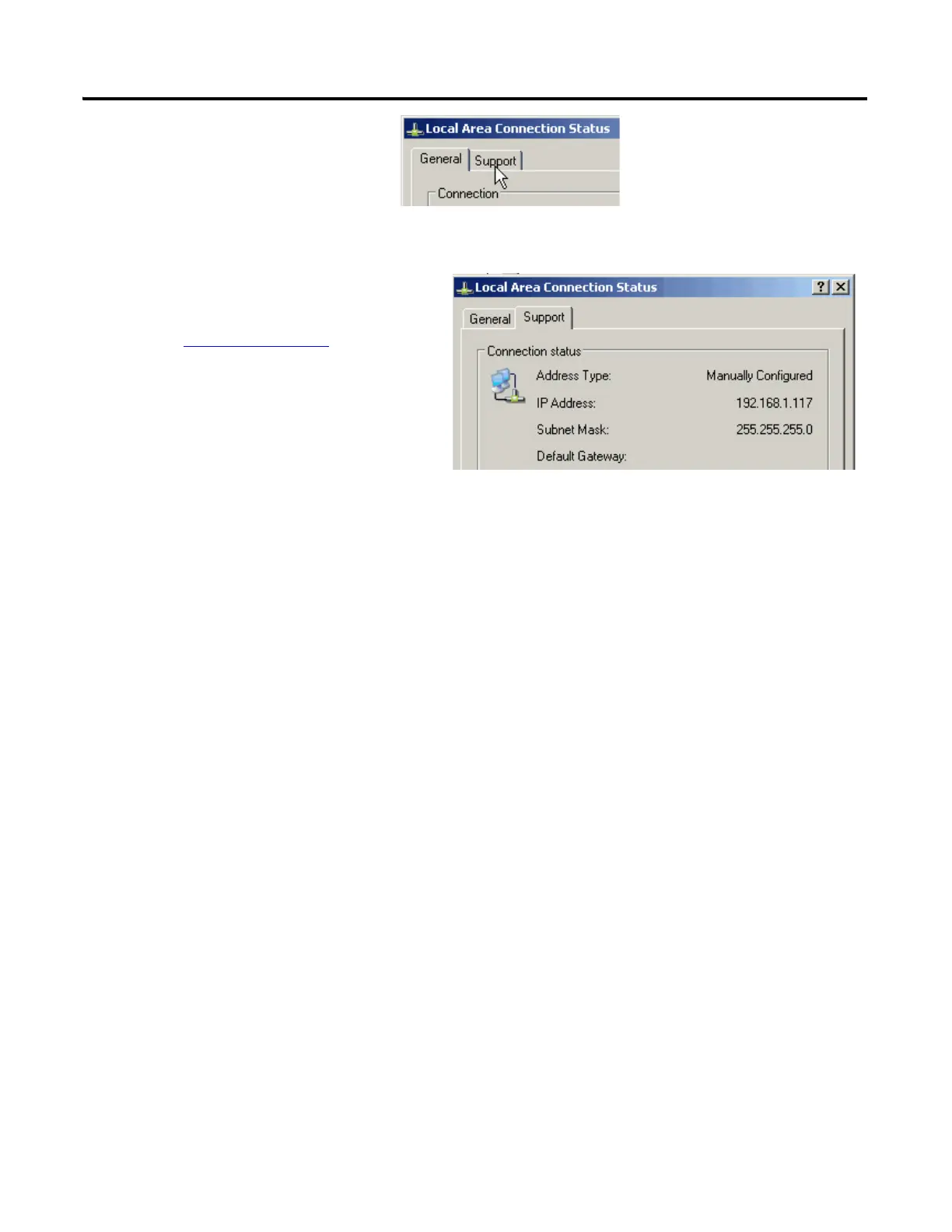

9. Click the Support tab.
10. Verify that the IP Address and
Subnet Mask match what you entered
on the
Network Worksheet.
If these numbers do not match what
you entered, contact your network
administrator to verify that your IP
address is correct.
11. Close the Local Area Connection
Status dialog box.
