Allen-Bradley CompactLogix Series User Manual

68 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 5 Prepare the PowerFlex 40 Drive
0.5-0.6 N-m
(4-5 lb.-in.)
4. Place the adapter cover on the PowerFlex.
5. Tighten the screws.
6. For all networks, connect the network cable to the
adapter.
7. Apply power to the PowerFlex 40 drive.
Important: The front side of the ControlNet adapter faces down
when it is installed in the drive. So, in the installed position, port
A is to the right of port B.

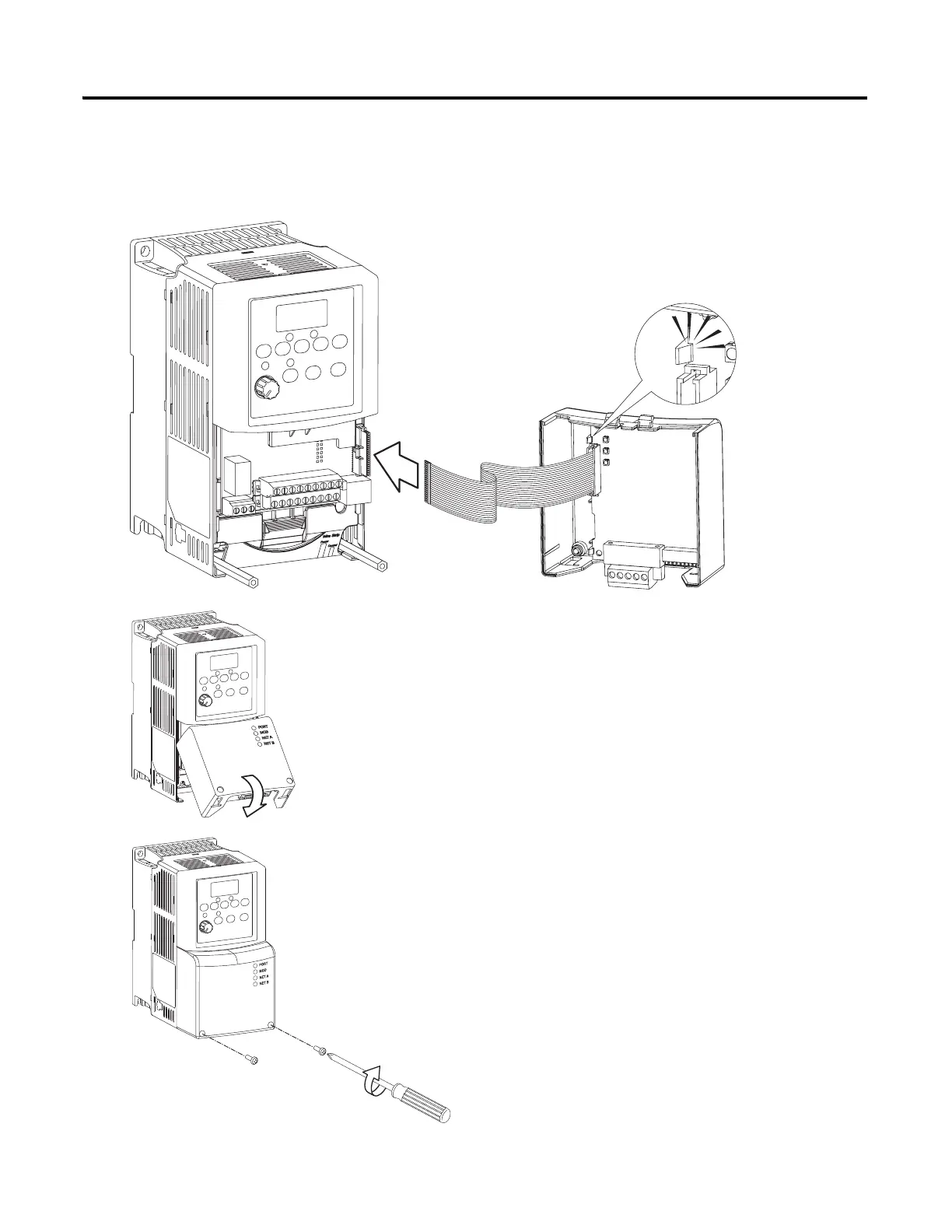

3. Snap the adapter into the cover and connect the cable from the adapter to the
PowerFlex 40 drive.
0.5…0.6 Nm
(4…5 lb-in)

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
