II-8
6
Securely tighten the lock nuts of the anchor bolts to complete the
leveling procedure.

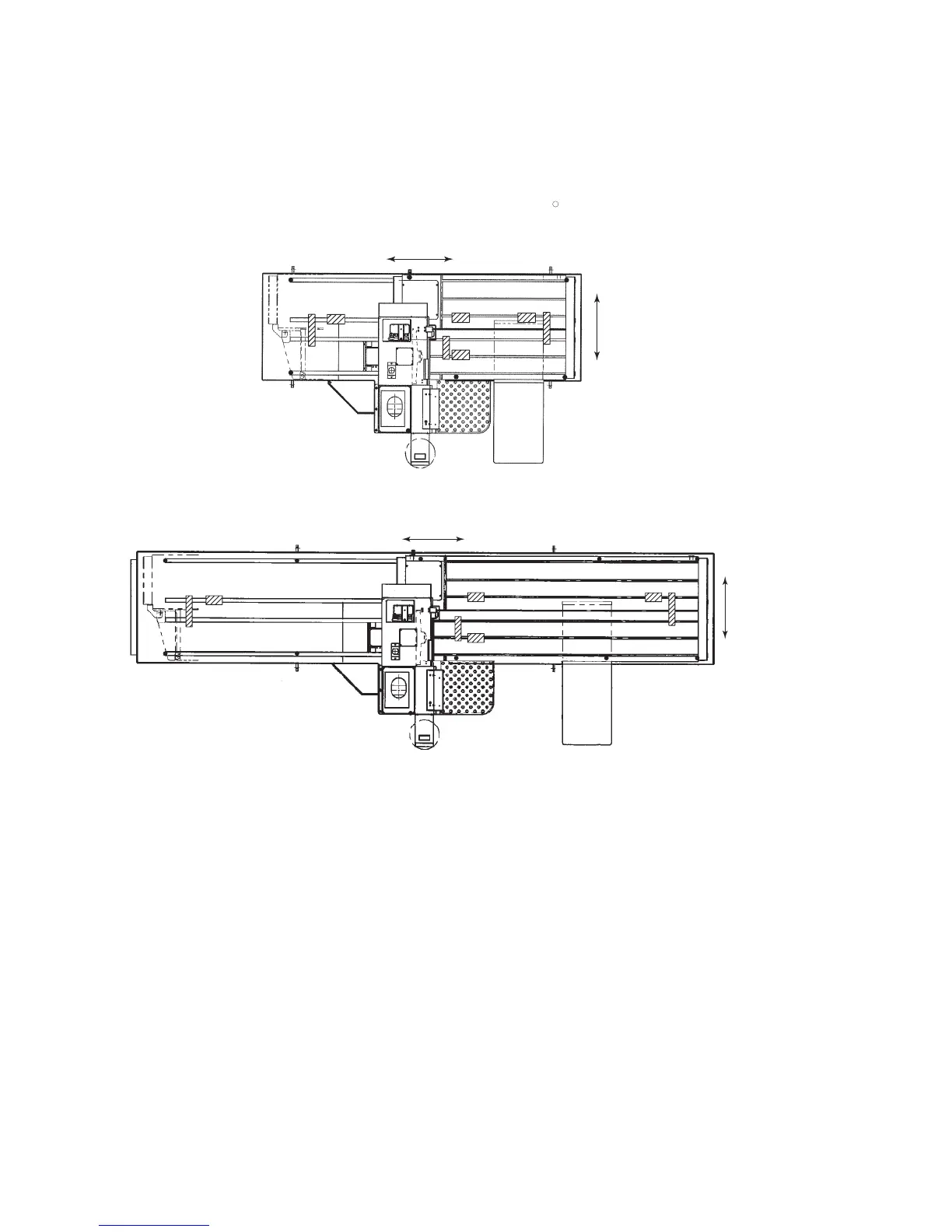

Positions of leveling bolts (marked x)
O VM1200
1 3
2
A B
4
5
6
7
E
F
D C
G
X
Y
O VM2500
1 3
2
A
B
4
5
8
6
7
9
E
F
D
C
G
X
Y
11
10
