Amada vm2500 - Carrying and Handling Procedures

II-5
CARRYING
WARNING
O It is very dangerous for you to carry and
install the machine by yourself. This
machine calls for advanced techniques to
carry and install it. Be sure to ask a
specialized contractor or AMADA to do the
work.
Use a forklift truck or crane to carry the machine to its location.
Carrying with forklift truck

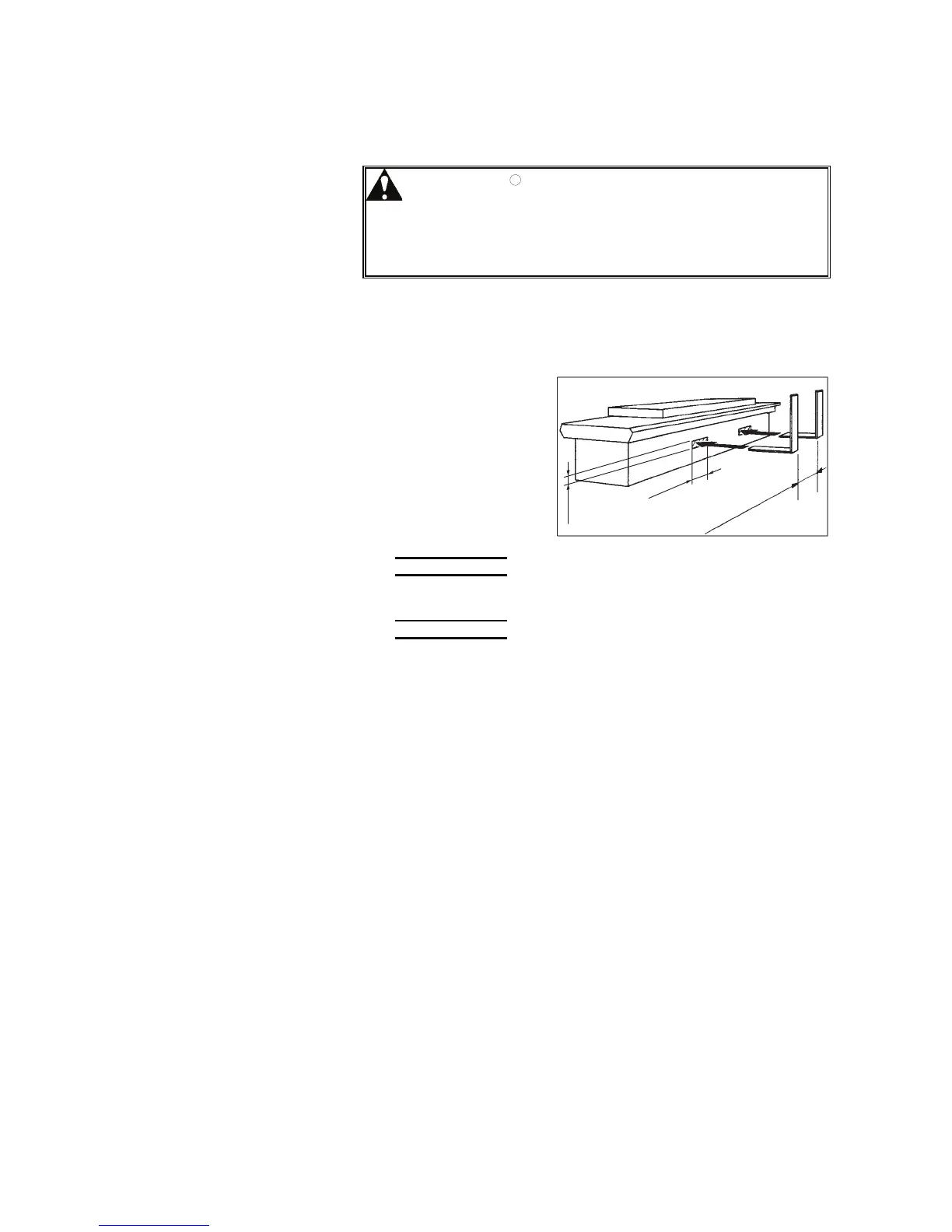

1 Spread the forks of
the forklift truck to an
inside width of 1480
mm {58.3 in.}.
2 Insert the forks 1000
mm {39.4 in.} or more
into the holes in the
machine as shown
right. Lift the
machine.
70 mm
200 mm
SPREAD FORKS TO
INSIDE WIDTH OF
1480 mm {58.3 in.}
OR MORE
{7.9 in.}
{2.8 in.}
NOTICE
O Be sure to use the holes shown above and carefully lift the machine
while balancing it and taking care not to shock it.
NOTE
O The mass of the machine is as follows:
VM1200: 3300 kg {7277 lb}
VM2500: 5500 kg {12128 lb}
