6.8 Trigger System Summary

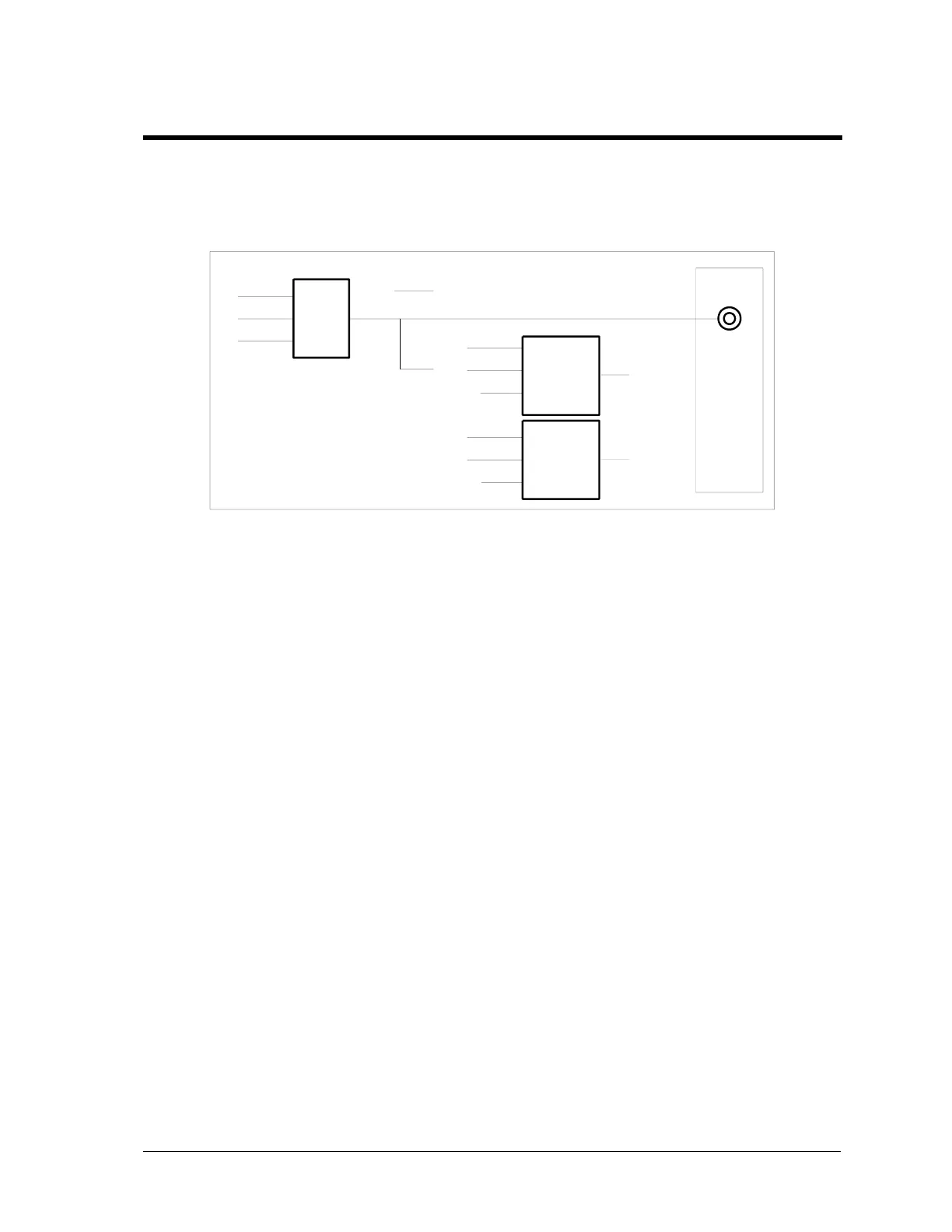

Figure 6-5 shows a functional block diagram of the power source trigger system. If both trigger systems
are initiated at the same time, the Acquisition trigger system will respond to the first trigger generated
while the transient trigger system will respond to the second trigger. Thus, the acquisition has the
highest priority.
Figure 6-5: Trigger system block diagram
BOT
EOT
LIST
OUTP:TTLT:SOUR
TRIGGER
SOURCE
BUS
TTLT
PHASE
ACQUISITION
TIRGGER
SYSTEM
IMM
BUS
PHASE
TRANSIENT
TRIGGER
SYSTEM
TRIG:ACQ:SOUR
TRIG:TRAN:SOUR
MEASUREMENT
TRIGGER
OUTPUT
TRIGGER
OFF
ON
TRIGGER
OUT
Function
Strobe
OUTP:TTLT:STAT
