Enova DGX Audio Insert/Extract Boards
122
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
AIE Board in Right AIE Slot – Extract Function
Audio is extracted by the AIE Board on the output side for use in supplemental audio equipment as well as remaining
intact as HDMI with embedded audio from the output to the destination device.
AIE Boards in Both AIE Slots – Insert and Extract Functions
On left – embedded audio is extracted from standard input side and is sent on for audio processing.
On right – inserted audio replaces embedded audio on HDMI signal and is sent to the destination device.
Note: When audio is routed through a separate Audio Matrix Switcher, the audio can be inserted back into the
original system on multiple audio insert/extract connectors.
Important: When audio is “extracted” from an HDMI signal, the audio also remains intact as embedded audio
on the HDMI signal.

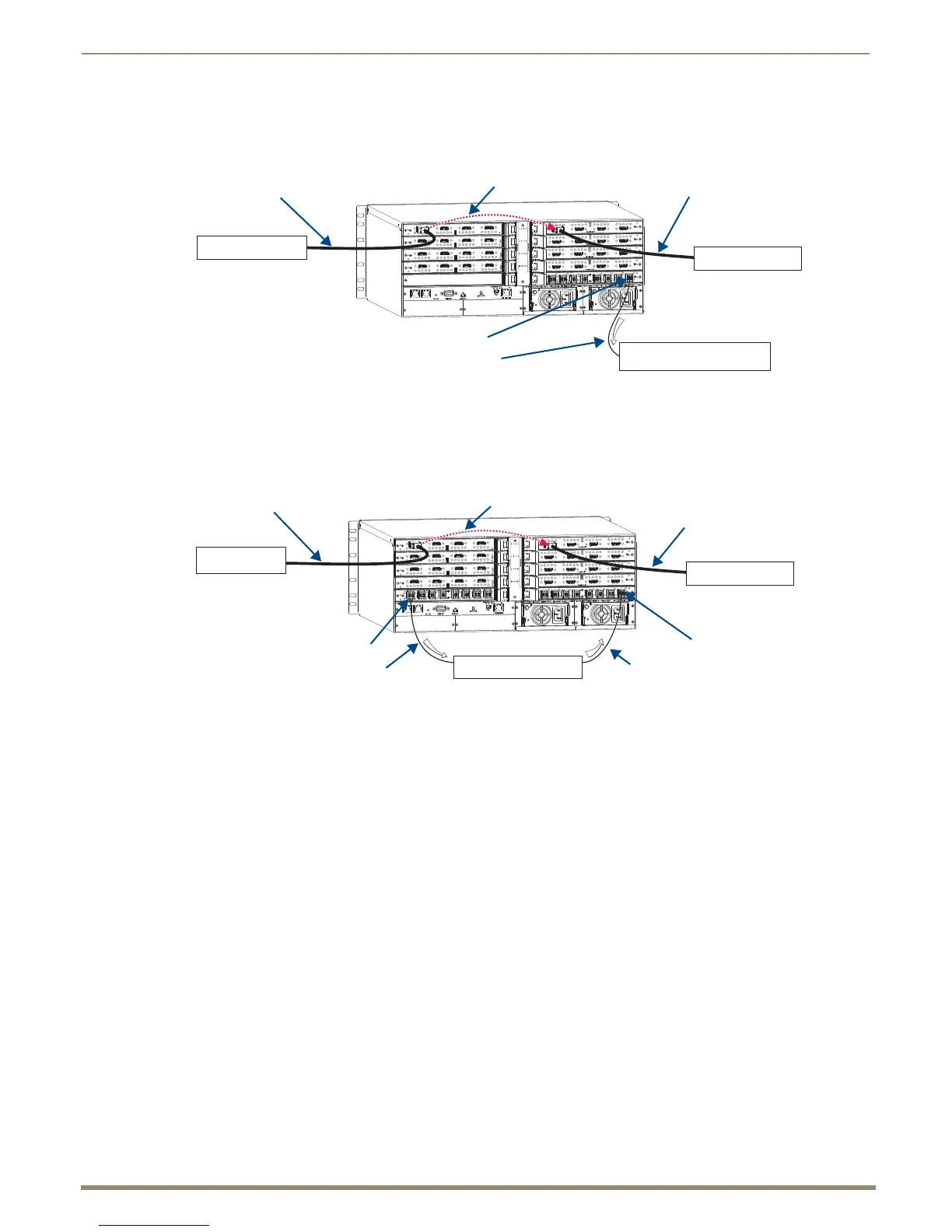

FIG. 71 Audio extracted from HDMI output signal
FIG. 72 Audio extracted from HDMI input signal and inserted onto HDMI output signal(s)
AC
DC
FLT
AC
DC
FLT
Source device
HDMI with embedded audio
Signal through system
Destination device
Amplifier and/or speakers
Analog stereo audio
Audio connector set to “Extract”
HDMI
embedded audio remains intact
AC
DC
FLT
AC
DC
FLT
Source device
HDMI with embedded audio
Signal through system
Destination device
HDMI with embedded audio
replaced by inserted audio
Audio processor
Analog stereo audio
Audio connector set to “Extract”
Audio connector set to “Insert”
Analog stereo audio
