Enova DGX DXLink™ Fiber Boards, Duplex
99
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Enova DGX DXLink™ Fiber Boards, Duplex
Applicability Notice
This chapter pertains to DXLink Fiber Input and Output Boards, Duplex, which handle simultaneous, bidirectional data
transfer. Board models are listed in the table below.
DXLink Fiber Boards, Duplex
DXLink Fiber Boards, Duplex have four input or output connectors per board.
Enova DGX 8
Enova DGX 8 enclosures can hold up to four DXLink Fiber Boards. Each enclosure holds a maximum of two input and
two output boards, accommodating connector configurations up to a maximum of 8x8, as well as three subsets
(i.e., 4x4, 4x8, or 8x4).
Enova DGX 16
Enova DGX 16 enclosures can hold up to eight DXLink Fiber Boards. Each enclosure holds a maximum of four input
and four output boards, accommodating connector configurations up to a maximum of 16x16, as well as subsets
(e.g., 16x8 or 4x12).
Enova DGX 32
Enova DGX 32 enclosures can hold up to sixteen DXLink Fiber Boards with four inputs or outputs per board. Each
enclosure holds a maximum of eight input and eight output boards, accommodating connector configurations up to a
maximum of 32x32, as well as subsets (e.g., 12x24 or 32x8).
Enova DGX 64
Enova DGX 64 enclosures can hold up to thirty-two DXLink Fiber Boards. Each enclosure holds a maximum of sixteen
input and sixteen output boards, accommodating connector configurations up to a maximum of 64x64, as well as subsets
(e.g., 12x48 or 52x8).
Part # Model Name Model Number, Description
FG1058-622 Enova DGX DXLink Multimode Fiber
Input Board, Duplex
ENOVADGX-VI-DXLINK-MMF-D,
ENOVA DGX DXLINK MM FIBER INPUT BOARD, DUPLEX
FG1058-632 Enova DGX DXLink Multimode Fiber
Output Board, Duplex
ENOVADGX-VO-DXLINK-MMF-D,
ENOVA DGX DXLINK MM FIBER OUTPUT BOARD, DUPLEX
FG1058-620 Enova DGX DXLink Single Mode Fiber
Input Board, Duplex
ENOVADGX-VI-DXLINK-SMF-D,
ENOVA DGX DXLINK SM FIBER INPUT BOARD, DUPLEX
FG1058-630 Enova DGX DXLink Single Mode Fiber
Output Board, Duplex
ENOVADGX-VO-DXLINK-SMF-D,
ENOVA DGX DXLINK SM FIBER OUTPUT BOARD, DUPLEX

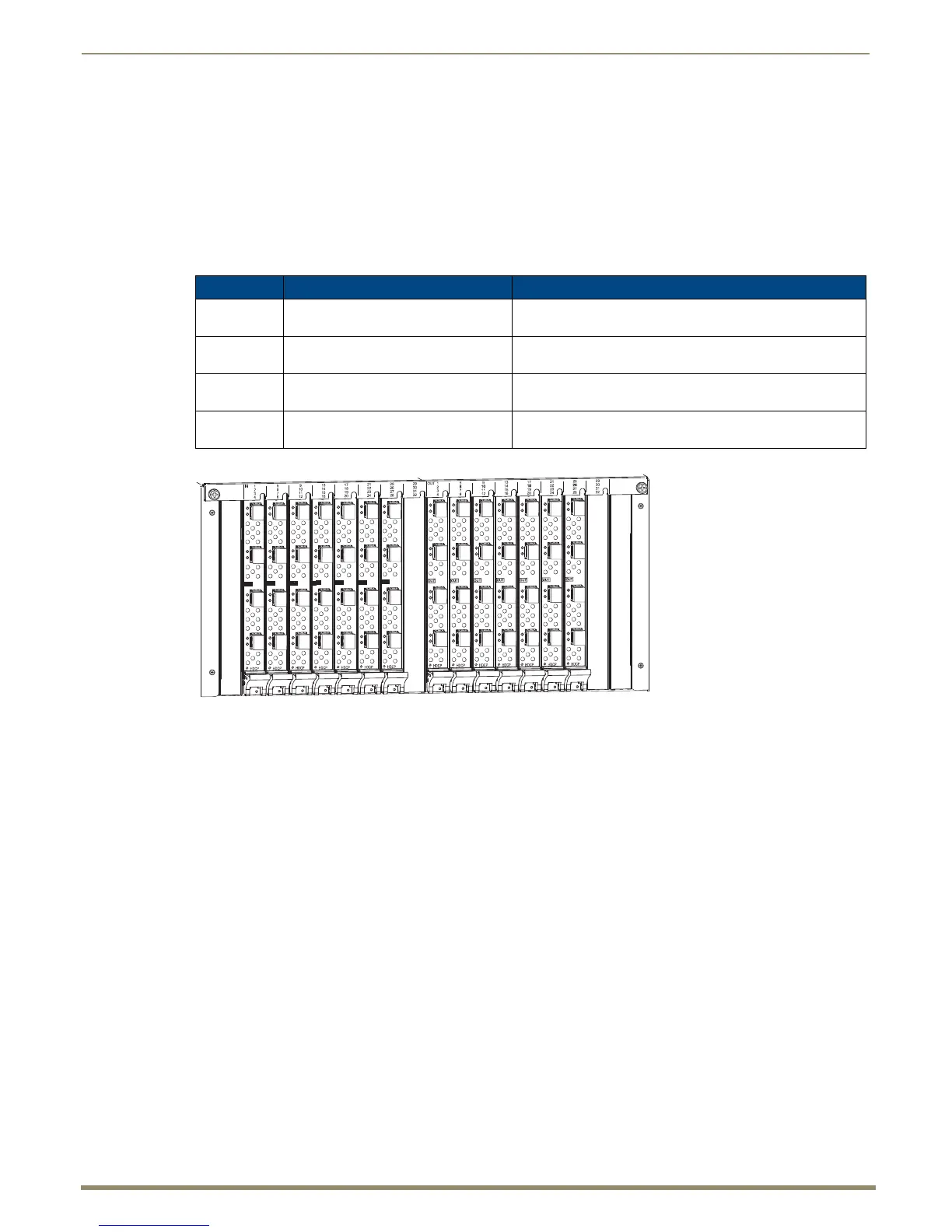

FIG. 54
DXLink Fiber Boards, Duplex (shown in Enova DGX 32 with dust plugs)
