Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Front View
The enclosure, which is the structural basis of an Enova DGX Switcher, can be controlled using the integrated NetLinx
Central Control Processor, standard front control panel, control software, or an external controller.
For additional information on control options, see page 29.
Power Indicator LED on Front of Enclosure
The Power Indicator LED on the front of the enclosure indicates the status of the redundant power system within an
Enova DGX Switcher as follows:
Enova DGX 8/16/32
Green – both power supplies are powered on
Red – one of the power supplies is not receiving power or has failed
Off – neither power supply is receiving power
Enova DGX 64
Green – all four power supplies are powered on
Flashing Red – one of the power supplies is not receiving power or has failed
Constant Red – two (or three) of the power supplies are not receiving power or have failed
Flashing Green – the system’s input/output boards are being upgraded*
Off – none of the power supplies is receiving power
Important: If two or more power supplies in the Enova DGX 64 are not receiving power, the CPU and the
control panel will continue to operate. However, input and output boards will become inoperable and the
system will not send or receive signals until at least three power supplies resume functional status.
* The LED’s response to power functions supersedes the upgrade function.

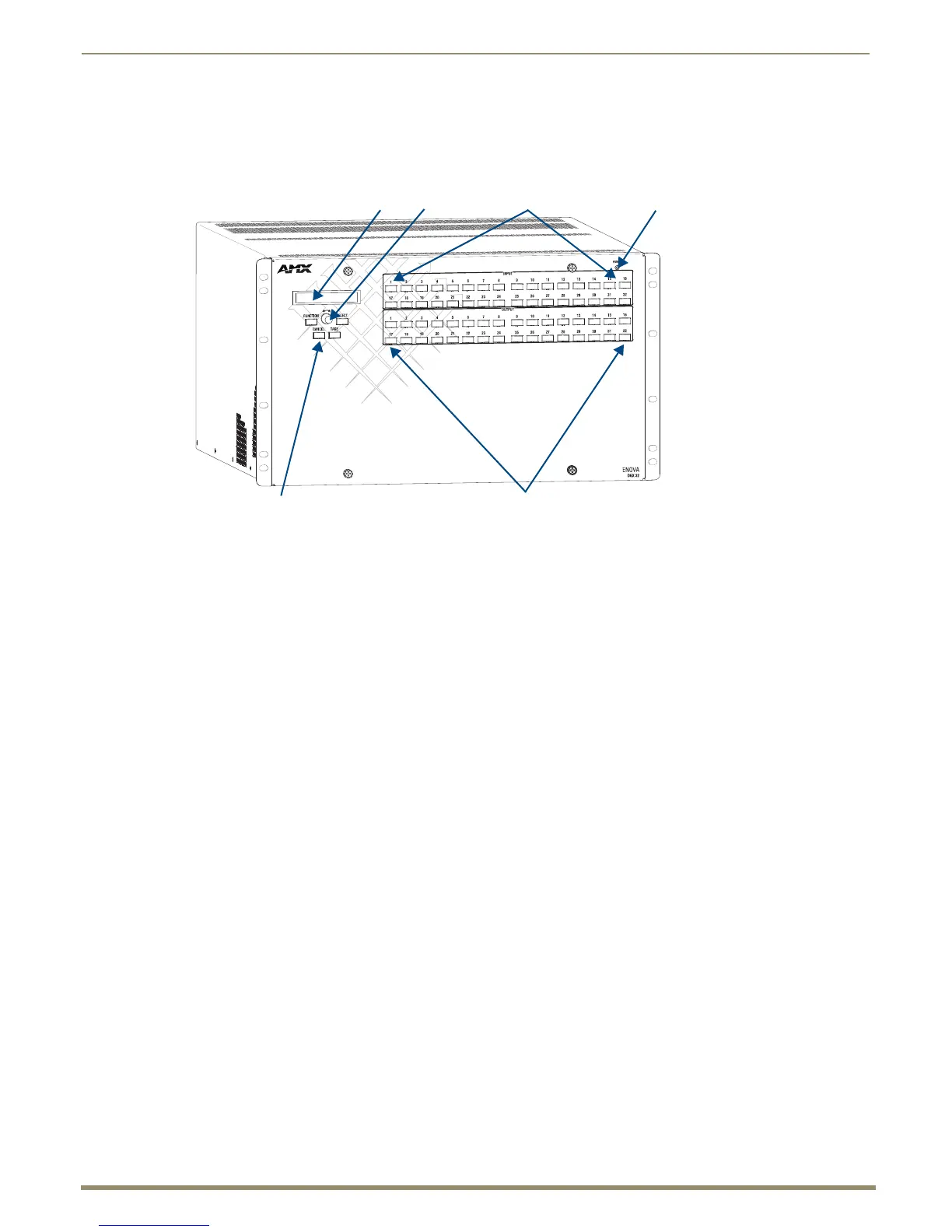

FIG. 2 Front view of an Enova DGX 32 enclosure
LCD Power Indicator LEDControl Dial
Control Keys
Output Keys
Input Keys

AMX Enova DGX 8 Specifications

General

Brand	AMX
Model	Enova DGX 8
Category	Switch
Language	English
