Appendix D – Programmer’s Interface for System Diagnostics
214
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Splash Screen Examples
Note: AMX reserves the right to add to the contents of the splash screen at any time, without notice.
Power-Up Splash Screen
The first example is of the splash screen that displays when power is applied to the enclosure. When “Ready” appears,
BCS commands can be entered for executing switches, verifying status, querying the system for diagnostic information,
etc.
Splash Screens Displaying System Information
Following are five examples of splash screen information from an Enova DGX 16 that could display when different
verbosity/component settings are specified. Depending on the amount of detail provided, you may need to scroll to see
the entire display.
The command in the first example, ~scrv3i1, can be used to check the host software (IOS) version and the hardware
driver (appcode) version.

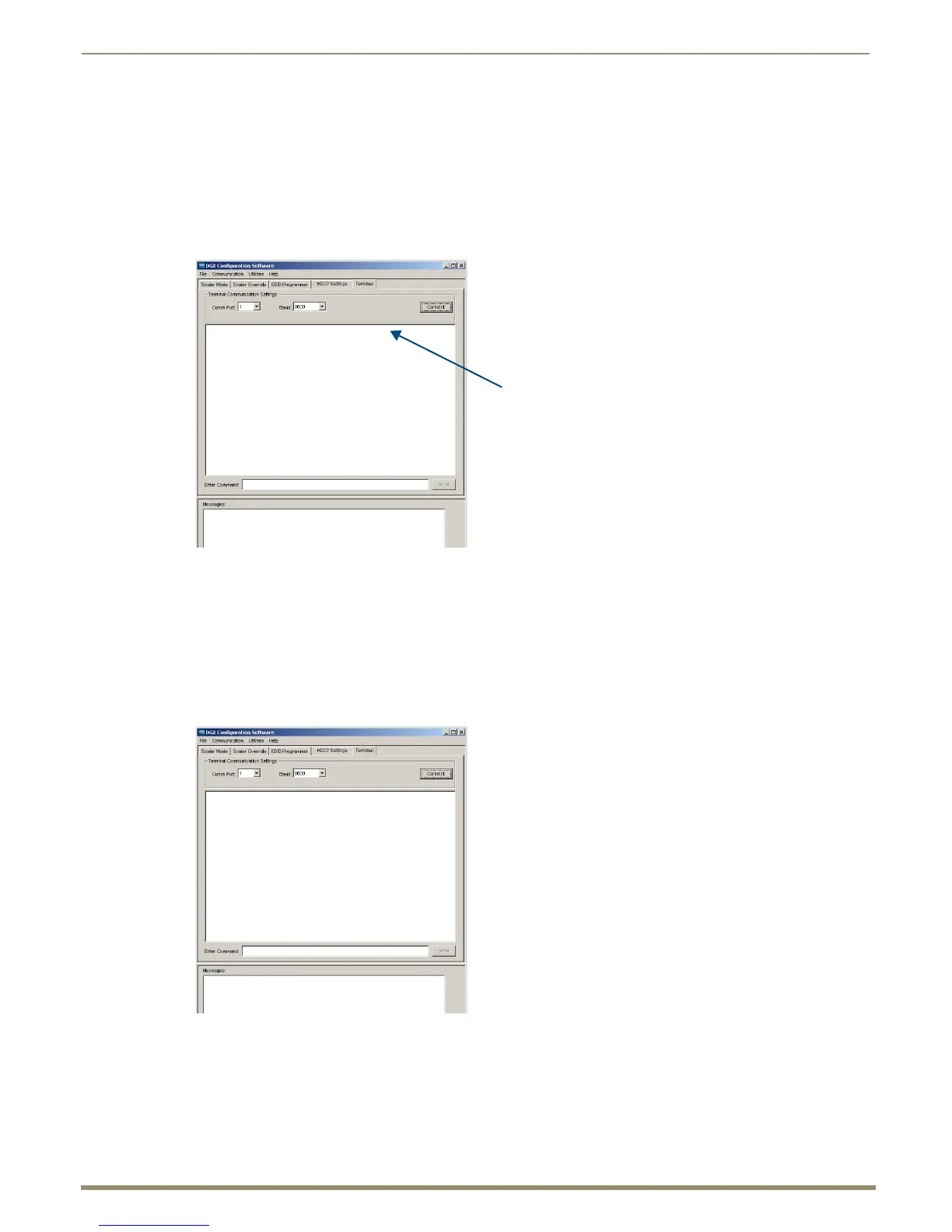

FIG. 118 Power-up splash screen in DGX Configuration Software’s Terminal view
FIG. 119 Display for v3i1 (verbosity 3, component 1)
Firmware version
[1:Enclosure] AMX Enova DGX 16 v1.0.1R
Ready
~scrv3i1!
[1:Enclosure] AMX Enova DGX 16
[host software] v3.6.0
[hardware driver] v1.0.1 R
[build date] July 22 2011 11:29:26
[pld version] A1
[xnet address] 0x11029
[ap system id] 0x0
[nvram status] valid.. user preference restored
[nvram magic] 0xdedafaba
[sysrev id] 1
