Control Panel Operation
139
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Note: Executing a local preset does not change any system routings that are not part of the preset.

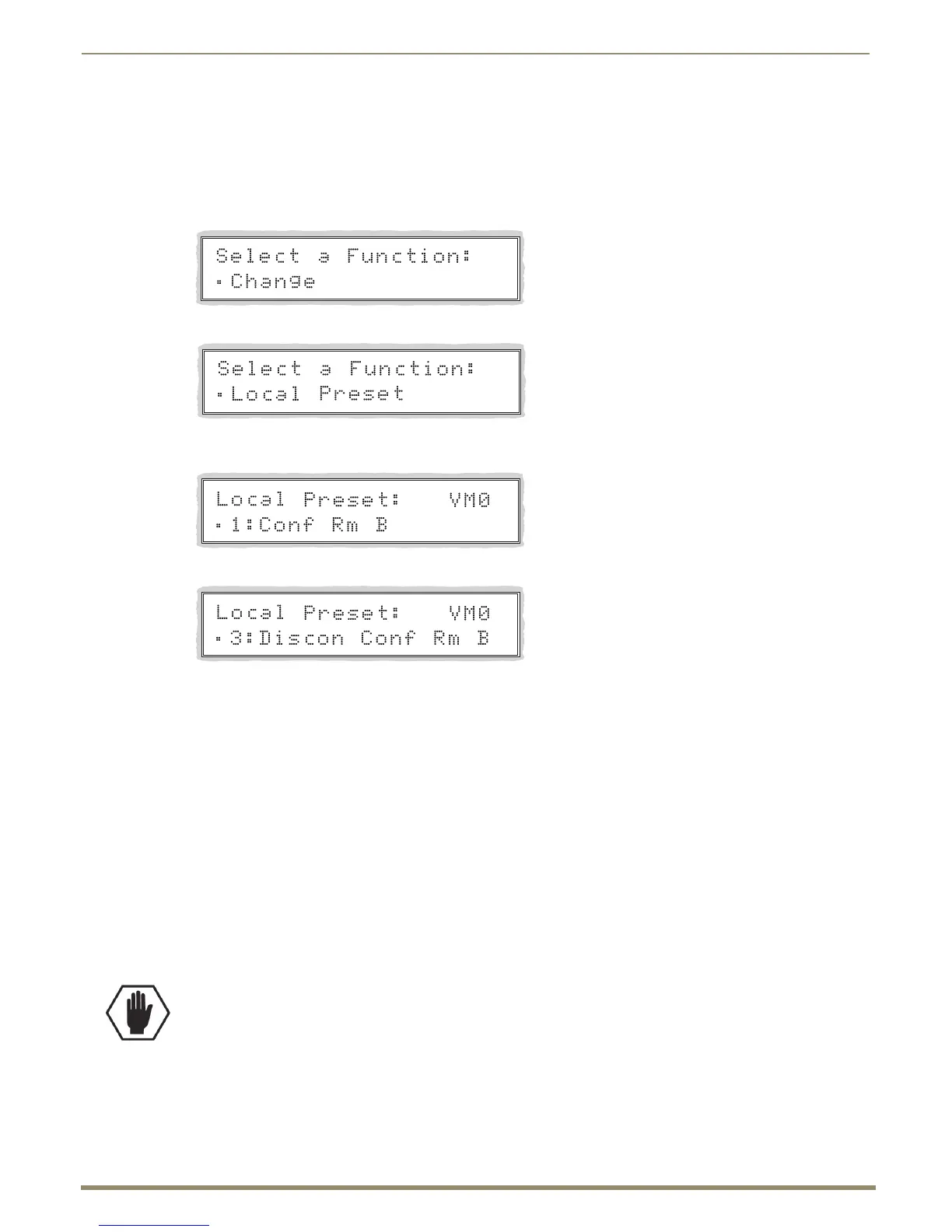

The example below executes Local Preset 3 “Discon Conf Rm B” on VM 0.
To execute a local preset:
1.
Press the Function Key.
The Function menu appears.
2. Locate Local Preset by scrolling with the Control Dial.
3. Press the Select Key.
The Local Preset list appears.
4. Scroll to Local Preset 3.
5. Press either the Select Key or the Take Key.
Local Preset 3 is executed.
6. Execute another local preset.
Or
Press the Function Key to return to the Function menu.
Locking and Unlocking
Locking the Enova DGX Control Panel prohibits access to the system and can prevent accidental switching. While the
panel is locked, BCS commands still work; however, they cannot be used to unlock the panel. The panel remains locked
if the power is cycled.
The password used to lock and unlock the panel consists of a sequence of five input keys. The factory default password
is the first five Input Keys (1-2-3-4-5). A new password can be set using any combination of five keys from Input 1
through Input 8 (for instructions, see page 143).
If the password is lost while the system is locked, contact technical support (see page 69).
Caution: We strongly recommend recording passwords in a secure place; Enova DGX Switchers cannot
retrieve a lost password.
