Enova DGX DXLink™ Twisted Pair Boards

Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers

Serial Data Transfer and IR Flow Control

The illustration in FIG. 53 shows the bidirectional serial data transfer and IR flow control when an Enova Digital Media

Switcher is used with DXLink Modules in Endpoint Mode. The switcher has an integrated NetLinx Central Control

Processor which provides native AMX control at each remote location fed by a DXLink Transmitter or Receiver. Control

is sent over twisted pair cable (via the DXLink ports).

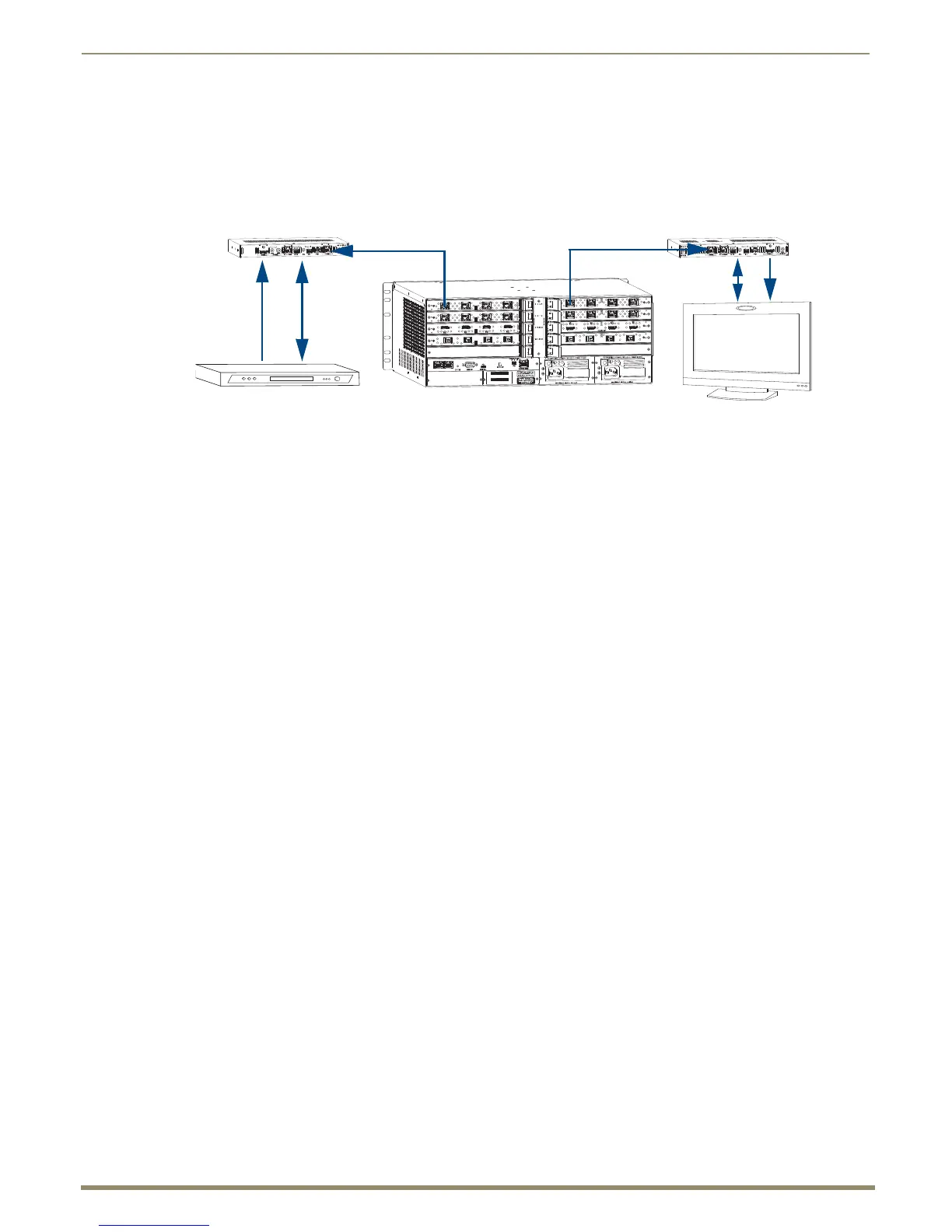

FIG. 53 Serial data transfer and IR flow control

DXLink TX

DXLink RX

Enova DGX 16

DXLink

HDMI

IR and/or

S-232

HDMI

IR and/or

RS-232
