AMX Enova DGX 8

Enova DGX Audio Insert/Extract Boards
128
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Options for Wiring AIE to Balanced Audio Input Device
Standard Wiring
The wiring in FIG. 78 is the standard way to wire an AIE connector to a balanced audio input device.
If Necessary – Wiring to Eliminate Buzzing
The wiring in FIG. 79 can be used if the extracted audio buzzes when connected to a balanced audio input device.

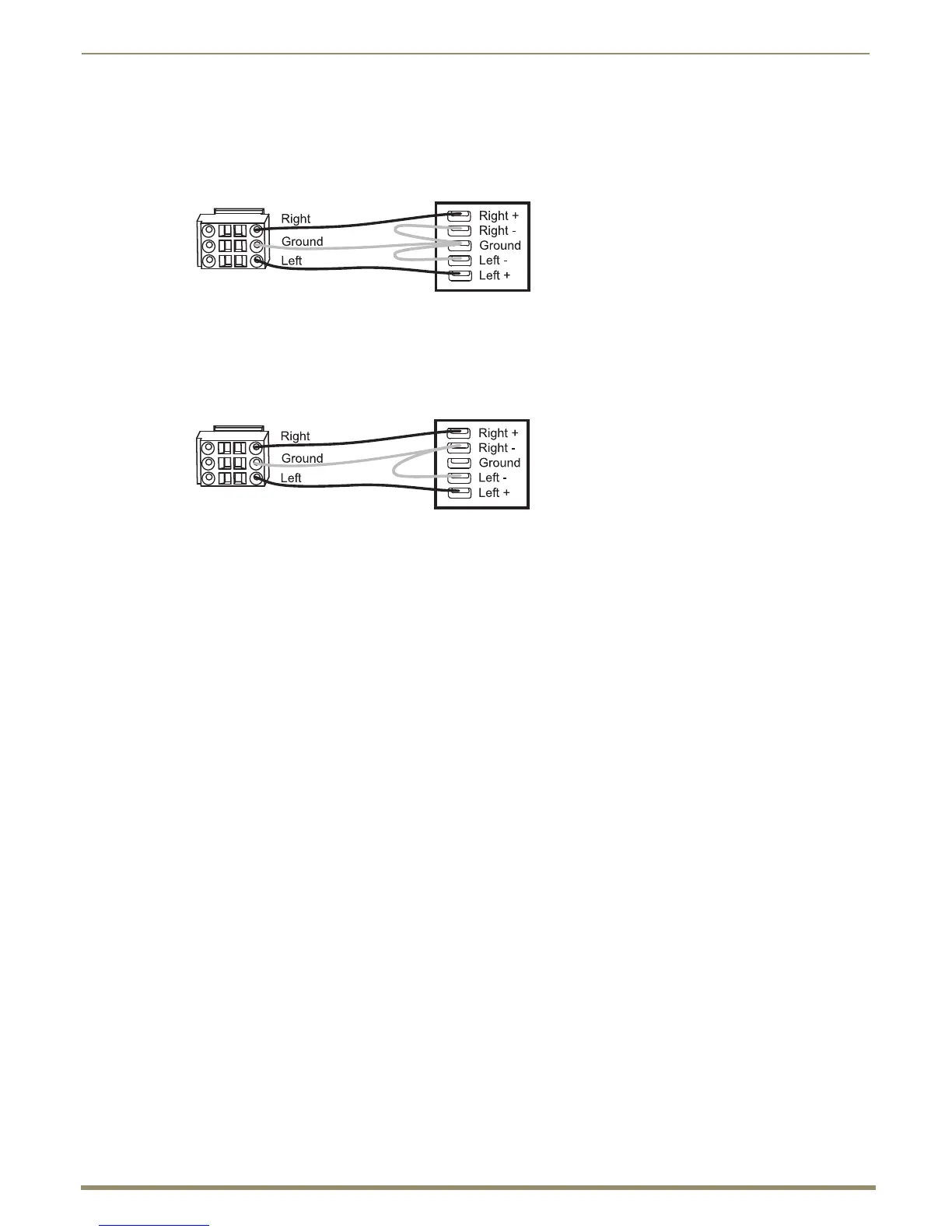

FIG. 78 Standard wiring from AIE to balanced audio input device
FIG. 79 Wiring from AIE to balanced audio input device if buzzing occurs
AIE output
Balanced audio input device
AIE output
Balanced audio input device
