Enova DGX WebConsole Interface
157
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Navigating the XBar Controller
The crosspoint images in the XBar’s crossbar field represent the intersections of the input channels and the output
channels on the switcher (the example below shows an Enova DGX 32).
Use the following features to navigate the XBar:
VM title block – click to open the VM Selection Pad to change the virtual matrix (VM) or update system
status.
Input channels (on left) – indicate the numbers of the source channels.
Output channels (on top) – indicate the numbers of the destination channels.
Blue crosspoint – blue indicates that there is no active signal; click to route the signal (the crosspoint will
remain blue if the switch is not completed).
Red crosspoint – red indicates an actively routed signal; click to disconnect the signal.
Cursor over crosspoint – move the cursor over an I/O pair to display its channel numbers.
Status bar – as crosspoints are selected and deselected, the Status bar displays the corresponding BCS*
(Basic Control Structure) command and indicates when the command is successfully executed.
* For complete information on BCS commands, see the Instruction Manual – BCS Basic Control Structure Protocol at
www.amx.com
.

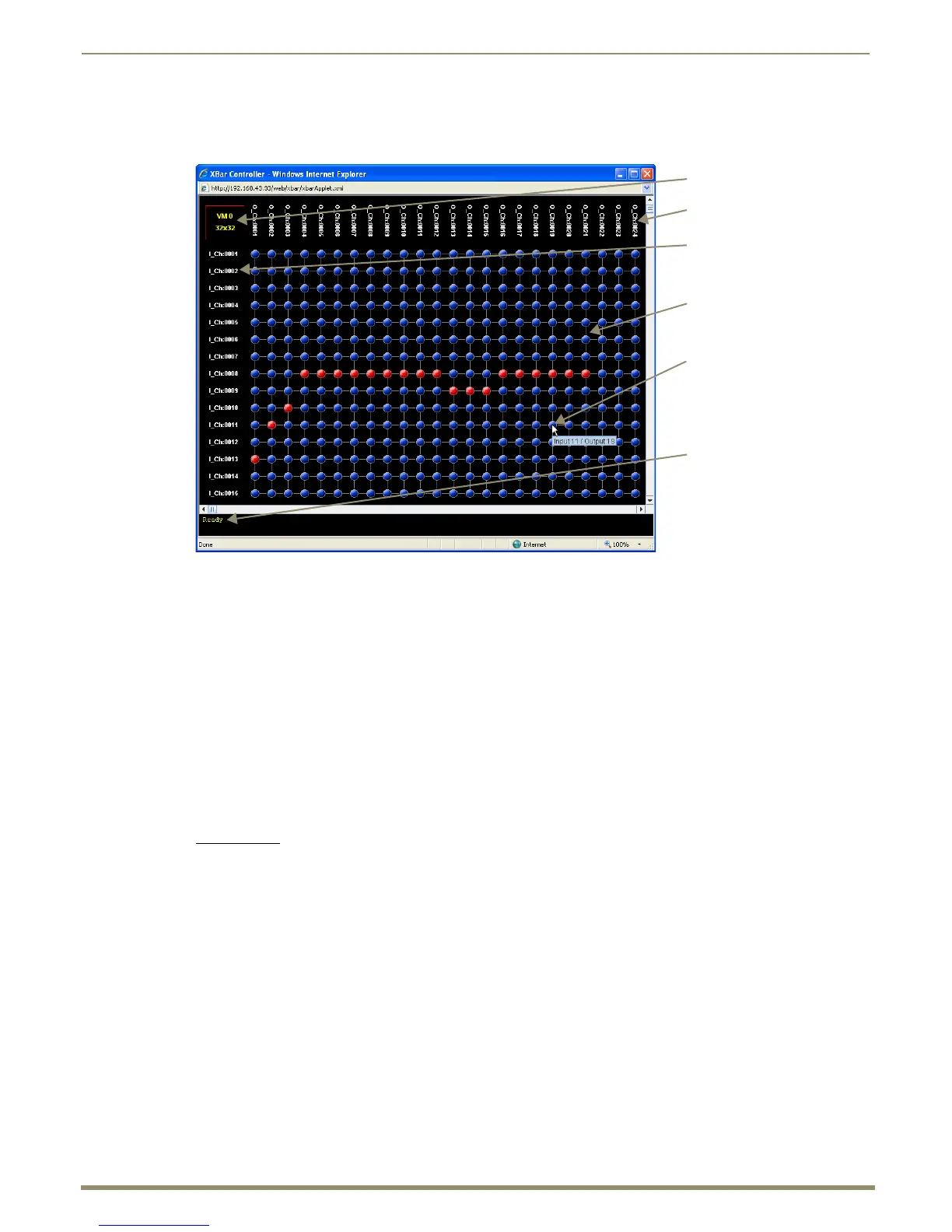

FIG. 96 XBar Controller
Crossbar field with blue
and red crosspoints
Cursor shows crosspoint
I/O pair numbers
VM title block
Output channels
Input channels
Status bar
