Appendix A – DGX Configuration Software
188
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
To send a command to the system:
1.
In the DGX Configuration Software interface, select the Terminal tab.
2. Select and set the Terminal Communication Settings: Comm Port and Baud (rate).
(The default baud rate for the Enova DGX Switcher is 9600.)
3. Click Connect.
4. BCS only – Enter the BCS command in the Enter Command field* and click Send.
DGX_SHELL only – Place the cursor in the response window (large text field). Press CTRL+C to enter the
DGX_SHELL. Type help in the Enter Command field and click Send.** Enter the desired commands.
5. Enter additional commands as necessary.
6. When done, click Disconnect.
* BCS Commands can also be entered directly into the response window (the large text field). After the final character,
press the Enter key.
** Once in the DGX_SHELL, commands can be typed in either field.
To save the current data in the terminal window to a file:
1.
From the File menu, select Save to File (select location, enter file name, and click Save). The file format defaults to
a .txt file.
Tip: Select and copy any or all of the data in the terminal window and then paste it into another program.

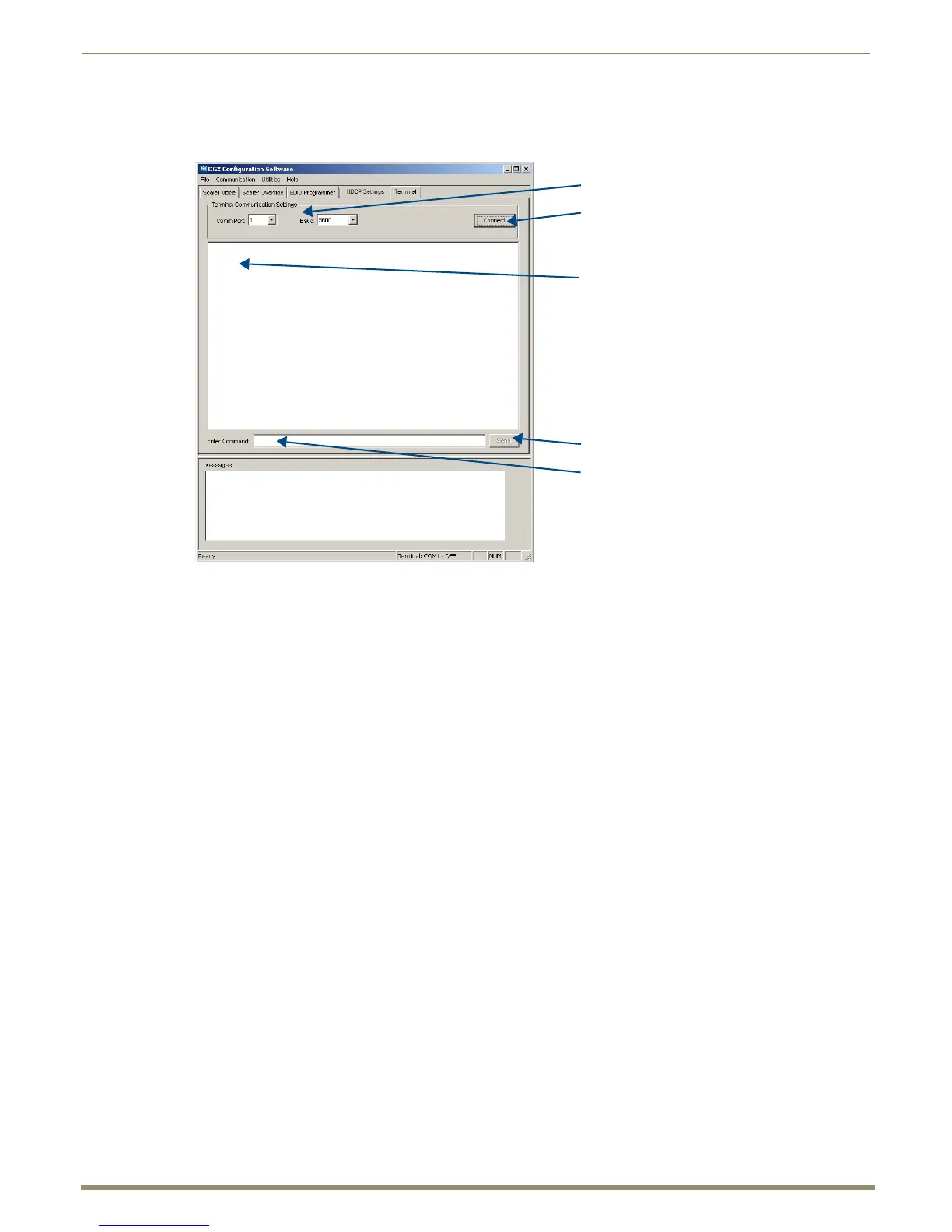

FIG. 111 Terminal view
Connect/Disconnect button
Command field
Displays data in response to commands sent
Send button
Communication Settings
