Appendix B – Managing Configuration Files
196
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Creating Local Presets
A local preset is a predetermined collection of switches on the same virtual matrix to be routed simultaneously.
Executing a local preset affects only those inputs and outputs specified, not the whole system. Local presets are defined
using XNConnect and can be executed using the Control Panel or using BCS commands entered in a terminal emulation
program. The process for creating local presets involves three dialog boxes that cover managing, naming, and modifying
presets.
The Enova DGX Switcher supports a maximum of 64 local presets.
The following instructions are for creating a local preset. For detailed information on modifying and deleting local
presets, see the XNConnect Help file.
To create a new preset:
1.

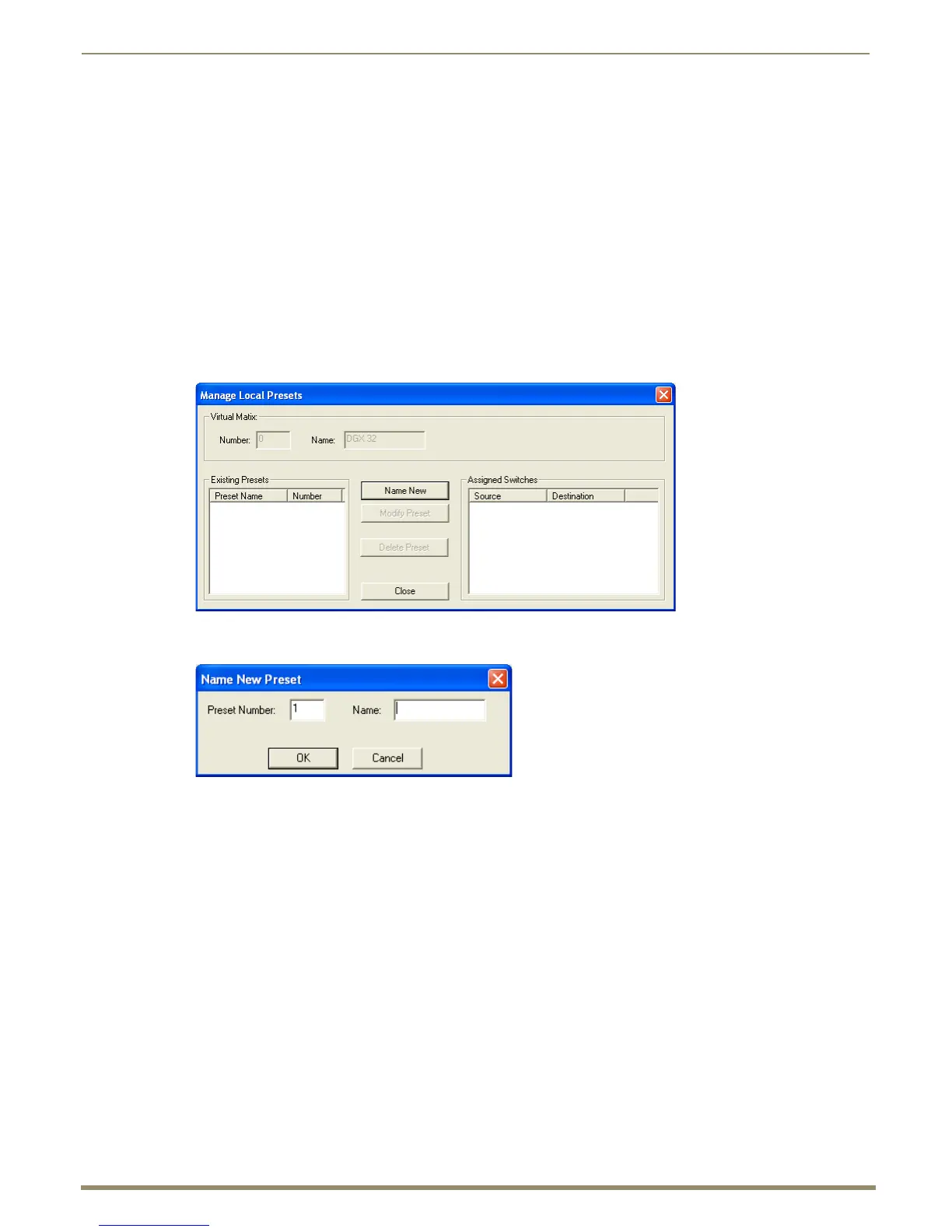

In the Virtual Matrices view, right-click the virtual matrix the preset will be created for and select Manage Local
Presets from the shortcut menu.
The Manage Local Presets dialog box opens.
2. Click Name New.
The Name New Preset dialog box opens.
3. Optional – Enter a different preset number (local presets do not need to be numbered sequentially).
4. Enter a name for the new preset.
5. Click OK.
The Modify Preset dialog box opens.
