AMX Enova DGX 8 User Manual

Product Overview and General Specifications
21
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Enova DGX 16
Enova DGX 16 enclosures have eight horizontal I/O board slots (four slots each for input and output boards with four
connectors each), allowing for a maximum configuration of 16x16.
Enova DGX 32
Enova DGX 32 enclosures have 16 vertical I/O board slots (eight slots each for input and output boards with four
connectors each), allowing for a maximum configuration of 32x32.
Enova DGX 64
Enova DGX 64 enclosures have 32 horizontal I/O board slots (16 slots each for input and output boards with four
connectors each), allowing for a maximum configuration of 64x64.

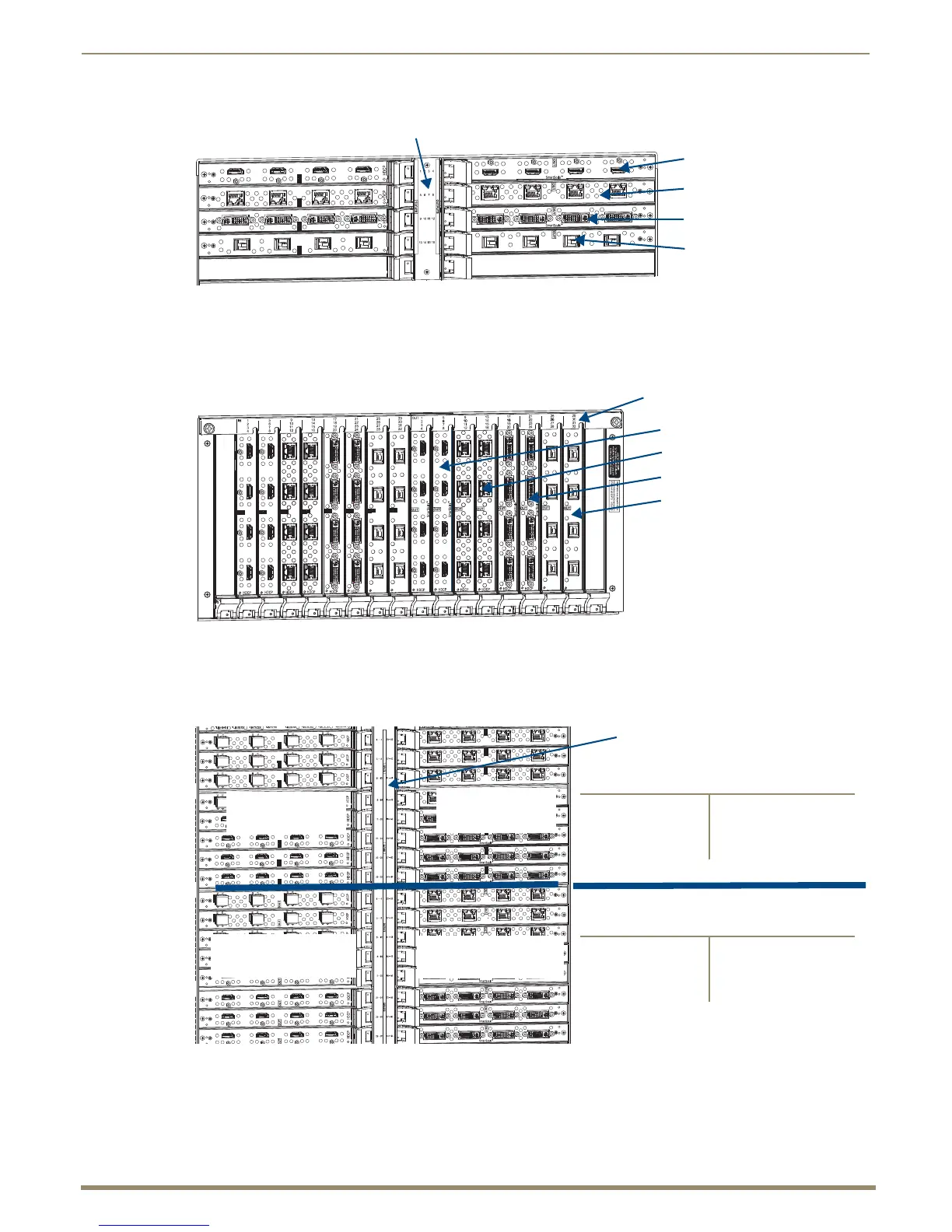

FIG. 10 DGX HDMI, DXLink Twisted Pair, DVI, and DGX SC Optical Input and Output Boards shown
FIG. 11 HDMI, DXLink Twisted Pair, DVI, and SC Optical Input and Output Boards shown
FIG. 12 HDMI, DVI, DXLink Twisted Pair, and DXLink Fiber Input and Output Boards shown
Input boards Output boards
DVI Board
SC Optical Board
Numbering plate
HDMI Board
DXLink Twisted Pair Board
DVI Board
SC Optical Board
Input boards Output boards
Numbering plate
HDMI Board
DXLink Twisted Pair Board
Enova DGX 64
boards
2 DXLink Fiber SM-D
Input boards located in upper 16 board slots
Numbering plate
4 HDMI
2 DXLink Fiber MM-D
Output boards
located in lower 16 board slots
4 DXLink Twisted Pair
4 DVI
8 Left 8 Right
2 DXLink Fiber SM-D
4 HDMI
2 DXLink Fiber MM-D
4 DXLink Twisted Pair
4 DVI
8 Left 8 Right
Inputs
Inputs
Outputs
Outputs
