Installation and Setup
44
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
3. Plug power cords into all of the power receptacles (two or four depending on the system) on the enclosure.
4. Plug the other end of each power cord into its power source (if using a power strip, turn on the power strip).
5. Wait 30 seconds.
The Power indicator LED on the Front Panel illuminates green (showing that all redundant power supplies are
working). (The LCD on the Control Panel also illuminates and displays the menu screen.)
Enova DGX 8/16/32 – if one power supply is not working, the Power indicator will be a constant red
(check power connections and switches).
Enova DGX 64 – if one power supply is not working, the Power indicator will flash red; if two or three
power supplies are not working, the Power indicator will be a constant red (check power connections and
switches).
6. Optional – Apply power to a control device/system.
7. For systems with DXLink Fiber Boards – Apply power to the DXLink Fiber TX and RX.
8. For systems with SC Optical Boards – Apply power to the DGX TX and RX Fiber Modules.
9. Apply power to the source and destination devices.
10. Disconnect the factory default switch and execute a test switch (see page 56).
11. Attach the remaining sources and destinations and apply power to them.
Important: Whenever the system is powered down, be sure the indicator LEDs on the CPU are off and the
fans have stopped before reapplying power.

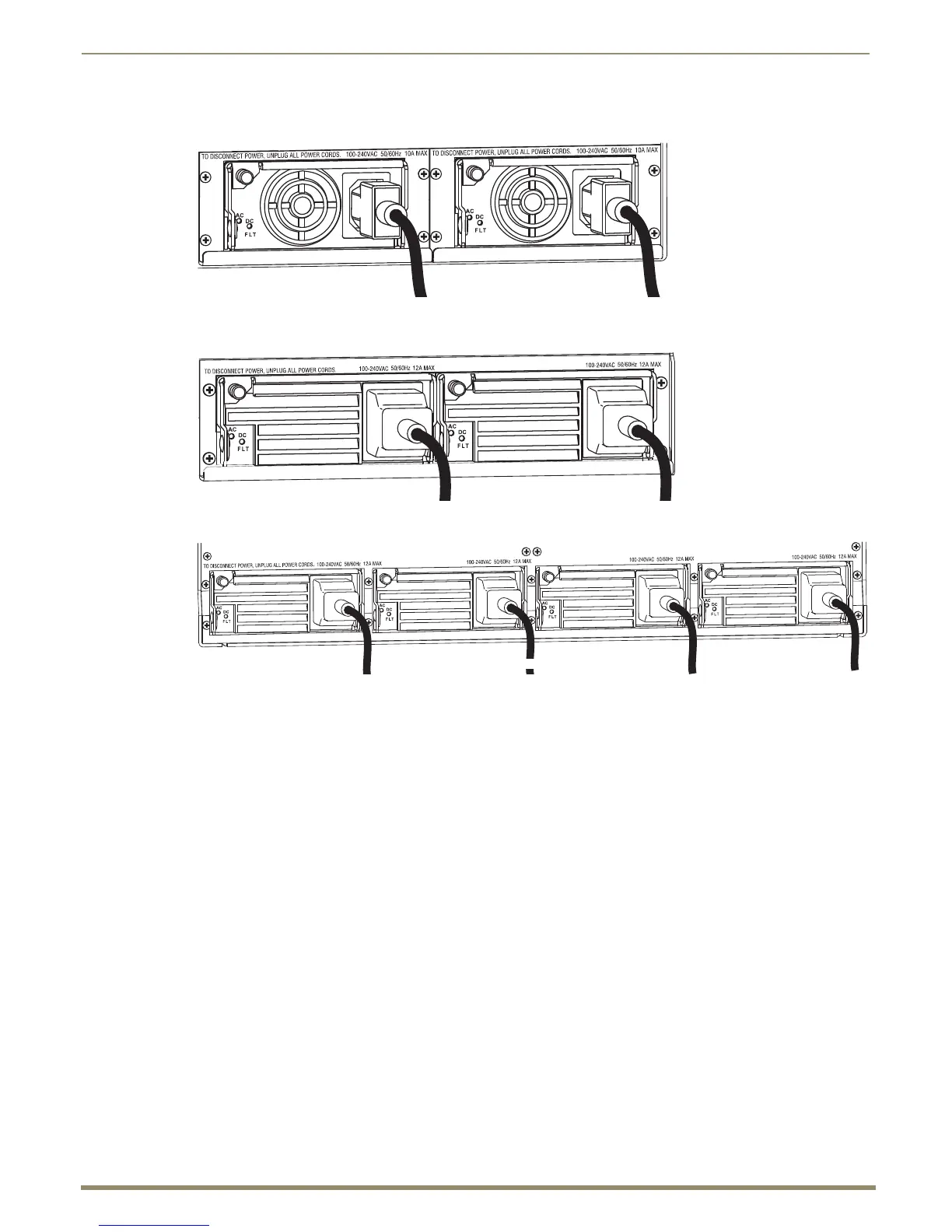

FIG. 24 Attach power cables to both power receptacles (Enova DGX 8/16 shown)
FIG. 25 Attach power cables to both power receptacles (Enova DGX 32 shown)
FIG. 26 Attach power cables to all four power receptacles (Enova DGX 64 shown)
Enova DGX 8/16 power supplies
Enova DGX 32 power supplies
Enova DGX 64 power supplies
