Installation and Setup
49
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
T568B
The following table lists the pinouts, signals, and pairing for the Ethernet connector when wired for straight-through
cable according to T568B.

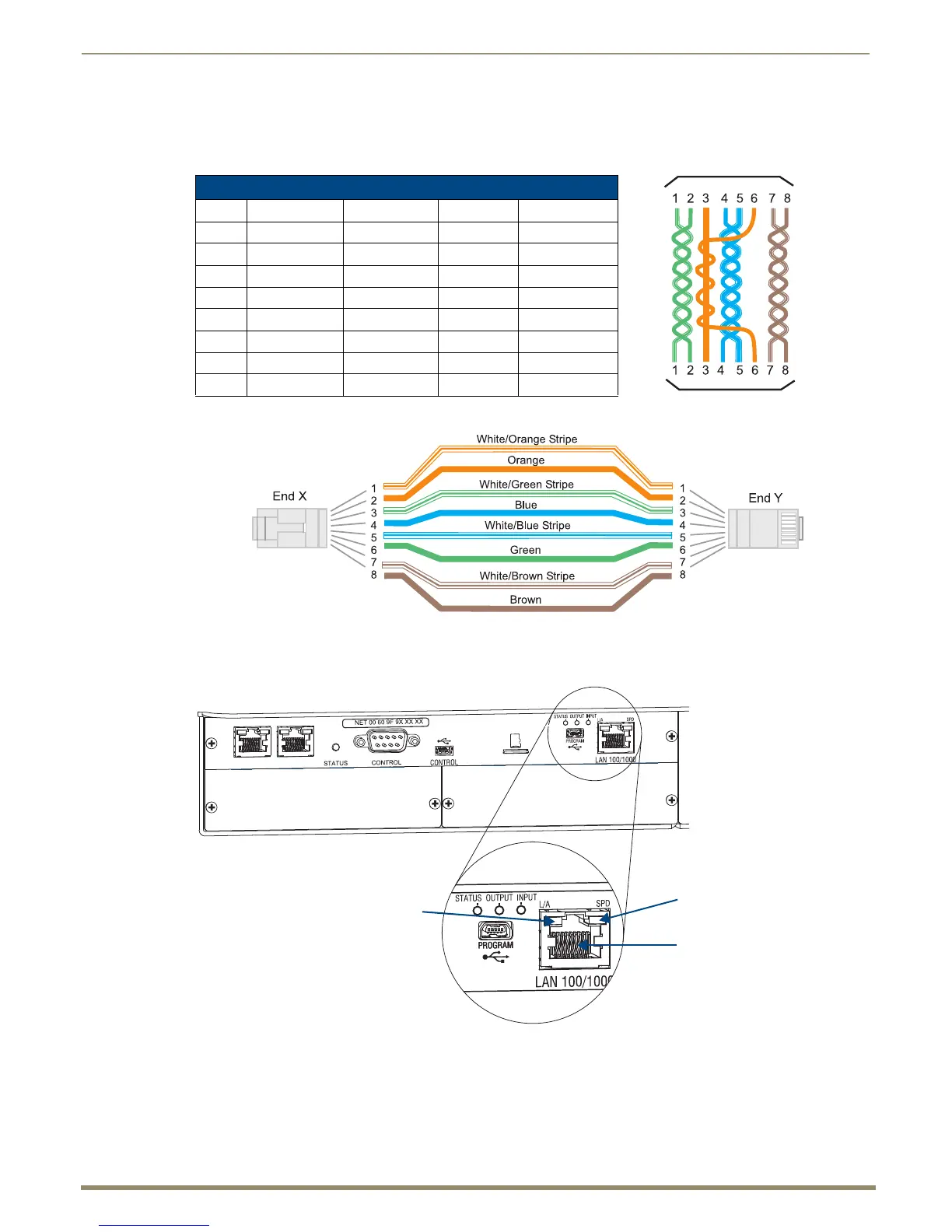

FIG. 30 shows the connections for Ethernet RJ-45 connector/cable per T568B.
LAN 100/1000 Indicator LEDs
The LAN 100/1000 (RJ-45) port is an Ethernet link connector, handling Ethernet 10/100/1000 connections for 1000
Mbps (megabits per second), 100 Mbps, and 10 Mbps. This connection is compatible with most Ethernet based LANs.
T568B
Pin Signals Connections Pairing Color
1 TX+ 1 --------1 1 --------2 Orange - White
2 TX- 2 --------2 Orange
3 RX+ 3 --------3 3 --------6 Green - White
4 No connection 4 --------4 Blue
5 No connection 5 --------5 Blue - White
6 RX- 6 --------6 Green
7 No connection 7 --------7 Brown - White
8 No connection 8 --------8 Brown
FIG. 30
RJ-45 connections per T568B
FIG. 31 LAN 100/1000 port and LED indicators
LAN 100/1000 port
L/A (green) LED
SPD (yellow) LED
T568A Pairing
