COMBIFIT installation, use and maintenance manual
GB
as required by the regulations in force. You can ensure the electrical
safety of the appliance only in the presence of a compliant electrical
system.
Before wiring, check the voltage and frequency of the power grid
to ensure that they comply with appliance rated values given on the
technical data plate ().
For direct connection to the mains, you should placed between the
appliance and the network a device, sized according to the load, which
ensures disconnection.
Its contacts should have a
minimum opening distance
that enables complete
disconnection under the
conditions of overvoltage
category III, according to
installation rules; this device
should also be located so
that it can be easily used by
the operator at any time.
which the power plug will
be connected, to position 0
(zero). Make the socket cable
staff to make sure it suits
the the power absorbed by
the device.
You need to open the top
compartment by loosening
the fastening screws ()
and connect the appropriate
cable to the power terminal
block. Refer to the table on
the next page ().
-
nection refer to the wiring
diagrams annexed to this
manual.
Insert the power cord into
the hole of the cable gland
located on the left bottom
side of the oven.
Connect the cable to the
terminal block following the
instructions given in .

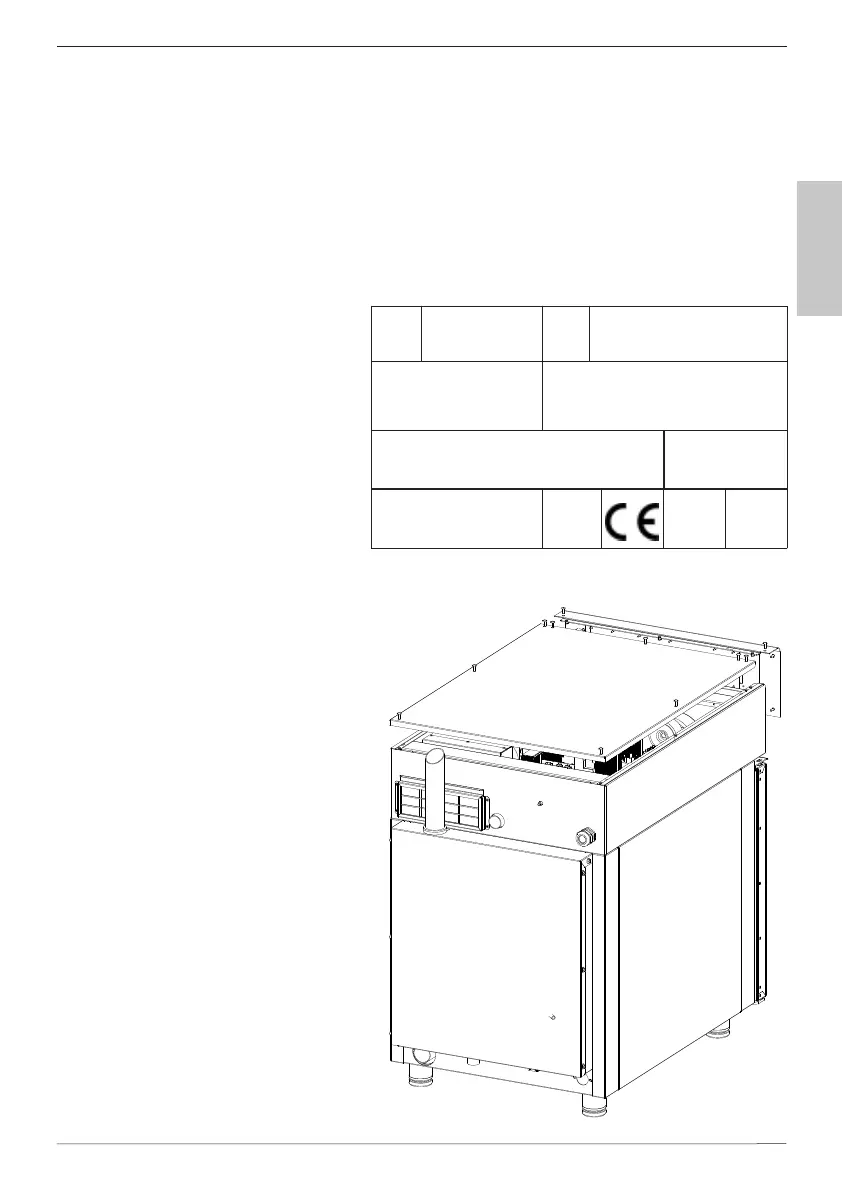

Fig. 6
MOD
NR
KXXXXX
XXXXXX/XX/XX
POWER SUPPLY
400V 3N 50 Hz
TOT POWER kW
7,9
IP
OVEN POWER kW
6,6
To Next Page
