Anritsu MP8931A - Page 102

Section 5 Remote Control
5-22

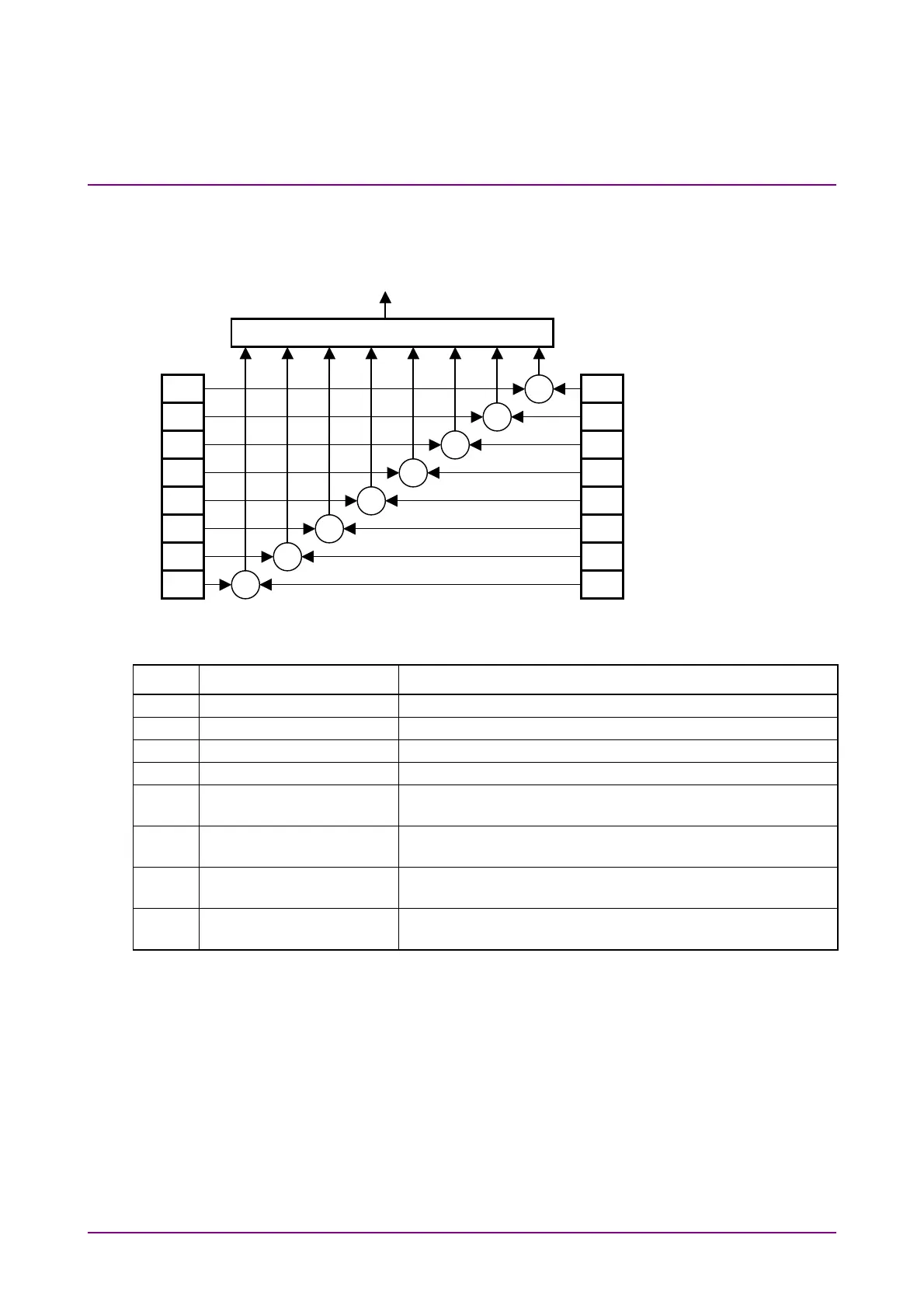

(4) Extended END event status register
Extended END event status enable registe
r
Extended END event status register
7
6
Logical OR
5
4
3
2
1
0
7
6
5
4
3
2
1
0
&
&
&
&
&
&
&
&
Status byte register
Set to END bit
Measurement end by the user
Measurement end by time
Measurement end by count
Measurement end by overflow
Not used
Not used
Not used
Not used
Bit Event name Description
7 Not used Always 0.
6 Not used Always 0.
5 Not used Always 0.
4 Not used Always 0.
3
Measurement end by
Over Flow
Set when measurement is completed by Over Flow detec-
tion.
2
Measurement end by
count
Set when measurement is completed by measurement
count reached to full.
1
Measurement end by
time
Set when measurement is completed by measurement
time reached to full.
0
Measurement end by the
user
Set when measurement is completed by pressing [Stop]
key or receiving measurement stop command.
