5.4 Device Message
5-21

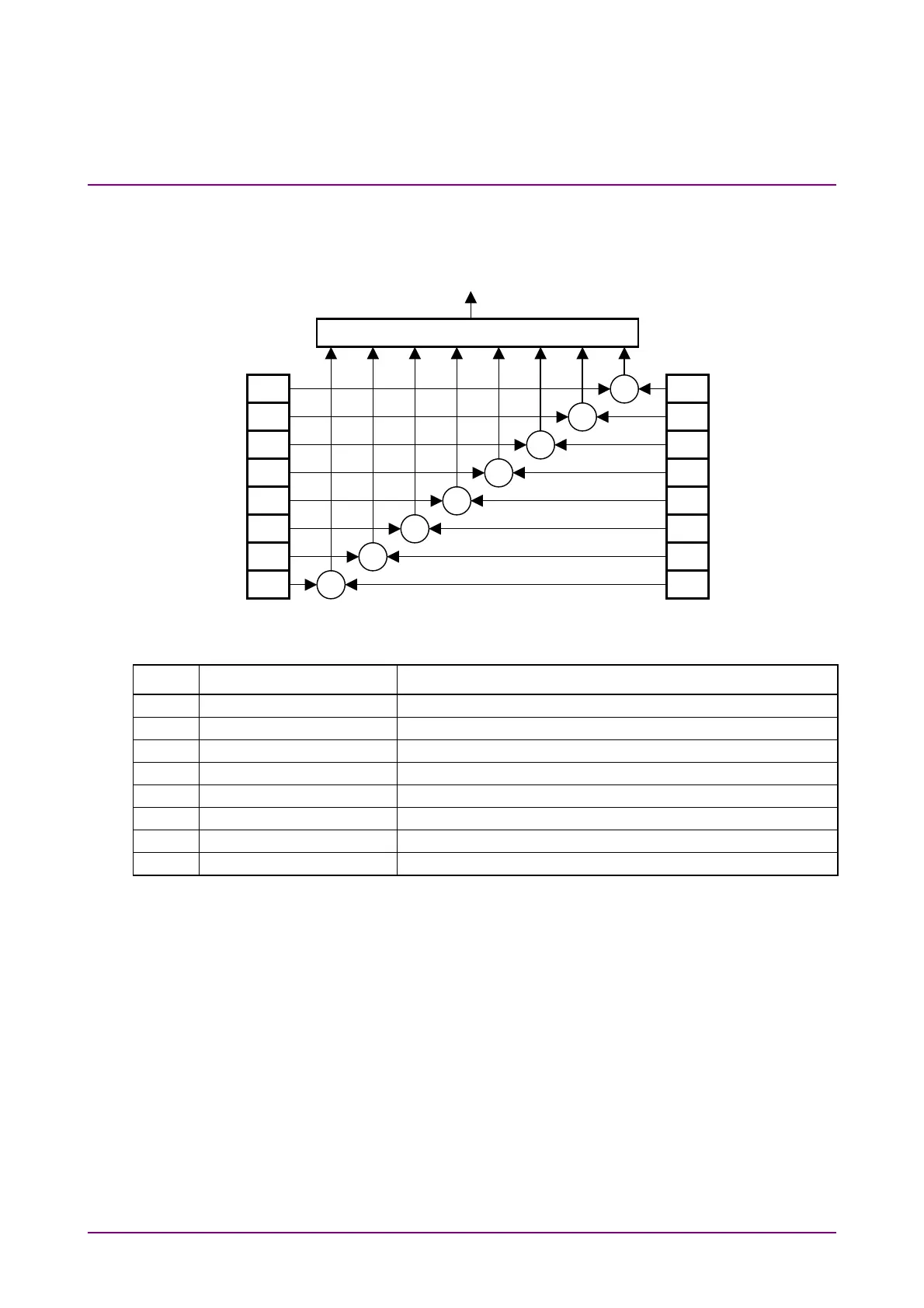

(3) Extended STA event status register
Extended STA event status enable register Extended STA event status register
7
6
Logical OR
5
4
3
2
1
0
7
6
5
4
3
2
1
0
&
&
&
&
&
&
&
&
Status byte register
Set to STA bit
Errors
Sync Loss
Over Flow
Signal Loss
Not used
Not used
Not used
Not used
Bit Event name Description
7 Not used Always 0.
6 Not used Always 0.
5 Not used Always 0.
4 Not used Always 0.
3 Signal Loss Set when Signal Loss is detected during measurement.
2 Over Flow Set when Over Flow is detected during measurement.
1 Sync Loss Set when Sync Loss is detected during measurement.
0 Errors Set when errors are detected during measurement.
