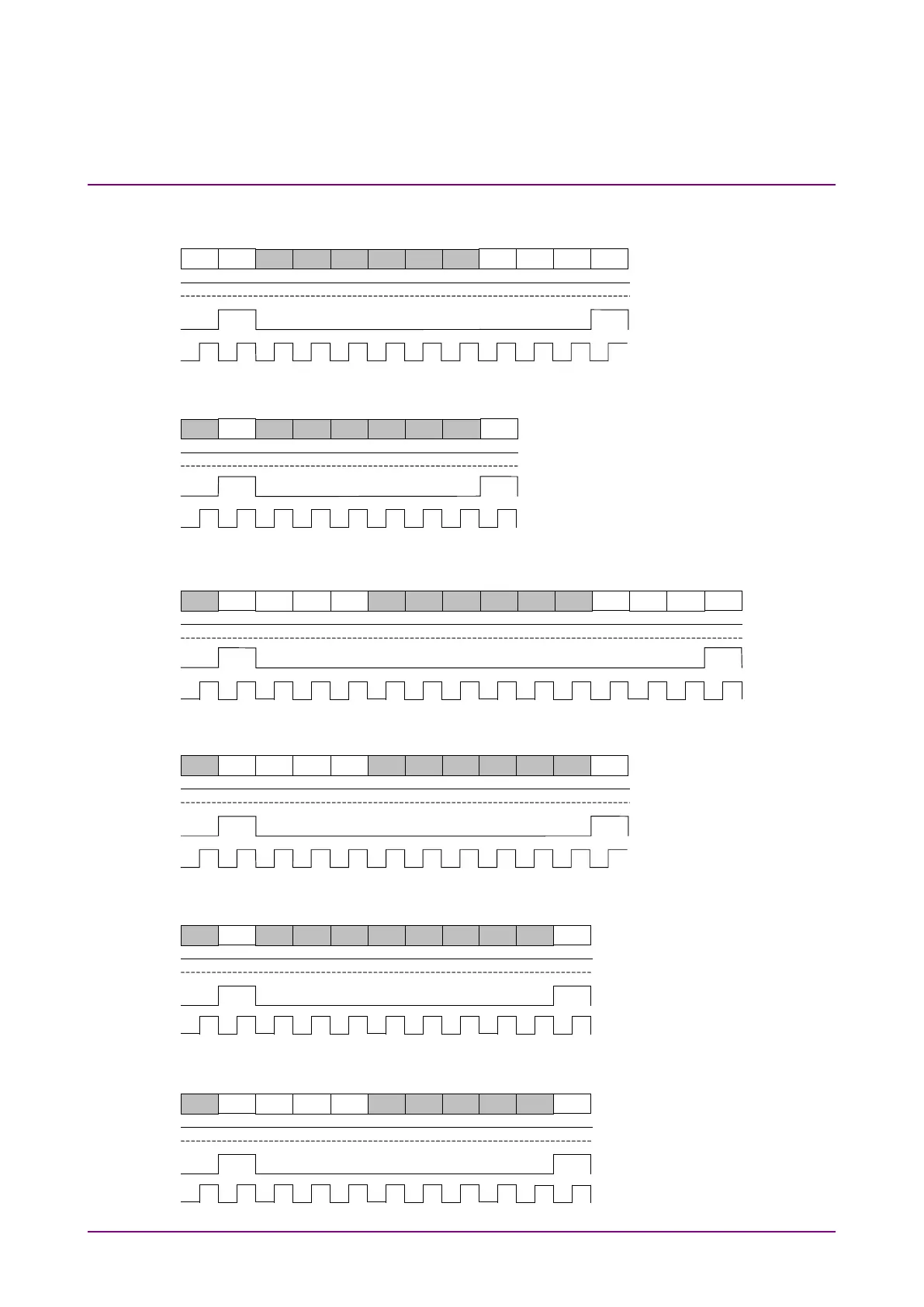

Timing
[1] When 187 bytes of 204-byte packet are measurement target: (1)+187+(16)
p16
sync
1
2
186
187
p
…
p16
sync
Data [7:0]
Dvalid
Psync
Clock
[2] When 187 bytes of 188-byte packet are measurement target: (1)+187
187
sync
1
2
186
187
sync
Data [7:0]
Dvalid
Psync
Clock
[3] When 184 bytes of 204-byte packet are measurement target: (1+3)+184+(16)
184
sync
PID1
PID2
PID3
1
2
Data [7:0]
Dvalid
Psync
Clock
183
184
p1
…
p16
sync
[4] When 184 bytes of 188-byte packet are measurement target: (1+3)+184
184
sync
PID1
PID 2
PID3
1
2
183
184
sync
Data [7:0]
Dvalid
Psync
Clock
[5] When 203 bytes of 204-byte packet are measurement target: (1)+203
203
sync
1
2
202
203
sync
Data [7:0]
Dvalid
Psync
Clock
[6] When 200 bytes of 204-byte packet are measurement target: (1+3)+200
200
sync
PID1
PID2
PID3
1
2
199
200
sync
Data [7:0]
Dvalid
Psync
Clock
