3-13 DVB-T/H Signal Analyzer (Options 64 and 57) Verification Performance Verification 2
3-80 PN: 10580-00177 Rev. D MS2721B MM
Procedure:
1. Ensure that the Power Amplifier is OFF.
2. Connect the MG3700A Signal Generator, Power Amplifier with N(f)-to-BNC(m) adapters, RF Limiter,
MN63A Programmable Attenuator, Power Divider, Power Meter, and Power Sensors as shown in
Figure 3-21.

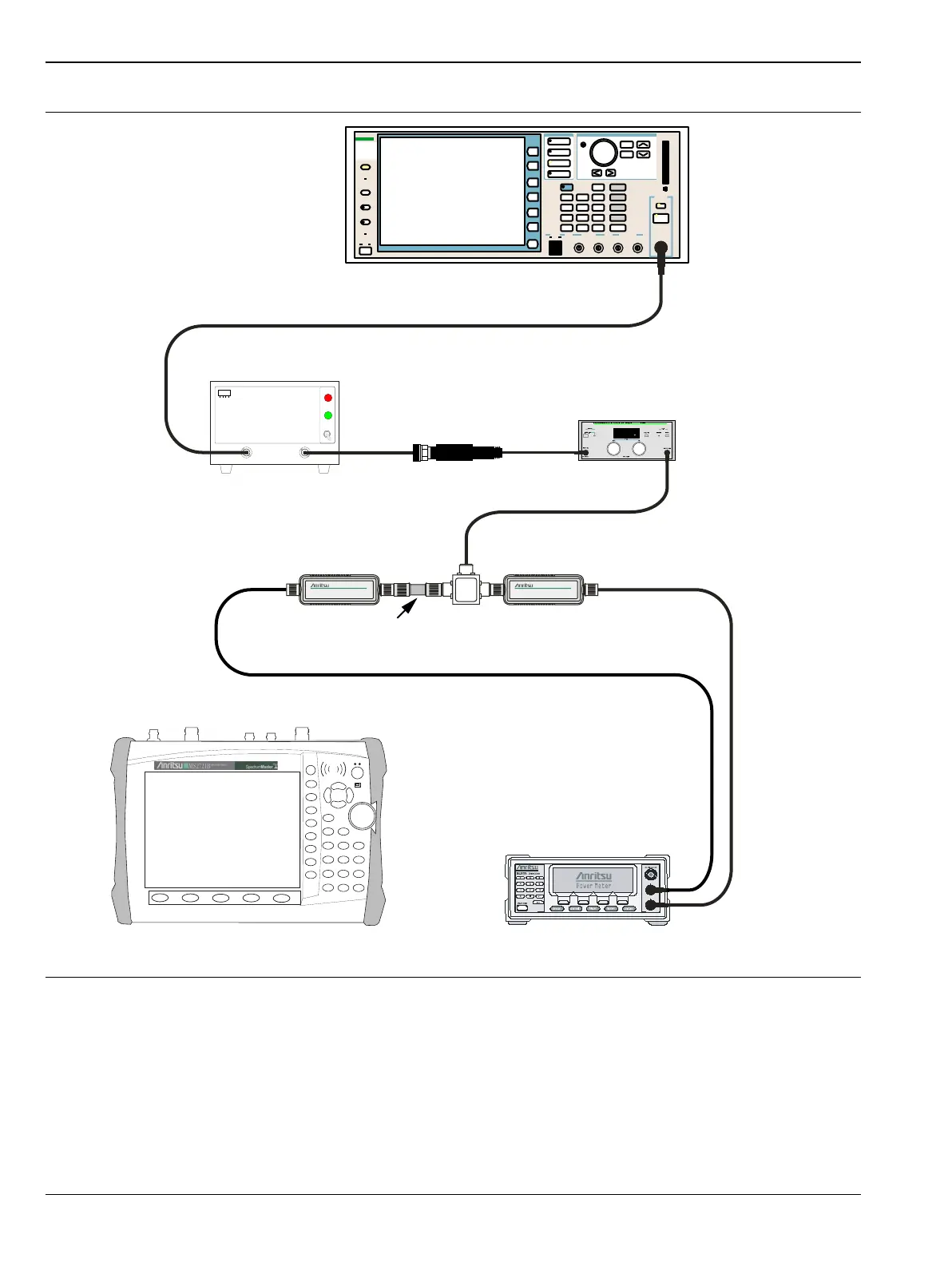

Figure 3-21. DVB-T/H Option 64 and Option 57 – Level Accuracy Verification – Two Sensors
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
3
Mini-Circuits
RF POWER AMPLIFIER
MODEL TIA - 1000 - 1R8
INPUT
OUTPUT
ON
OFF
TEMP
AC
0.5 - 100 MHz 35dB GAIN
4 WATTS SATURATED
1.8 WATTS LINEAR
Sensor A
Sensor B
MS2721B
MG3700A
ML2438A Power Meter
1870A
IN50C
RF POWER AMPLIFIER
34NN50A
MN63A
15NN50-1.5C
15NN50-1.5C
To Next Page
