2-2 Spectrum Analyzer Function Verification Performance Verification 1
2-12 PN: 10580-00177 Rev. D MS2721B MM
Procedure:
1. Perform Zero/Cal on the Sensor and power meter.
On the ML2438A power meter, zero the sensor and set the calibration factor of the sensor to 600 MHz.
2. Connect the equipment as shown in Figure 2-5. The splitter will be used as an RF combiner (the normal
RF output connections will become input connections, and the normal input connection will become the
RF output connection).
3. Set the MG3692x Synthesized Signal Generator to 599.951 MHz CW, and the Agilent 8648D Signal
Generator to 600.051 MHz.

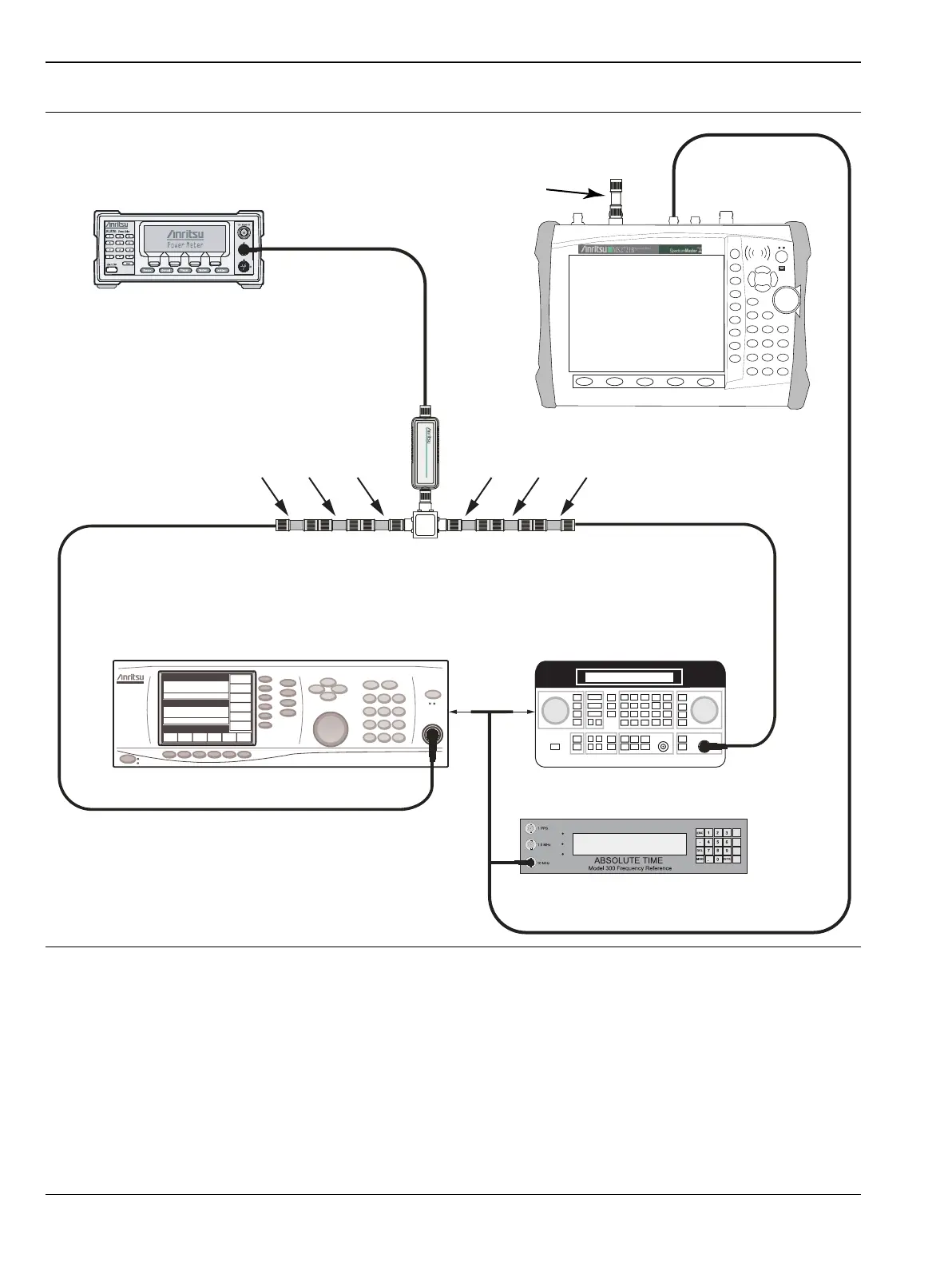

Figure 2-5. Third Order Intercept (TOI) Verification Characterization Setup
7
1
2
3
4
5
6
8
9
0
.
+/-
ML2438A Power Meter
Sensor
10 MHz Reference
Power
Splitter
1870A
Attenuators
MG3692A
Agilent 8648D
Attenuators
Adapter
34NN50A
6 dB 20 dB2 dB 20 dB 6 dB 2 dB
To
Rear
MS2721B
To Next Page
