SECTION 5 – INSTALLATION INSTRUCTIONS
UL EX3470 ULC EX3470
2014-SEP-01 REV. 11 PAGE 5-25
R-102 Restaurant Fire Suppression Manual
INSTALLATION OF REMOTE MANUAL PULL STATION OR
MECHANICAL GAS VALVE UTILIZING FLEXIBLE CONDUIT
(Continued)

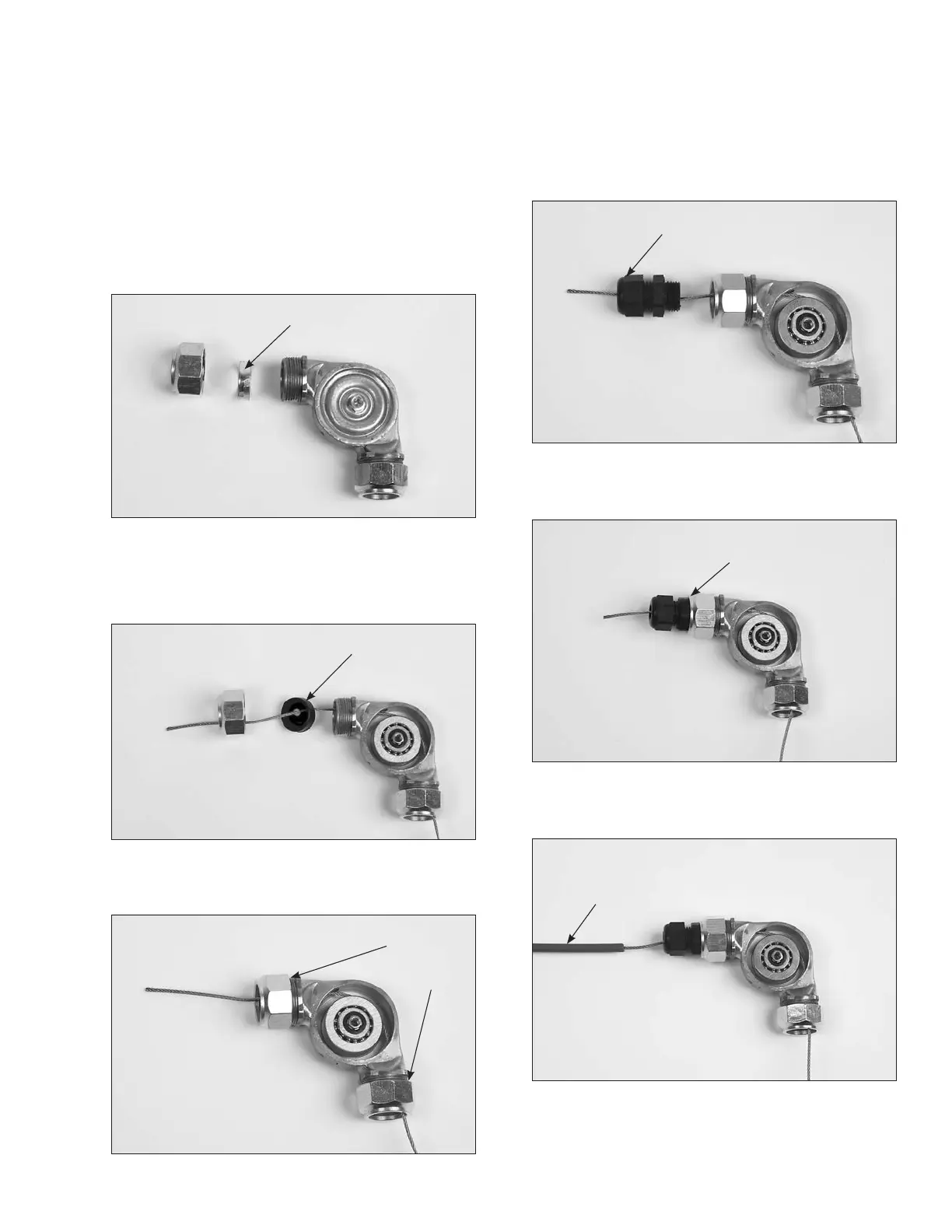

Connecting Flexible Conduit to Pulley Elbows, Pulley
Tees, or Union Fittings
1. Unscrew the nut from pulley elbow, pulley tee, or EMT
conduit connector and remove the compression ring.
Discard ring. See Figure 5-62.
DISCARD
RING
FIGURE 5-62
007995
2. Thread the stainless steel wire rope through the EMT
conduit connector and flexible conduit insert. Make certain
thread in flexible conduit insert is facing out toward end of
connector. See Figure 5-63.
THREADS FACING
AWAY FROM BODY
OF FITTING
FIGURE 5-63
007996
3. Tighten the nut to the connector conduit body, locking the
flexible conduit insert in place. See Figure 5-64.
FLEXIBLE
CONDUIT
INSERT
LOCKED
IN PLACE
FIGURE 5-64
007997
4. Loosen the nut on the strain relief and thread the wire rope
through the strain relief. See Figure 5-65.
LOOSEN NUT OF
STRAIN RELIEF
FIGURE 5-65
007998
5. Tighten the body of the strain relief to the conduit connector.
See Figure 5-66.
TIGHTEN STRAIN
RELIEF INTO CONDUIT
CONNECTOR
FIGURE 5-66
007999
6. Push the wire rope into the flexible conduit. See Figure
5-67.
FLEXIBLE
CONDUIT
FIGURE 5-67
008000
To Next Page
