SECTION 9 – APPENDIX
UL EX3470 ULC EX3470
PAGE 9-12 REV. 11 2014-SEP-01
R-102 Restaurant Fire Suppression Manual

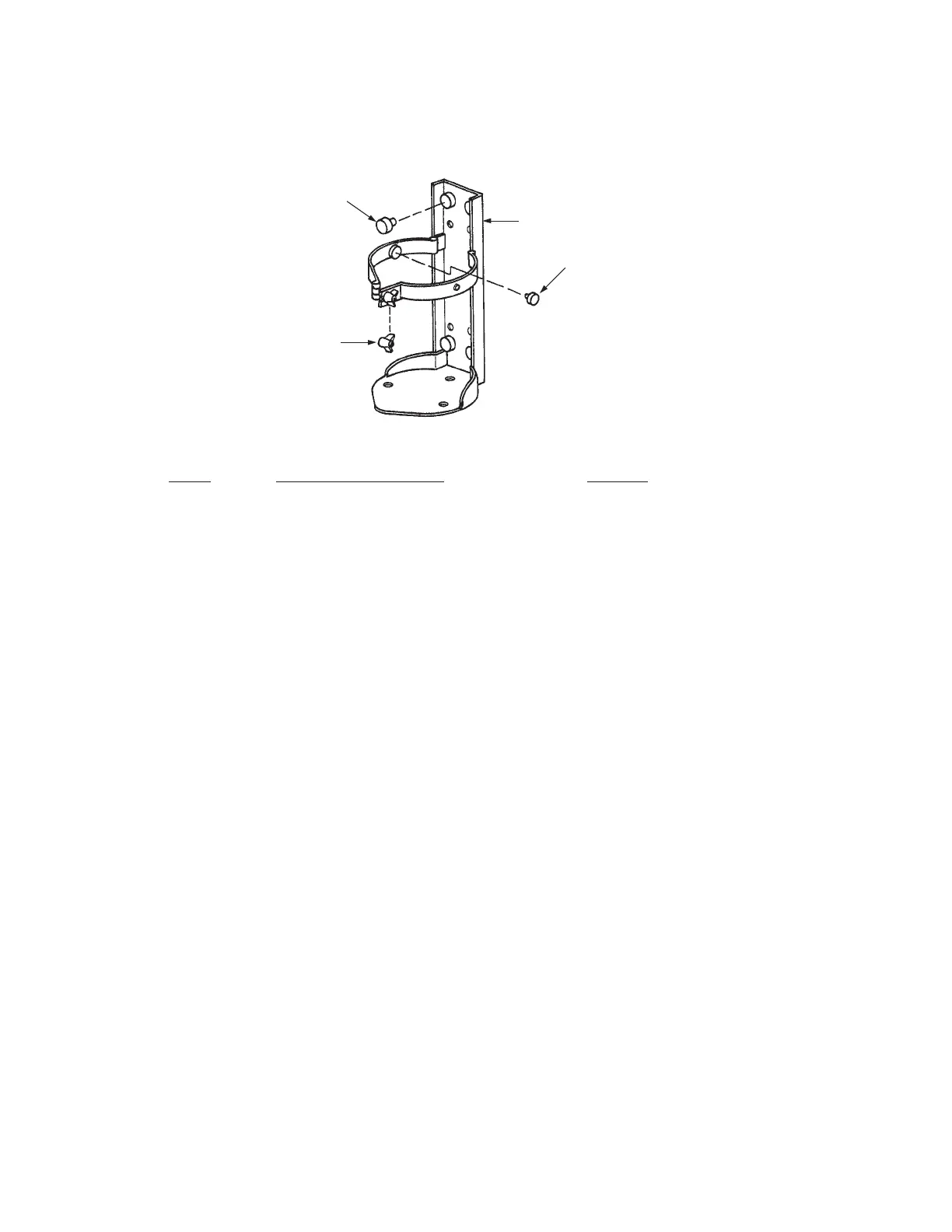

BRACKET ASSEMBLY
1
2
3
4
000376
Figure 3 Gallon
No. Description Part No.
– Bracket Shipping Assembly 429878
1 Bracket Assembly –
2 Grommet 14089
3 Grommet 8688
4 Wing Nut 12065
