TOTAL SYSTEM (Continued)
Three-Tank System (1 Cartridge with Three 3.0 Gal Tanks
ONLY)
The R-102 three-tank system is available with stainless steel
enclosures and consists of:
1. AUTOMAN Regulated Release Assembly (Electrical or
Mechanical)
2. Double Tank Enclosure Assembly
3. Nitrogen Cartridge
4. ANSULEX Low pH Liquid Fire Suppressant
5. Discharge Nozzles
6. Detection Components
7. Additional Devices (As Required)
The regulated release assembly contains the regulated release
mechanism, agent tank, expellant gas hose for agent tank
hookup, and enclosure knockouts to facilitate installing expellant
piping, detection system, and additional equipment.
The double tank enclosure assembly is mounted separately but
within the guidelines of the regulated release assembly expellant
gas piping requirements to ensure simultaneous actuation of the
system. Refer to “System Components” section for individual
component descriptions.

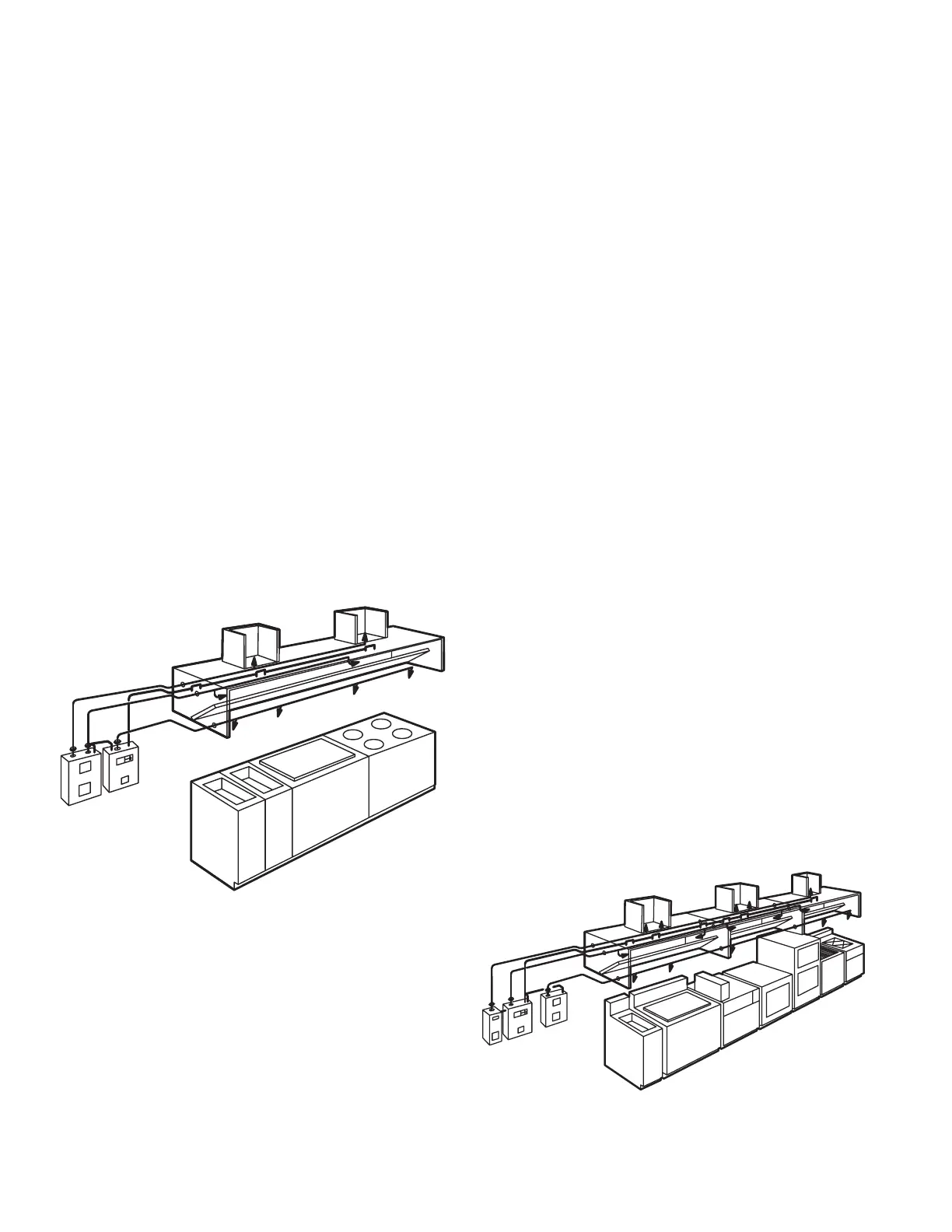

FIGURE 2-3
008322
Multiple Tank System (Three Tanks or More – Multiple
Cartridges)
The R-102 multiple-tank system is available with stainless steel
enclosures and consists of:
1. AUTOMAN Regulated Release Assembly
(Electrical or Mechanical) or AUTOMAN Remote Release
Assembly(ies)
2. Nitrogen Cartridge(s) and/or Carbon Dioxide Cartridge(s)
3. Regulated Actuator Assembly(ies)
4. ANSULEX Low pH Liquid Fire Suppressant
5. Enclosure or Bracket Assembly(ies)
6. Discharge Nozzles
7. Detection Components
8. Additional Devices (As Required)
The regulated release assembly contains the regulated release
mechanism, agent tank, expellant gas hose for agent tank
hookup, and enclosure knockouts to facilitate installing actua-
tion piping, expellant piping, detection system, and additional
equipment.
The remote release assembly(ies) is used in large systems or
multi-hood systems to actuate regulated actuator assembly(ies)
ONLY. The remote release assembly contains a release mecha-
nism (unregulated), with enclosure knockouts to facilitate install-
ing the actuation piping, expellant piping, detection system, and
additional equipment.
Each regulated actuator assembly is mounted separately but
within the guidelines of the regulated release assembly actua-
tion/expellant gas piping requirements to ensure simultaneous
actuation of the system. The assembly contains the pneumatic
actuator, regulator, agent tank, expellant gas hose for agent
tank hookup, and enclosure plugs to facilitate installing expellant
piping.
Each enclosure or bracket assembly is mounted separately but
within the guidelines of the regulated release assembly or reg-
ulated actuator assembly expellant gas piping requirements to
ensure simultaneous actuation of the system. Refer to “System
Components” section for individual component descriptions.
FIGURE 2-4
008323
SECTION 2 – SYSTEM DESCRIPTION
UL EX3470 ULC EX3470
PAGE 2-2 REV. 11 2014-SEP-01
R-102 Restaurant Fire Suppression Manual
