Ansul R-102 - Enclosure Assembly View and Parts List

SECTION 9 – APPENDIX
UL EX3470 ULC EX3470
2014-SEP-01 REV. 11 PAGE 9-11
R-102 Restaurant Fire Suppression Manual

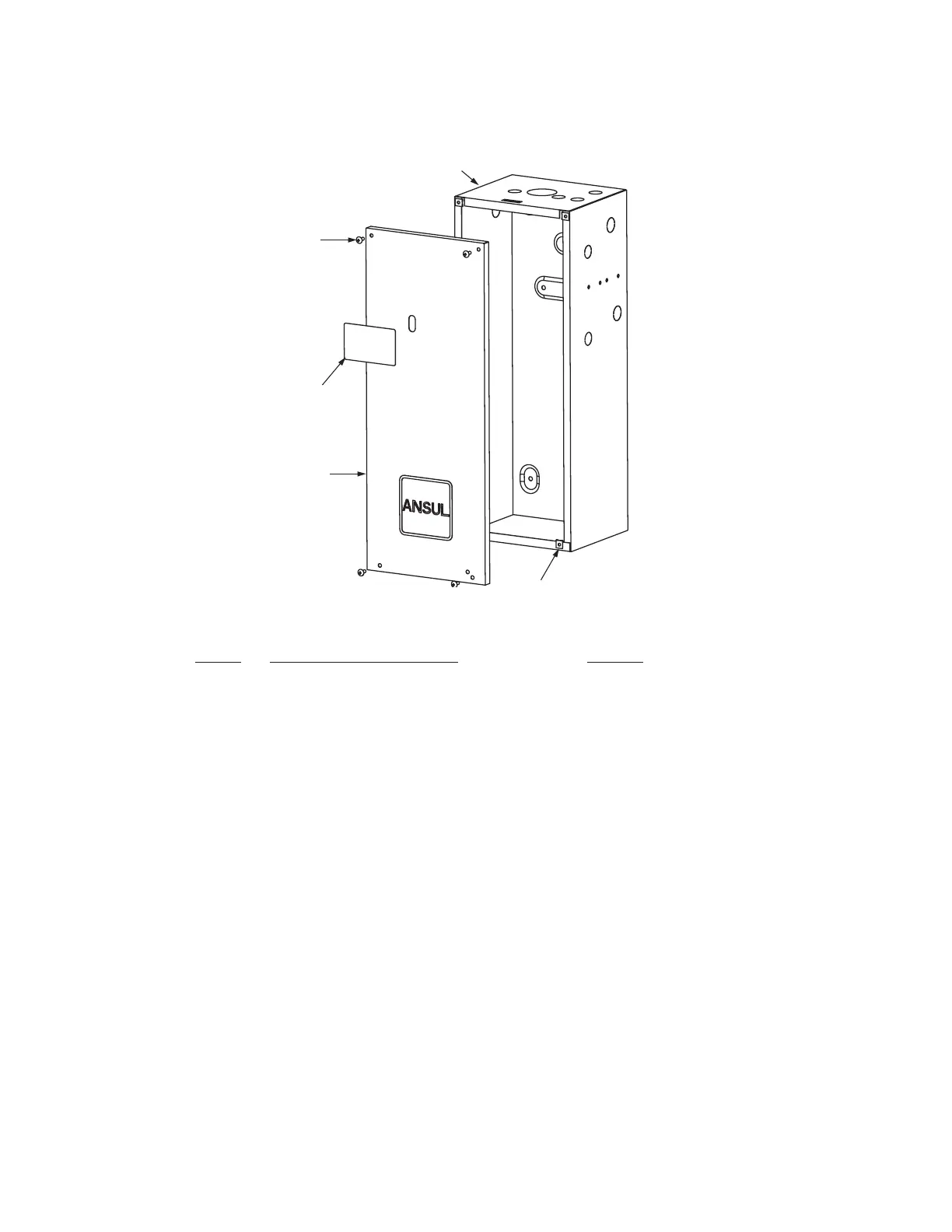

ENCLOSURE ASSEMBLY
000290
1
2
3
4
5
Figure
No.
Description Part No.
– Enclosure Shipping Assembly 429870
1 Enclosure 419295
2 Cover 419296
3 Nameplate 429871
4 Screw 15362
5 Speed Nut 423479
