Ansul R-102 Installation And Maintenance Manual

Griddle Protection 2120 (2-Flow) Nozzle – Low Proximity
Application
Option 2b – Nozzle Perimeter Located (Continued)
10 in. to 20 in. (254 mm to 508 mm) above the cooking surface.
The low proximity application uses the 2120 nozzle.
The nozzle is stamped with 2120 indicating this is a two-ow
nozzle and must be counted as two ow numbers.
One 2120 nozzle will protect a maximum cooking area of 1440
in.
2
(92903 mm
2
) with a maximum dimension of 48 in. (1219 mm).
When using this nozzle for griddle protection, the nozzle must
be positioned along the perimeter to 2 in. (50 mm) inside perim-
eter, and aimed at the center of the cooking surface. See Figure
4-47 and 4-48.

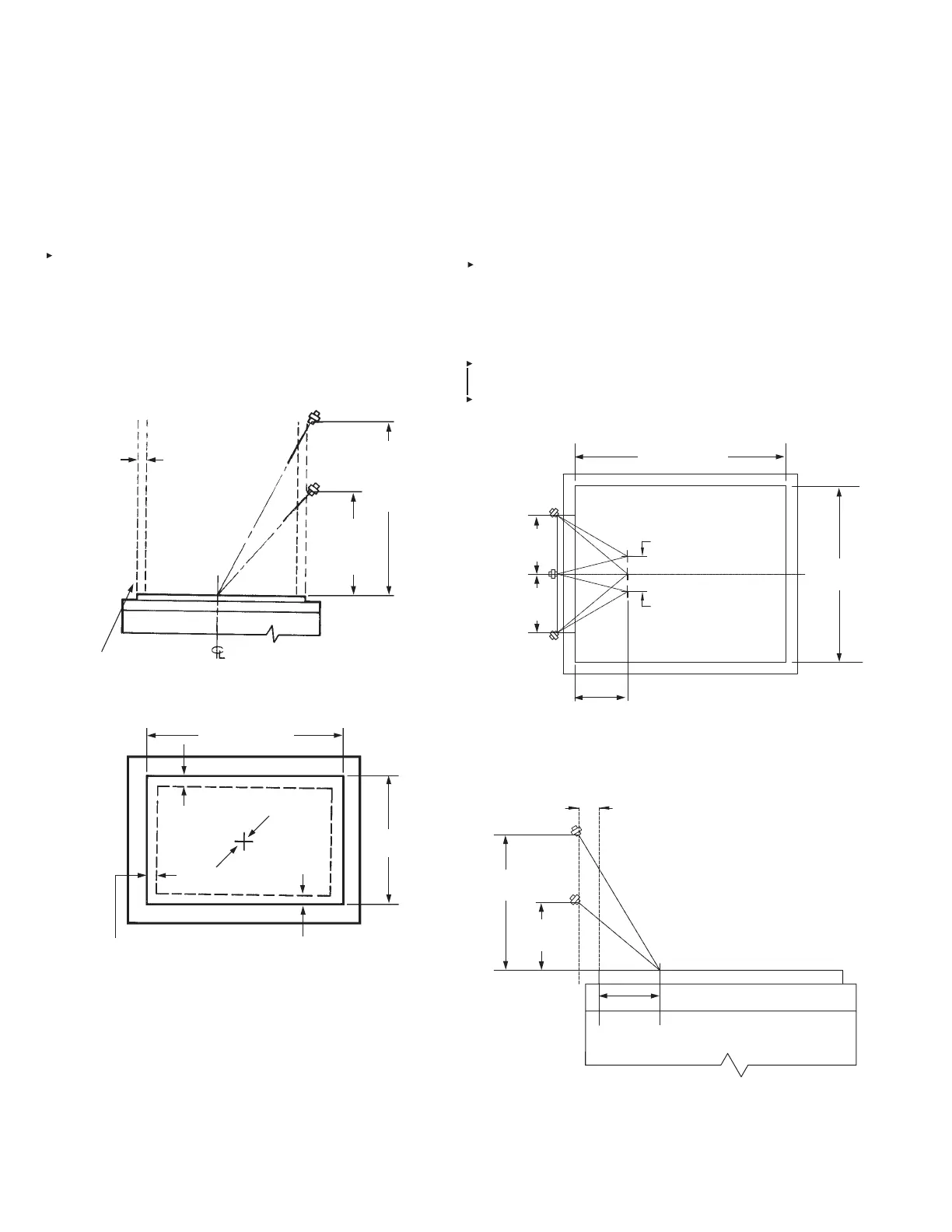

FIGURE 4-47
000243
FIGURE 4-48
000241
Griddle Protection 2W (2-Flow) Nozzle – Low Proximity
Application
Option 2c – Nozzle Perimeter Located (Continued)
10 in. to 20 in. (254 mm to 508 mm) above the cooking surface.
The low proximity application uses the 2W nozzle.
The nozzle is stamped with 2W indicating this is a two-ow
nozzle and must be counted as two ow numbers.
One 2W nozzle will protect a maximum cooking area of 1080 in.
2
(69677 mm
2
) with a maximum dimension of 36 in. (914 mm).
When using this nozzle for griddle protection, the nozzle must be
positioned 0-10 in. (0-254 mm) forward or behind the right to left
centerline of the hazard area. See the diagram below for nozzle
location and aiming.
FIGURE 4-49
FIGURE 4-50
000243
NOZZLE LOCATION
0 – 2 IN. (0 – 51 mm)
INSIDE PERIMETER
OF COOKING SURFACE
20 IN.
(508 mm)
MAXIMUM
HEIGHT
OF 2120
NOZZLE TIP
10 IN. (254 mm)
MINIMUM
HEIGHT
OF 2120
NOZZLE TIP
EDGE OF
COOKING SURFACE
COOKING AREA
CENTER OF
COOKING SURFACE
AIM POINT
COOKING
AREA
COOKING SURFACE EDGE
2120 NOZZLE LOCATED ALONG
ANY SIDE OF GRIDDLE SURFACE
WITHIN 0 – 2 IN. (0 – 51 mm) OF
COOKING SURFACE EDGE. NOZZLE
MUST BE AIMED AT CENTER OF
COOKING SURFACE.
C
L
2W NOZZLE AIM POINT
0-3 IN. (0-76 mm) TO REAR OF
COOKING SURFACE CENTER
LINE WHEN 2W NOZZLE IS
POSITIONED AT OR TO THE
REAR OF CENTER LINE
2W NOZZLE AIM POINT
0-3 IN. (0-76 mm) FORWARD
OF COOKING SURFACE
CENTER LINE WHEN 2W
NOZZLE IS POSITIONED AT
OR FORWARD OF COOKING
SURFACE CENTER LINE
36 IN. (914 mm) MAX.
30 IN.
(762 mm)
MAX.
AIM POINT 9 IN. (228 mm)
FROM EITHER SIDE OF
COOKING SURFACE
0 - 10 IN.
(0 - 254 mm) FROM
CENTERLINE MAX.
0 - 10 IN.
(0 - 254 mm) FROM
CENTERLINE MAX.
008149
OVERHEAD VIEW
NOTE: A 2W NOZZLE CAN PROTECT A
GRIDDLE WITH A MAXIMUM COOKING
SURFACE OF 30 IN X 36 IN. (762 mm X
914 mm), AT A HEIGHT OF 10 - 20 IN. (254
- 508 mm).
THE 2W NOZZLE CAN BE POSITIONED
A MAXIMUM OF ± 10 IN. (254 mm)
FORWARD OR BEHIND COOKING
SURFACE CENTER LINE AND A
MAXIMUM OF 3 IN. (76 mm) AWAY
FROM EITHER SIDE OF THE COOKING
SURFACE, AIMED IN 9 IN. (228 mm) TO
A POINT 0 - 3 IN. (0 - 76 mm). FORWARD
OR TO THE REAR OF THE COOKING
SURFACE CENTER LINE.
0 - 3 IN. (76 mm)
10 IN.
(254 mm)
MIN.
AIM POINT 9 IN.
(228 mm) FROM
EITHER SIDE OF
COOKING SURFACE
20 IN.
(508 mm)
MAX.
008150
FRONT VIEW
SECTION 4 – SYSTEM DESIGN
UL EX3470 ULC EX3470
PAGE 4-20 REV. 11 2014-SEP-01
