Ansul R-102 Installation And Maintenance Manual

SECTION 4 – SYSTEM DESIGN
UL EX3470 ULC EX3470
2014-SEP-01 REV. 11 PAGE 4-55
R-102 Restaurant Fire Suppression Manual
OVERLAPPING NOZZLE COVERAGE (Continued)
Overlapping Appliance Nozzle and Hazard Zone Locations
– Group Protection
1. For each group of protected appliances under a common
hood(s), the overlapping nozzles must be located from
right to left so that each end nozzle is located a maximum
of 6 in. (152 mm) inside the outside edge of the cooking
hazard of each end appliance, and the inside overlapping
nozzles must be located between the two end nozzles at a
maximum spacing of 12 in. (304 mm). See Figures 4-108
and 4-109.

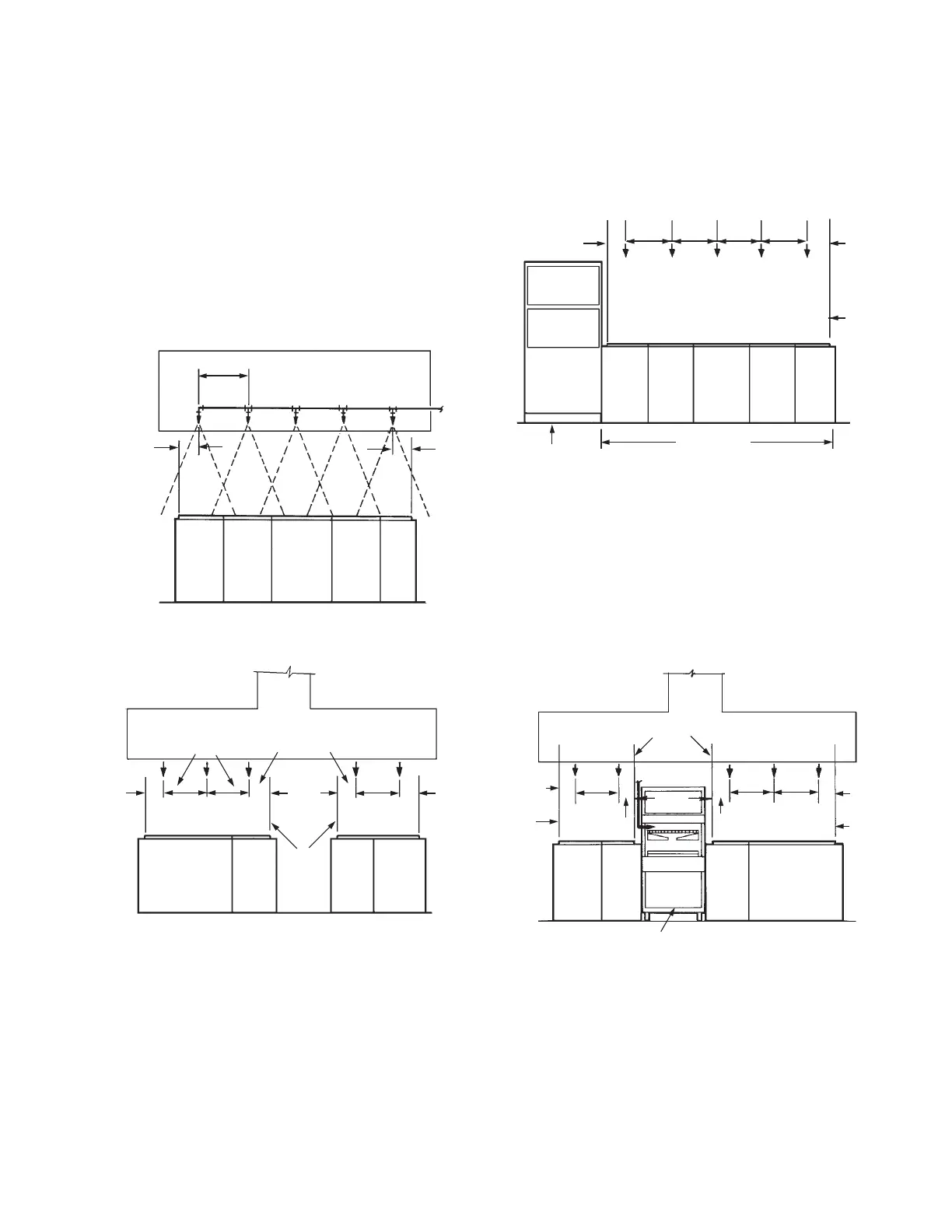

FIGURE 4-108
001710
FIGURE 4-109
001720
2. When obstructions are located adjacent to appliance(s)
protected by overlapping nozzles, the overlapping appliance
nozzle spacing must start with the appliance(s) adjacent to
the obstruction. See Figure 4-110.
FIGURE 4-110
001713
3. When an appliance requires dedicated protection with a
protected area intended for overlapping appliance nozzle
protection, the group protection option will be required for
appliances on either side of the appliances using dedicated
protection. Group protection using overlapping appliance
nozzles must begin with the protected appliance(s) adjacent
to the dedicated appliance protected. An overlapping appli-
ance nozzle(s) must be positioned within 6 in. (152 mm) of
the edge(s) of the appliance hazard surface area(s) adja-
cent to the dedicated nozzle protection. See Figure 4-111.
FIGURE 4-111
001756
12 IN. (304 mm) MAXIMUM
SPACING(S) BETWEEN
OVERLAPPING NOZZLES
6 IN.
(152 mm)
MAXIMUM
FROM
EDGE OF
COOKING
HAZARD
6 IN.
(152 mm)
MAXIMUM
FROM
EDGE OF
COOKING
HAZARD
FULL HOOD CONTINUOUS APPLIANCE PROTECTION
6 IN.
(152 mm)
MAXIMUM
FROM
EDGE OF
COOKING
HAZARD
6 IN.
(152 mm)
MAXIMUM
FROM
EDGE OF
COOKING
HAZARD
GROUP APPLIANCE PROTECTION
EDGE OF
COOKING
HAZARD
12 IN.
(304 mm)
MAXIMUM
12 IN. (304 mm)
MAXIMUM
6 IN. (152 mm)
MAXIMUM
6 IN.
(152 mm)
MAX.
OUTSIDE
EDGE OF
COOKING
HAZARD
6 IN.
(152 mm)
MAX.
OBSTRUCTION
12 IN.
(304 mm)
MAX.
12 IN.
(304 mm)
MAX.
12 IN.
(304 mm)
MAX.
12 IN.
(304 mm)
MAX.
HAZARD AREA
6 IN.
(152 mm)
MAX.
EDGE
OF
COOKING
HAZARD
EDGE OF COOKING
HAZARD
EDGE
OF
COOKING
HAZARD
6 IN.
(152 mm)
MAX.
DEDICATED NOZZLE
APPLIANCE
12 IN.
(304 mm)
MAX.
12 IN.
(304 mm)
MAX.
6 IN. (152 mm)
MAXIMUM
12 IN.
(304 mm)
MAX.
6 IN. (152 mm)
MAXIMUM

Ansul R-102 Specifications

General

Agent	Ansulex Low pH Liquid Fire Suppressant
Activation	Automatic or manual
Temperature Range	32 °F to 120 °F (0 °C to 49 °C)
System Type	Wet Chemical
Application	Commercial Kitchens
Nozzle Coverage	Varies based on hazard and configuration
Detection	Thermal or Manual
Approval	UL 300
Nozzle Types	Appliance specific nozzles
Capacity	Varies by cylinder size
Material	Stainless Steel
Standards	NFPA 17A
Cylinder Sizes	1.5 to 3 gallons
