SURGICAL SINGLE CART

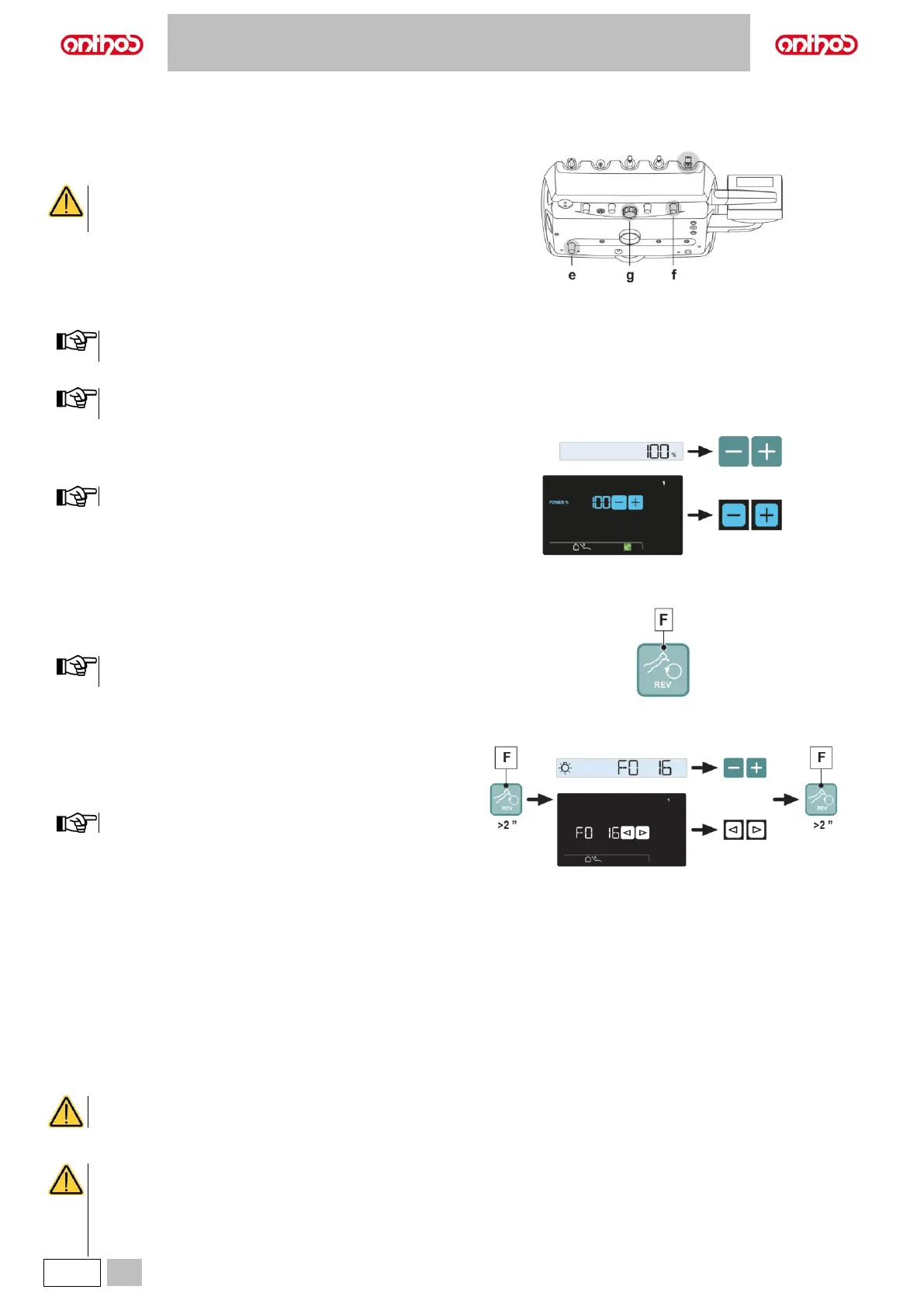

Connecting the handpiece and changing the drill.
Refer to the specific instructions provided with the handpiece.
Use.
The instrument is supplied NON-sterile.
Carefully read the operating instructions supplied with the
instrument before attempting to sterilize.
Operating times: work 5 min., rest 5 min.
f Cock that adjusts the amount of spray water
e Cock that adjusts the amount of air spray for all the instruments.
g Turbine return air filter.
• Place the instrument in its work position.
Instrument activation is highlighted by the relevant managing
screen appearing on the DISPLAY.
• Use the foot control lever to start the instrument (see paragraph 5.2.).
The turbine hose can also be used to connect the air micromotors equipped with 4-way connectors and conforming with standard ISO
13294 and/or other air-operated instruments with the same 4-way connector.
Adjusting the drill’s rotation speed:
• Set the percentage of drill’s maximum rotation speed by pressing
“increase” or “decrease“ buttons.
The data set are automatically saved.
Turning on the fibre optics.
• Place the instrument in its work position.
• Press the button to turn Fibre Optics on/off (F).
The Fibre Optics switch off when the instrument is not used
for 30 seconds (rheostat lever disabled).
Fibre optic brightness adjustment.
• Place the instrument in its work position.
• To adjust fibre optic brightness, press the button (F) (for at least 2
seconds).
• Adjust beam brightness by pressing “increase” or “decrease“ buttons.
Value setting range: 1 to 16.
• To confirm set brightness, press the button (F) (for at least 2 seconds).
Activation/deactivation of independent water supply.
See paragraph 7.2.
Removable hose.
The instrument features a removable hose to make cleaning operations easier (see paragraph 5.).
Cleaning and maintenance.
Refer to the specific instructions provided with the instrument.
It is recommended to use Daily Oil Plus (CEFLA s.c.) for lubrication.
Sterilization.
Steam autoclave up to 135°C following the instructions for the use of the device.
Carefully read the operating instructions supplied with the instrument before attempting to sterilize.
• The turbine must never be started without attaching the drill or fake drill.
• The drill release button must not be pressed during operation!
Friction between the button and micromotor rotor overheats the head and may cause burns.
• The patient’s internal tissues (tongue, cheeks, lips, etc.) must be protected against contact with the button by using suitable
instruments (mirrors, etc.).
• The drills and various instruments attached to the handpieces must comply with Biocompatibility Standard ISO 10993.
