A3 PLUS - A5 - A6 PLUS - L6
SURGICAL SINGLE CART

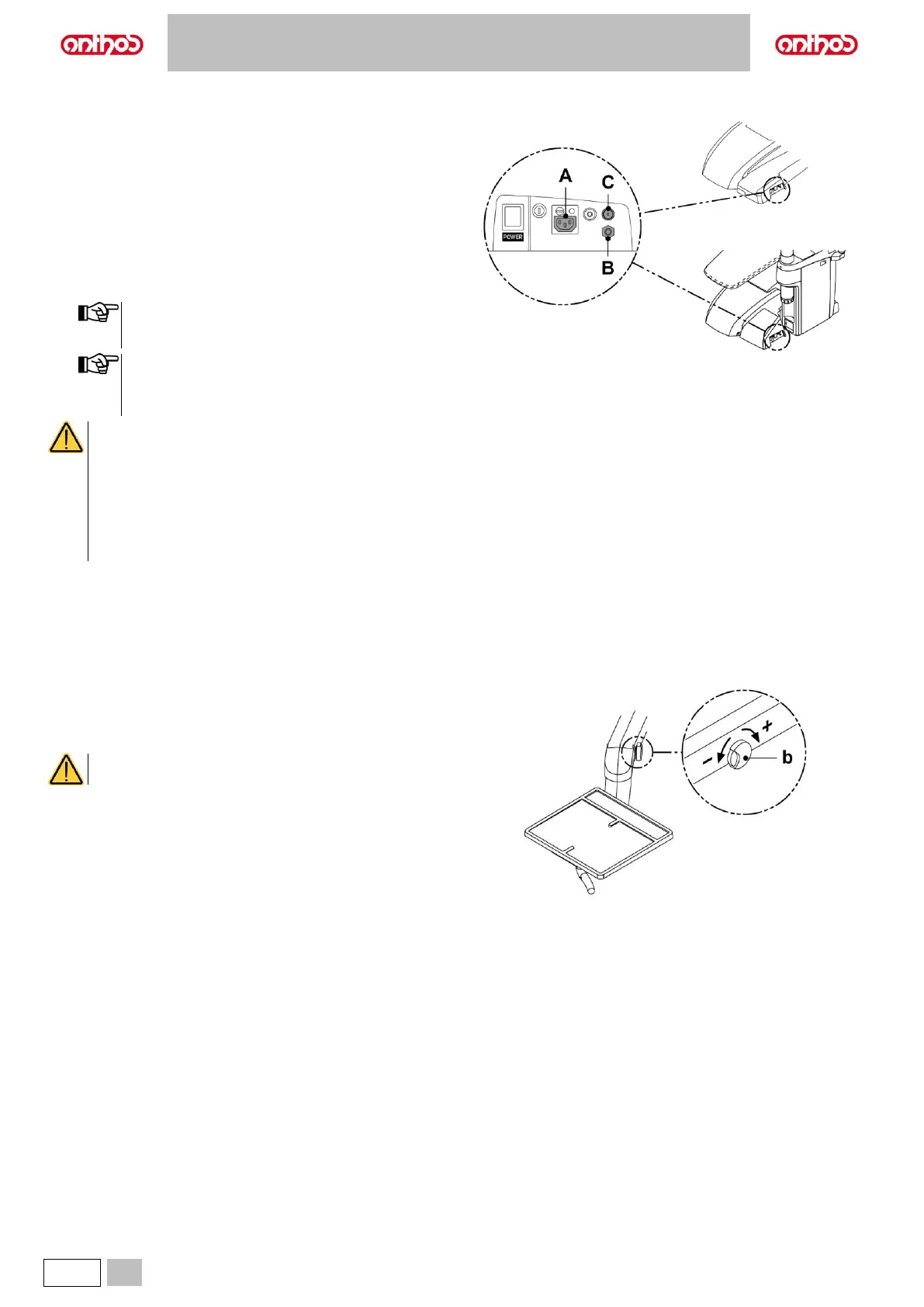

8.4. AIR/WATER/230V QUICK-COUPLINGS
A Power outlet: 220-240 Vac 50/60 Hz 10 A or 100-120 Vac 50/60
Hz 15 A according to IEC/EN 60320-2-2/F.
B Air quick coupling: pressure 6 Bar.
C Water quick coupling: pressure
• with mains water, 2.5 Bar;
• with S.H.S. system, 1.8 Bar;
• with W.H.E. system, 3 Bar.
Water quick-coupling: flow rate
• with mains water, 1800 ml/min;
• with S.H.S. system, 950 ml/min;
• with W.H.E. system, 400 ml/min.
With the S.H.S. independent water supply system, in
order to use the quick-coupling with mains water, the
relevant tank needs to be disabled (see paragraph 7.2.).
With manual S.H.S. system: when it is not used for
approximately one month, we recommend against using
the water (about 50 cc.) that first comes out of the quick
coupling.
• Switch off the equipment before attempting to connect or
disconnect the air/water outlets.
• Do not connect instruments with no anti-retraction device
on the water duct.
• After each use and before disconnecting the water inlet,
operate the connected instrument for 20 seconds with no
load to perform a manual flushing of the duct.
• Sterilize and/or disinfect all the external instrument as
specified by the Manufacturer.
8.5. AUXILIARY TRAY HOLDER
Tray holder can contain two standard size trays.
Turn knob (b) to adjust vertical movement based on load:
• Turn clockwise to increase resistance (heavy loads).
• Turn counter-clockwise to decrease resistance (lightweight loads).
Maximum permitted load on the tray: 3.5 Kg (without
negatoscope) or 2.5 Kg (with negatoscope).
