A3 PLUS - A5 - A6 PLUS - L6
SURGICAL SINGLE CART
5.8.2. C-U2 INTRAORAL CAMERA (SINGLE WATER UNIT models)
Using the camera (DIGIT console).
• Place the instrument in its work position.
Now camera is activated and is in LIVE mode (monitor shows "moving"
images) or FREEZE mode (monitor shows a snapshot).

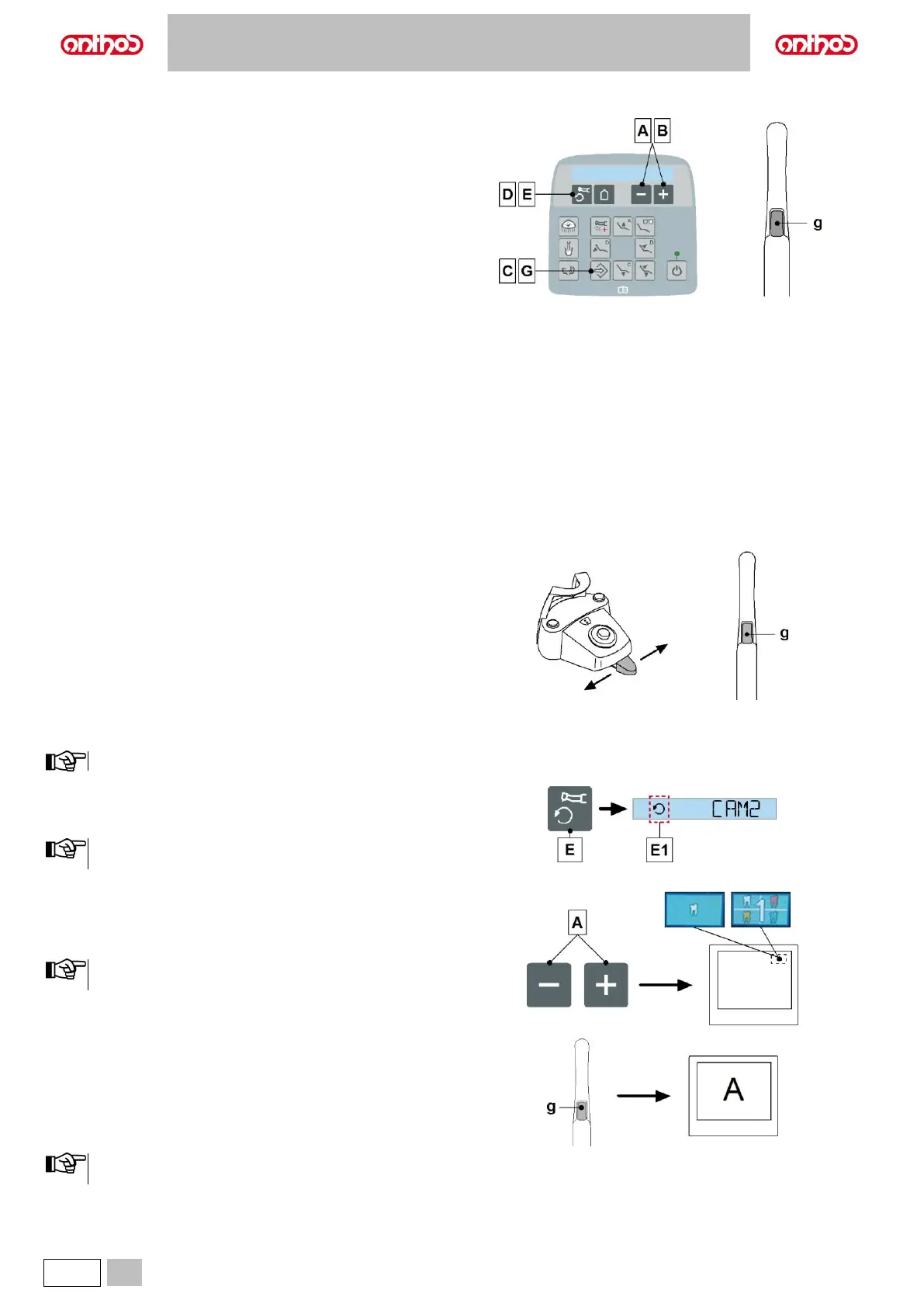

Buttons on the camera
g Image acquisition.
Console buttons:
A In LIVE mode: allows switching from single to multiple image
mode (and vice versa).
In FREEZE mode: allows scrolling through pages with frozen
images.
B In FREEZE mode: it allows selecting the frozen images.
C Function to EXIT the image management page.
(camera in FREEZE mode).
D Enables/disables zoom.
(camera in FREEZE mode)
E Enables/disables MIRROR function
(camera extracted and set to LIVE mode).
G Button pressed shortly: deletes selected image.
Button pressed and held: it deletes all images on current page.
(camera in FREEZE mode).
Image acquisition (FREEZE function).
• Shortly press the touch key (g) on camera handpiece or operate the
foot control to capture the image shown on the monitor.
To go back to "live" image, simply touch again the touch key (g) on
camera handpiece or operate the foot control.
• When the camera is set back to LIVE mode, the display shows the
MAIN PAGE; the image management page remains active in FREEZE
mode, press the button (C) to exit it.
Turning on camera lighting system.
• Place the instrument in its work position.
The camera lighting system is always on.
MIRROR function.
• With the camera set to LIVE mode, briefly press the button (E) on the
console to change from viewing real images to mirror images.
The activation of mirror image mode is signalled on the display
through icon (E1).
Setting operation in single image or multiple image mode.
• With the camera set to LIVE mode, briefly press the button (A) to
change from viewing a single image to multiple images (and vice
versa).
An icon, found in the top right-hand corner of the monitor,
signals when single image mode is active.
Operation in single image mode.
• The "live" image appears on the monitor and a special icon (1) is
shown in the top right-hand corner when the camera is set to LIVE and
single-image mode.
• By pressing the touch button (g) on the handpiece (or by activating the
foot control), you can freeze the image, which is immediately shown on
the monitor deleting any other previous image.
The last frozen image remains on the monitor even if the
camera is put back in place.
