A3 PLUS - A5 - A6 PLUS - L6
SURGICAL SINGLE CART

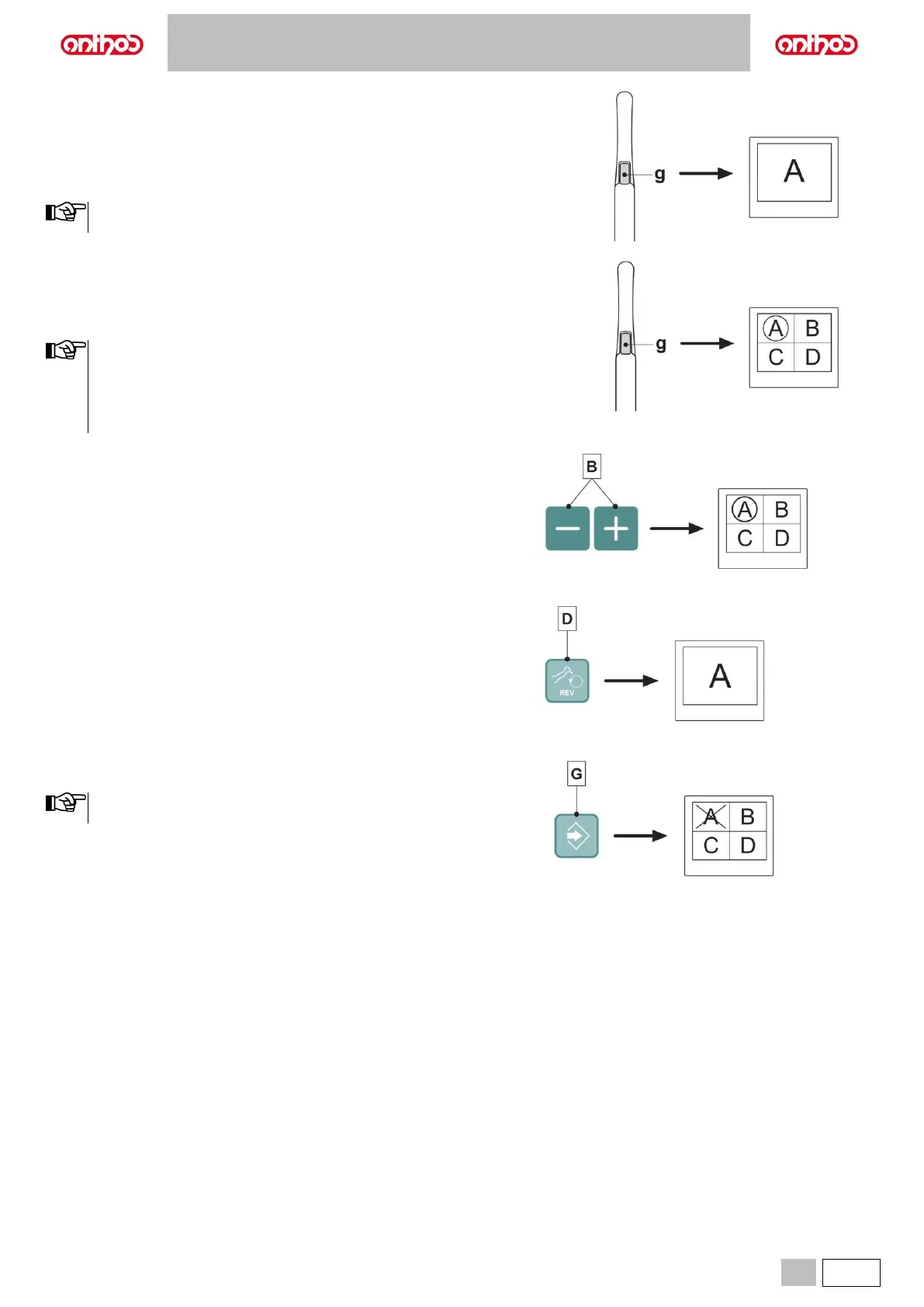

Operation in single image mode.
• The "live" image appears on the monitor and a special icon (1) is
shown in the top right-hand corner when the camera is set to LIVE and
single-image mode.
• By pressing the touch button (g) on the handpiece (or by activating the
foot control), you can freeze the image, which is immediately shown on
the monitor deleting any other previous image.
The last frozen image remains on the monitor even if the
camera is put back in place.
Operation in multiple image mode.
• The "live" image appears on the monitor when the camera is set to
LIVE and multiple image mode.
• Pressing the touch button (g) on the handpiece (or activating the foot
control), you can freeze the image, which is immediately shown on the
monitor.
The frozen image appears directly on the monitor in the first box
available on the page currently displayed. Any following frozen
image is then positioned in the following box in reading order.
Once the 4 available boxes have been filled, each following
frozen image will replace the existing ones appearing always in
reading order.
• With the camera in FREEZE mode, by pressing the button (B) or by
activating the CHIP-AIR command using the foot control (see
paragraph 5.2), you can select the stored images in rotation.
• With the camera in FREEZE mode, pressing the button (D) you can
enable/disable the full screen display of the selected image.
• With the camera in FREEZE mode, press the button (G) to delete the
selected image.
Press the button (G) for at least 3 seconds to delete all images
on the current page.
