7. WATER UNIT OPERATION
7.1. FILL CUP AND BOWL
The bowl can be turned 305° on the water unit by hand or using a motor
drive (optional).
The bowl and the water-to-cup spout can be removed to make cleaning
operations easier.

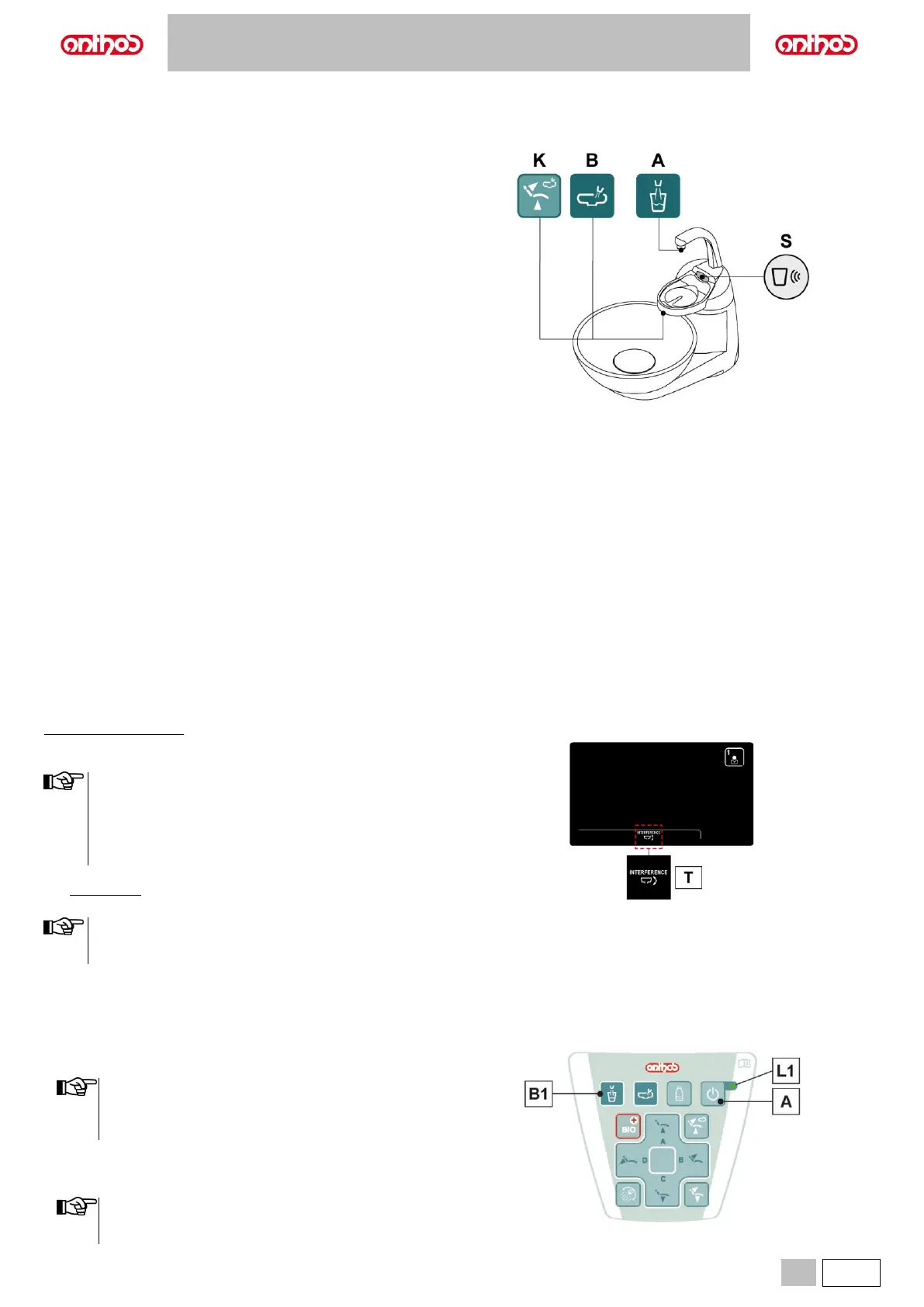

Control buttons
A Water-to-cup button.
B Water-to-bowl button.
Bowl flushing automatically stops after 30 seconds.
Bowl washing automatically starts in the following cases:
• When the rinse position button (K) is pressed.
• When the water-to-cup delivery button (A) is pressed.
Cup sensor (S) (optional)
An optical sensor detecting cup presence and automatically enabling cup
filling can be installed under cup spout.
Operation:
• when the cup is placed under the spout, water delivery starts after 2
seconds for the duration set,
• once cup is removed, the automatic filling can be repeated after 3
seconds,
• during filling, by removing cup, water delivery is immediately
interrupted,
• to disable cup sensor, call the Technical Service.
Bowl movement
The bowl must be manually moved by turning it with your hands.
Bowl automatic movements (with motor-driven bowl, only).
Bowl automatically moves:
• When "Dental chair rinse position" button is pressed.
• When "Dental chair reset position" button is pressed.
Bowl safety device
(dental units of L6 model only).
The motor-driven bowl is equipped with a safety device that
automatically moves the bowl out of the interference area with the dental
chair.
If the bowl finds an obstacle that prevents it from moving out of
the interference area, a second safety device will block the
automatic movement of the
dental chair.
The block is signalled by a double BEEP and by the flashing
icon (T) appearing on the LCD Touch DISPLAY.
The manual bowl is equipped with a safety device that locks out dental
chair up movement when it is interfering.
The block is signalled by a double BEEP
and by the flashing icon
(T) appearing on the LCD Touch DISPLAY.
Hot water to cup.
When this function is provided, hot water is always delivered to the cup.
Adjusting the amount of water used to fill the cup
• After switching on the dental unit, press button (A) 3 times to enter the
water unit settings.
1 intermittent BEEP will initially signal that the procedure is
being carried out correctly, then the intermittent BEEP will be
replaced by the slow flashing of LED (L1), indicating that it is
possible to proceed with the settings.
• Press button (B1) once to start filling the cup.
• Once the desired water level has been reached, press button (B1)
again.
When the maximum time allowed by the manufacturer is
reached, the water delivery will automatically stop and this
time will be saved.
