1.2.4 Rack Set

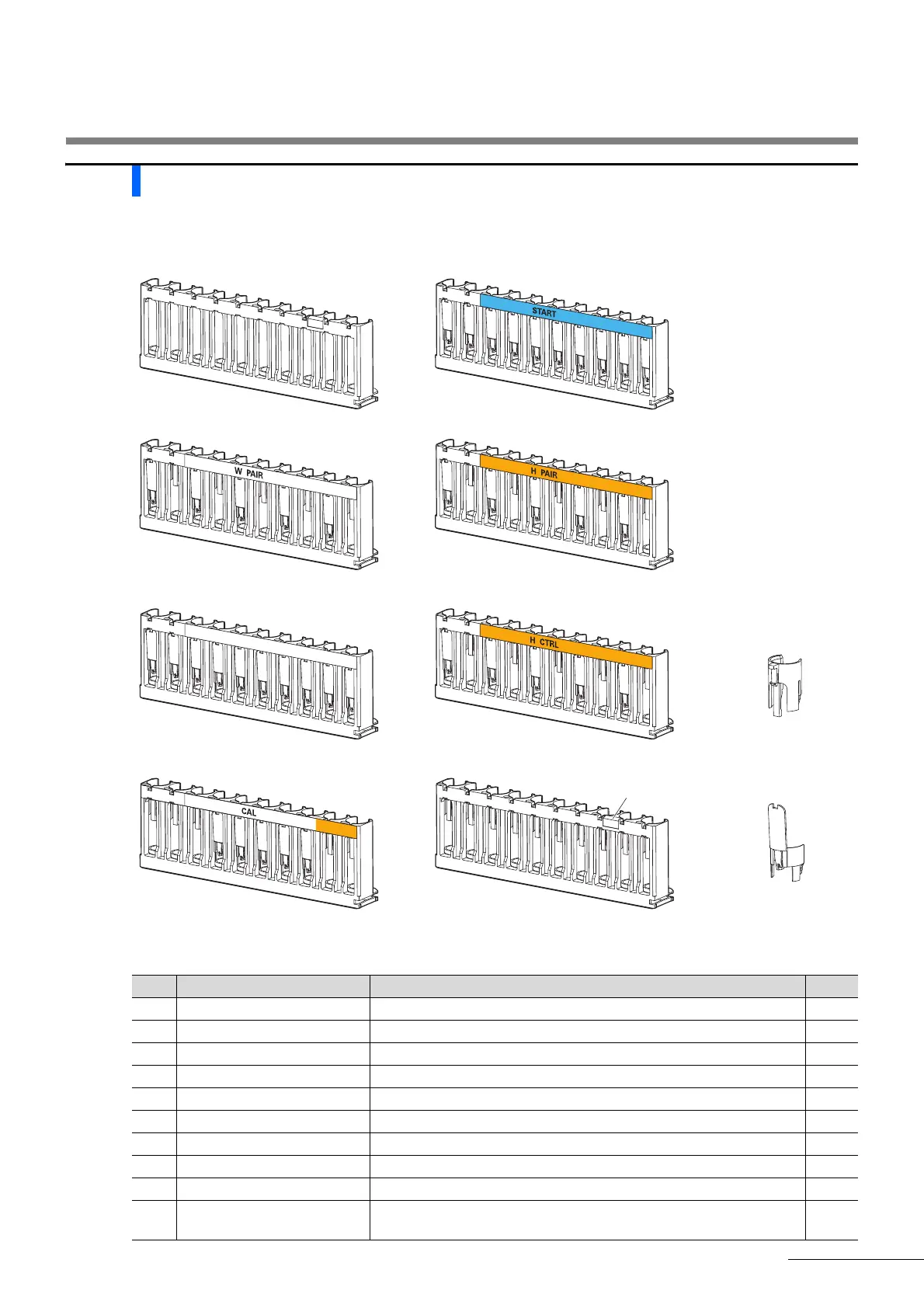

Sample rack types can be identified by the label color and name on the front of the rack. For more information, see
“2.1.3. Sample Racks” on page 2-4.
No. Rack name Description Qty.
a Normal racks For normal measurement of whole blood samples, 9 per set 1
b Start rack For normal measurement of whole blood samples 1
c Whole blood pair rack For normal measurement 1
d Hemolysis pair rack For normal measurement 1
e Anemia rack For normal measurement of anemia samples (whole blood) 1
f Hemolysis control rack For HbA1
C control measurement 1
g Calibration rack For HbA1
C calibration 1
h Washing rack For washing tubes 1
i Conventional adapters For sample cups, gray, 10 per pack 1
j Spinning unit adapters For sample tubes (12.3 mm diameter) set in normal racks,
transparent, 10 per pack
10
ANEMIA
a
Normal rack
No label
b
Start rack
Light blue, START
c
Whole blood pair rack
White, W PAIR
d
Hemolysis pair rack
Orange, H PAIR
e
Anemia rack
White, ANEMIA
f
Hemoly sis control rack
Orange, H CTRL
g
Calibration rack
Ports 1 to 8: White
Ports 9 and 10: Orange
CAL
i
Conventional adapter
j
Spinning unit adapter
h
Washing rack
Blue
(small label),
WASH
1.2 Unpacking
