Arkray ADAMS A1C HA-8180V - 1.4.4 Checking the Tubes of the Drain Pinch Valves

HA-8180V 1-22
Chapter 1 Before Use

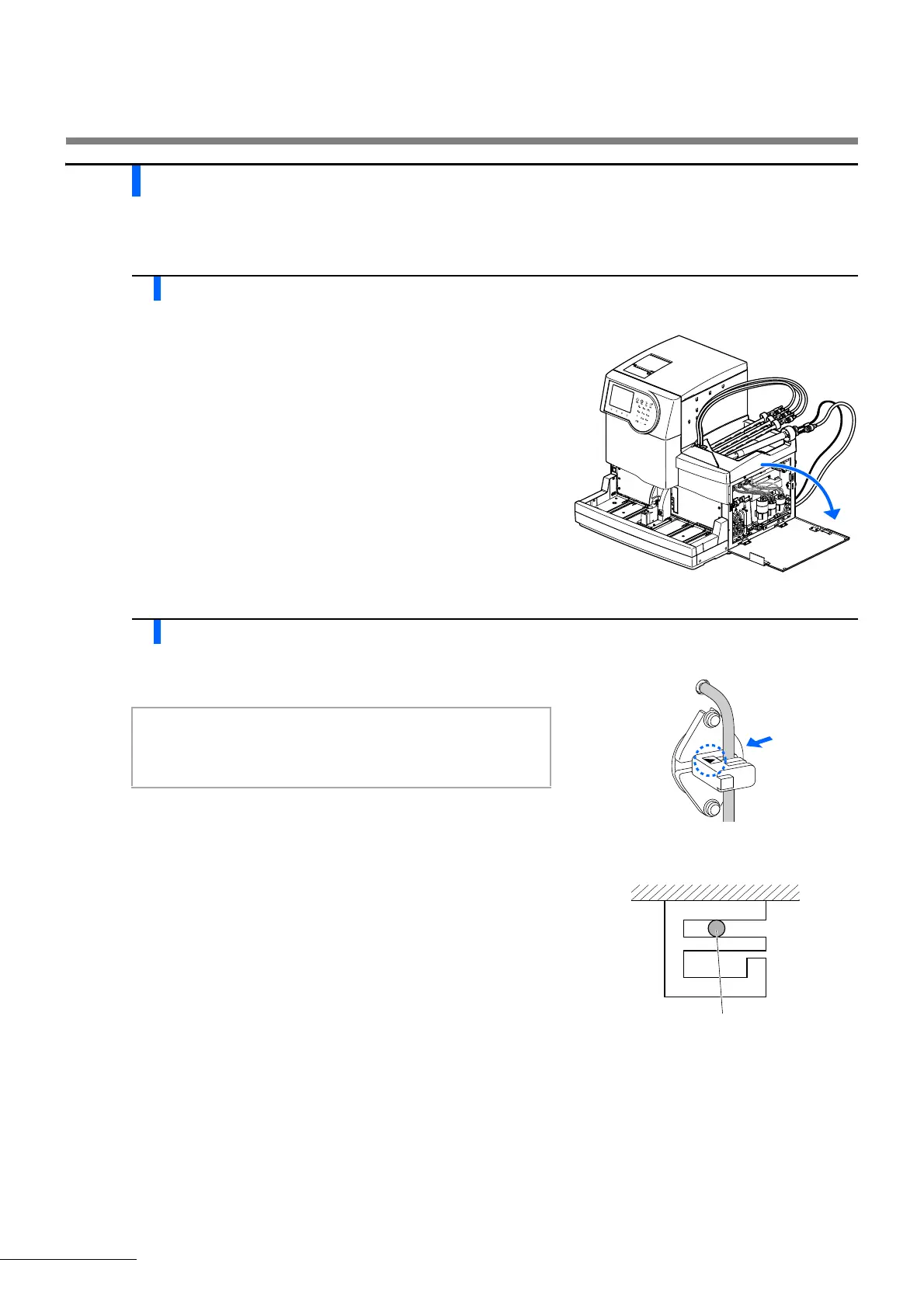

1.4.4 Checking the Tubes of the Drain Pinch Valves
1 Open the side cover.
a Open the side cover.
2 Check the tubes.
a Check that the four tubes are pinched in the rear hooks.
b Close the side cover.
Tube
Seen from above
NOTE:
There are two hooks on each valve. Always check that the
tube is pinched in the REAR hook with an arrow mark.
