HA-8180V 1-39
1.6.5 Detaching the Sampler
Prepare: Phillips screwdriver and stubby screwdriver (No.6200-1)

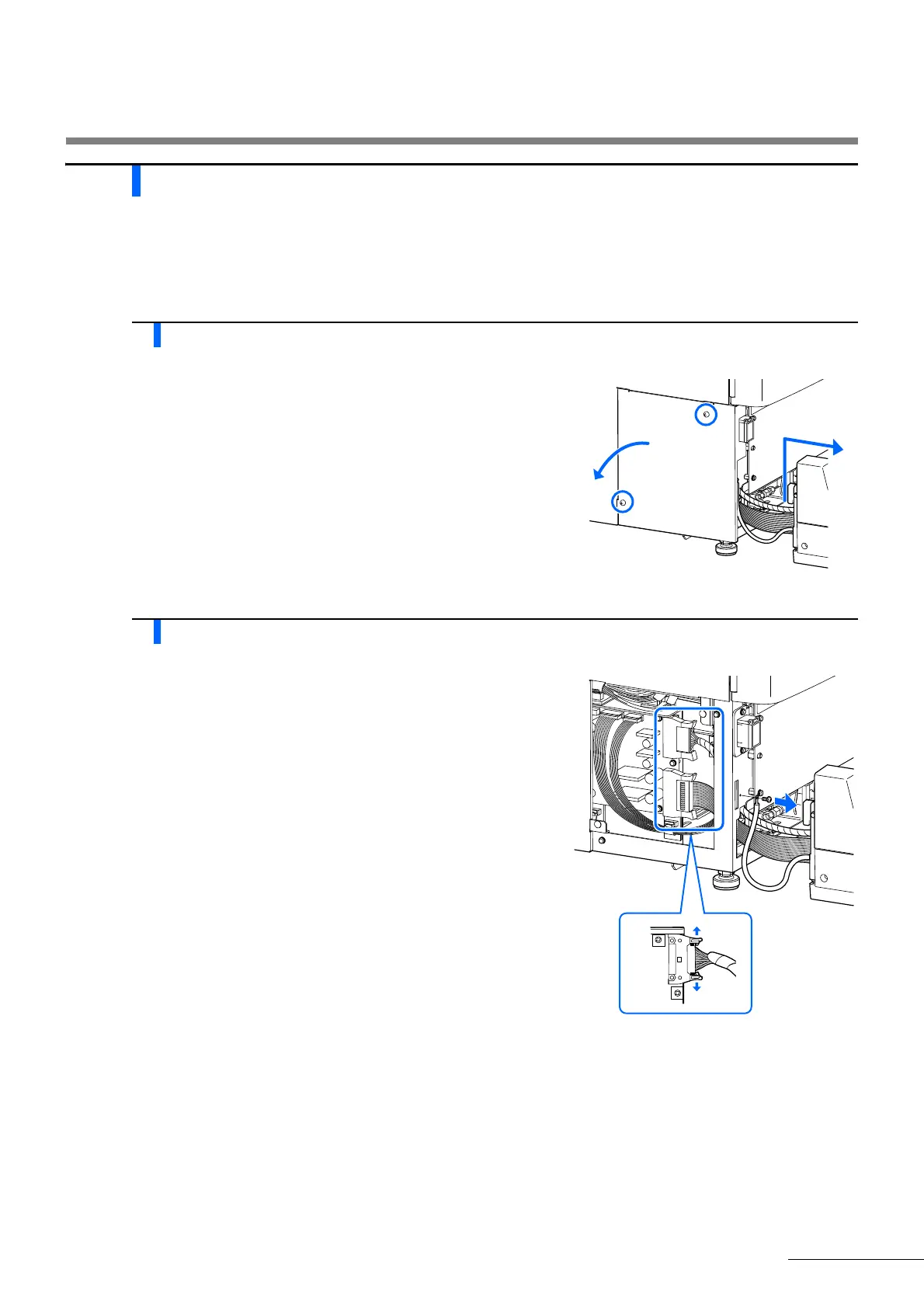

1 Detach the sampler.
a Lift the sampler straight upward slowly with both hands and pull
to the front.
• This unhooks the sampler in both locations.
b Loosen the two screws on the left side panel of the main body
using the stubby screwdriver, and remove the wiring box cover.
2 Disconnect the sampler cables from the instrument.
a Loosen the earth fixing screw with the Phillips screwdriver and
disconnect the earth line from the instrument.
b Disconnect the two sampler connectors from the main body.
• Press the levers on both sides of the connector on the main body
to the outside to disconnect the cable.
The sampler is now detached completely from the instrument.
a
b
1.6 Relocation
