Arkray ADAMS A1C HA-8180V - Rear Panel Components and Caution Labels; Power Input Terminal Safety; Drain Joints and Safety Precautions

HA-8180V v

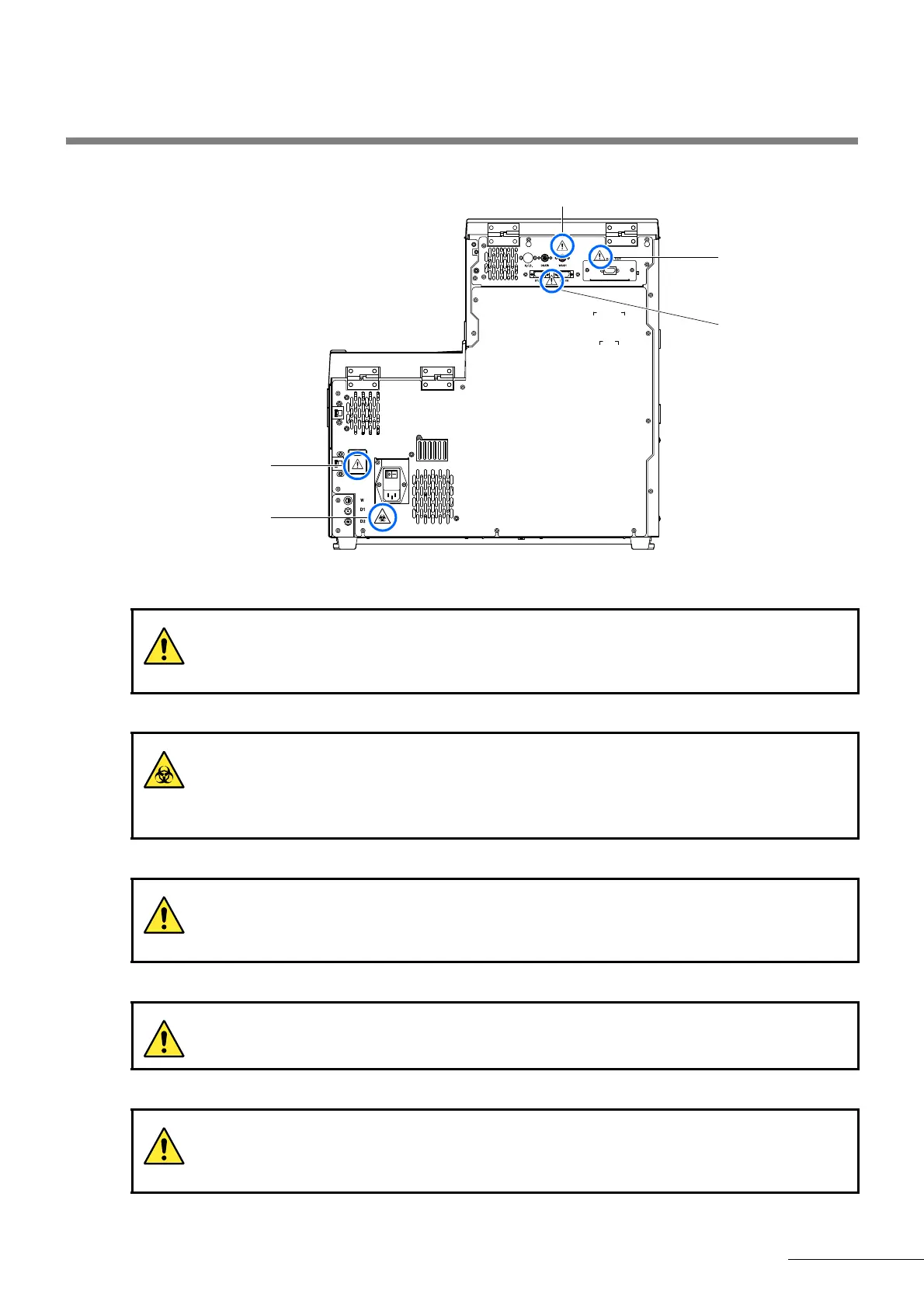

Rear
a Power input terminal
b Drain joints (D1: For the optical unit, D2: For liquid waste)
c WASH and DRAIN terminals
d DATA OUT terminal
e START and STOCK terminals
The power cord (supplied) is plugged in here. Use of other cords may cause electric shock or
fire. The fuse holders are also located here. Prepare fuses of the specified capacity for
replacement.
Liquid waste is drained through these joints into the bottle for liquid waste. Do not touch the
tubes and liquid waste with unprotected hands since the drainage contains samples. Wear
protective gloves to prevent exposure to pathogenic microbes when handling the drain tubes
and bottle.
Connect the fluid level detection sensor cord for the hemolysis washing solution bottle to the
WASH terminal, and that for the optional liquid waste bottle to the DRAIN terminal. The
instrument does not function properly if the wrong cords are connected to these terminals.
Connect the specified RS-232C cross cable (double-shielded cable) to this terminal. The
instrument does not function properly if the wrong cable is connected to this terminal.
Connect the optional side sampler to these terminals as instructed in the manual that comes
with the product. The instrument does not function properly if the wrong cables are connected
to these terminals.
c
d
e
b
a
