USER MANUAL
Ascom d83 DECT Handset Maintenance

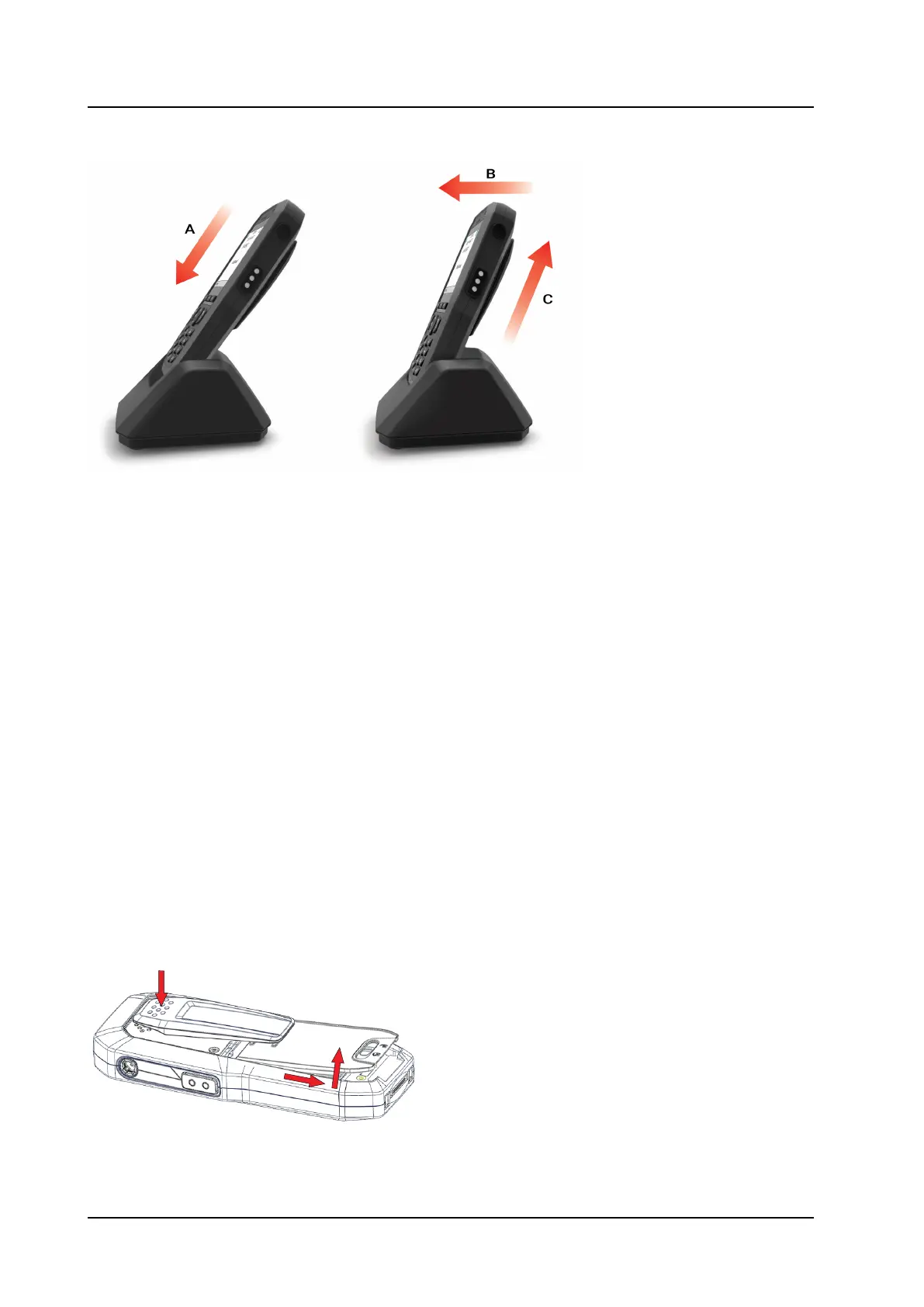

Figure 15. Example of how to insert and remove the handset from the desktop charger
15.1.3 Charge Spare Batteries
Spare batteries can be charged with a separate battery pack charger. It can charge six batteries at the
same time.
15.1.4 Replace the Battery
If the standby time for the handset becomes too low, the battery should be replaced by a new one. Please
contact your system administrator or your supplier, for information about new batteries. Attach the battery
as described in the illustration below. The battery is easy to replace. It is attached inside the battery lid and
is connected to the handset in such a way that no misalignment is possible.
To replace the battery follow the instruction below:
1. Switch off the handset to prevent data loss or damage to the handset.
2. Slide the battery cover lock to the right to release the battery.
3. While pressing and holding the upper part of the clip, remove the battery from the handset the way it is
shown in Figure 16. Replace the battery, page 89.
4. Insert a fully charged/ new battery while pressing and holding the upper part of the clip.
5. Slide the battery cover lock to the left to lock it. The handset starts automatically after the battery is
inserted.
Figure 16. Replace the battery
TD 93434EN / 01 December 2021 / Ver. B 89
