Ascom d83 DECT Handset Maintenance

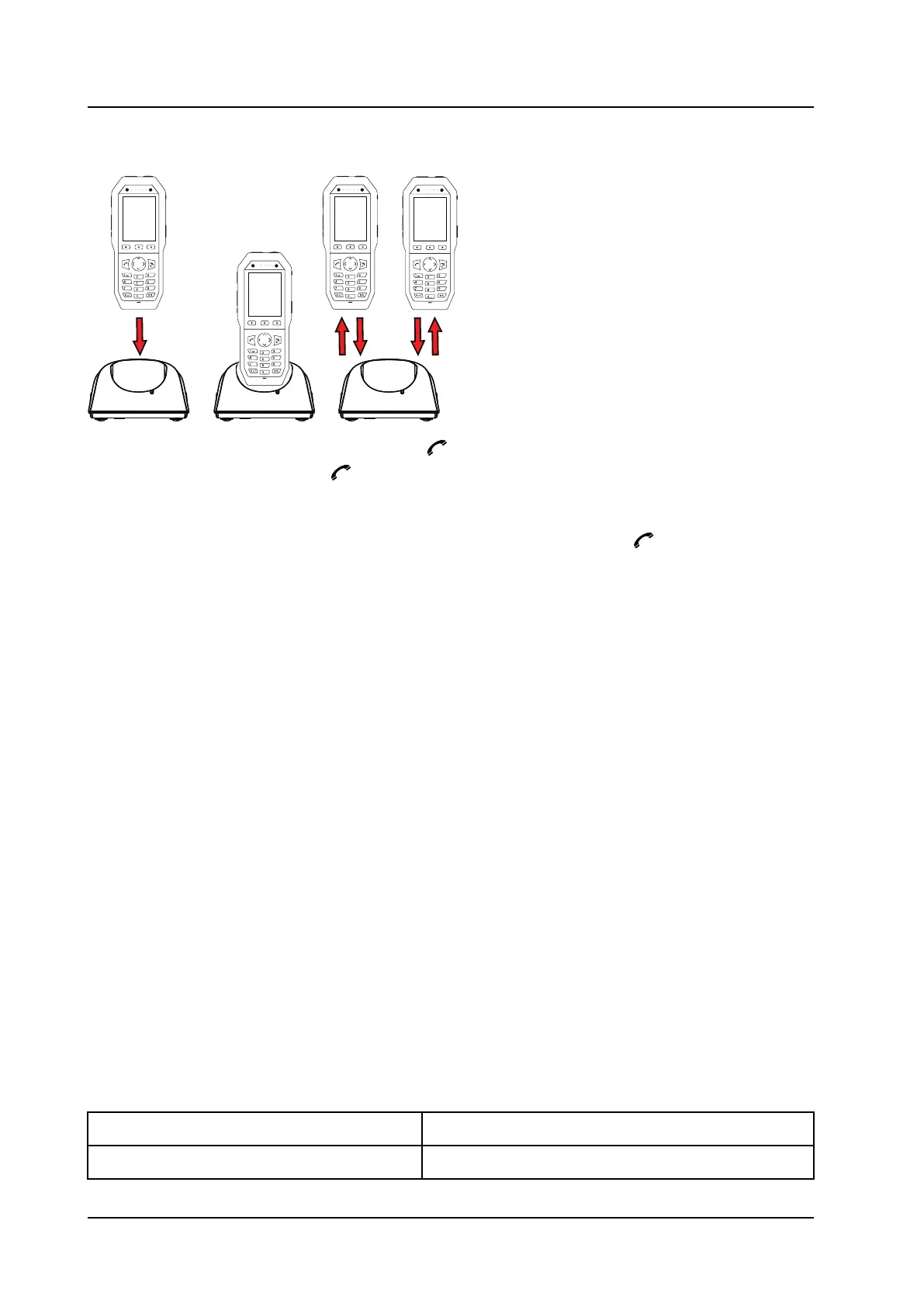

Figure 17. Easy Replacement procedure order
2
New New Old
New
4, 8 5 67
DEF
MNO
WXYZ
ABC
JKL
TUV
PQRS
GHI
DEF
MNO
WXYZ
ABC
JKL
TUV
PQRS
GHI
DEF
MNO
W
XYZ
ABC
JKL
TUV
PQRS
GHI
DEF
MNO
WXYZ
ABC
JKL
TUV
PQRS
GHI
1
On the new handset, press and hold
NOTE: Do not release until you are instructed to do so.
2 Put the new handset in the charger.
3
When the text Start phone replacement? is displayed, release
.
Press Yes (left soft key).
The text Follow the instructions. Each step can take several minutes.
appears in the display. Press OK (left soft key).
4, 5 When the text Please insert old phone in charger is displayed, replace the new
handset with the old handset. The handset can either be switched on or off.
NOTE: The left charging slot in the CR3 Charging Rack has to be used for both handsets.
The handset will be restarted and after a few seconds, the text Saving settings. Do not
remove phone from charger appears. The charger LED changes to slow orange flashing.
It might take several minutes.
IMPORTANT: If the old handset cannot communicate with the charger, put the new handset
in the charger to restore its settings (that is, the handset’s IPDI). If this step is not performed,
the new handset must be sent for service. The old handset’s settings might be transferred to
the new handset by using WinPDM. Refer to the Configuration Manual, Ascom d83 DECT
Handset, TD 93426EN.
6, 7 When the text Please insert new phone in charger is displayed, replace the old
handset with the new handset. The text Restoring settings is displayed.
IMPORTANT: Do not remove the handset while the text Restoring settings is displayed.
8 When the text Phone successfully replaced. Please remove phone to restart.
appears in the display, remove handset from charger. The handset is automatically restarted.
LED Indications during Easy Replacement
The following table shows the LED indications that is used by the charger during the easy replacement
procedure. See also 13 Troubleshooting, page 83.
LED indication Description
Orange, flashing (1 000 ms on, 1 000 ms off) File transfer during Easy Replacement.
TD 93434EN / 01 December 2021 / Ver. B 91
