Aspen Avionics EFD1000 E5 - Figure E8: EA100 Main Wiring Connections(King and Century)

EFD1000 E5 Dual Electronic Flight Instrument (EFI) Install Manual
DOCUMENT # 900-00041-001 PAGE 206-226 REVISION D
© Copyright 2019 Aspen Avionics Inc.

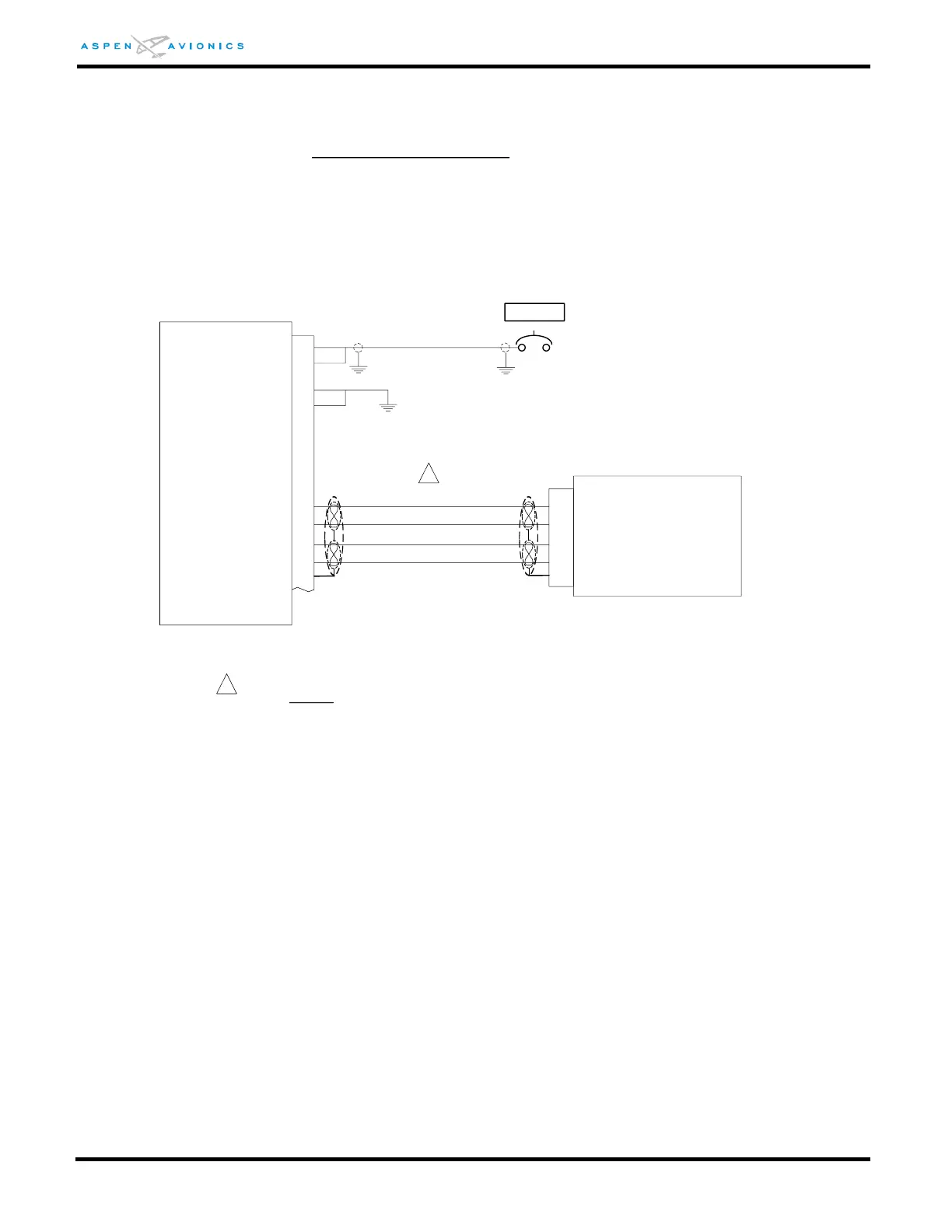

Figure E8: EA100 Main Wiring Connections(King and Century)
EA100
2
1
P1
ENET TX-
ENET TX+
10
9
ENET RX-
ENET RX+
40
38
ENET RX-
ENET TX-
P1
EFD1000
39
ENET TX+
ENET RX+
2A
8
15
7
14
P/N 412-00013-00x
37
1
EA100 to EFD1000 Ethernet connection must use Aspen P/N 412-00013-00x cable.
Shields must be terminated within the EA100 and EFD back shells to pass EMI/RFI
interference tests.
Avionics Buss
14Vdc or 28Vdc
POWER
POWER
GND
GND
1
A/P AHRS
GENERAL INSTALLATION NOTES
All wires in this section 22AWG unless otherwise specified
All grounds should be as short as possible
Terminate all shields within connector back shell
