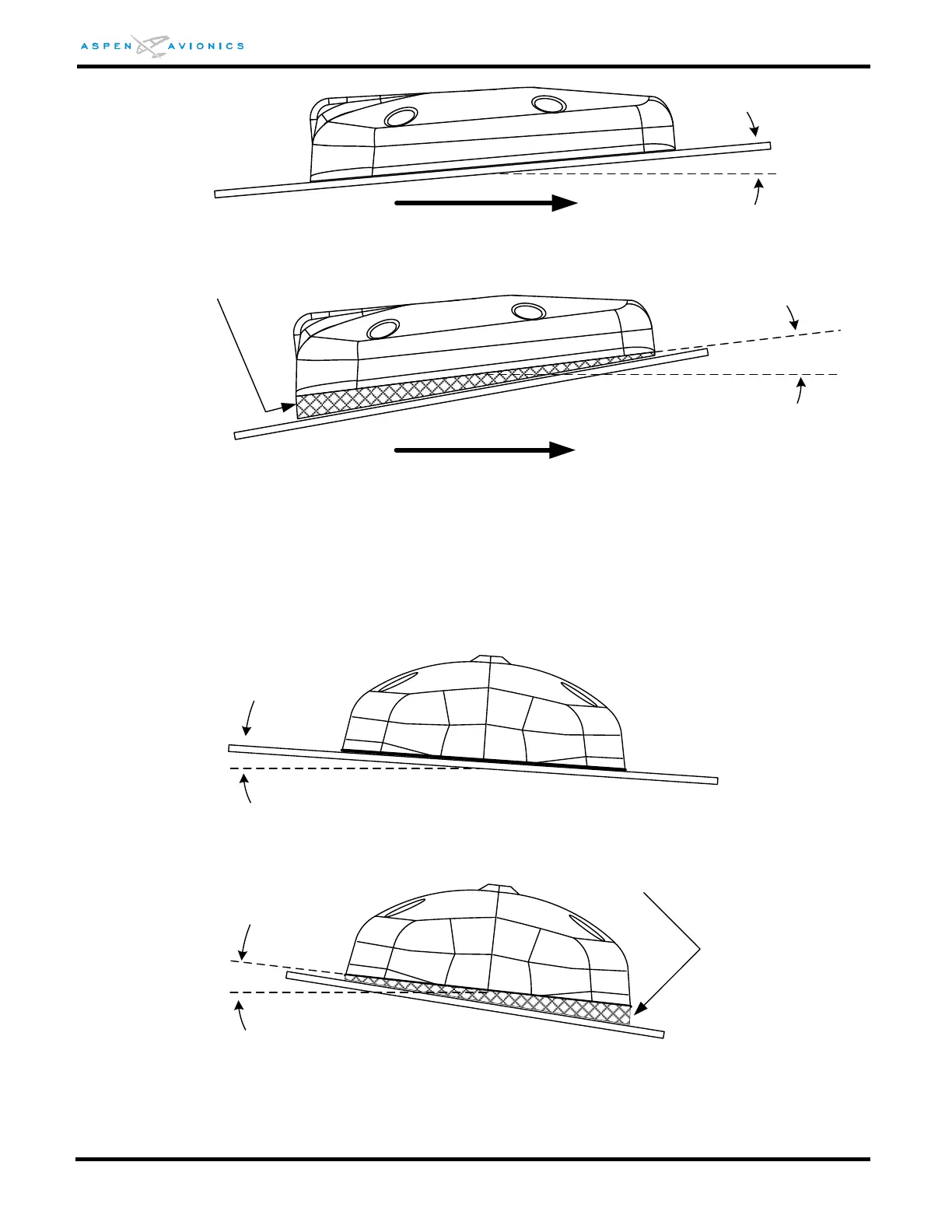

Figure 6-15: RSM Fore or Aft Max Tilt
Figure 6-16: RSM Fore or Aft Max Tilt (Shim installed)
6.9.7.3 Roll Axis
Maximum side-to-side tilt is 10 degrees in relation to wings level. An aluminum shim
might be required to keep orientation within limits (see Section 6.9.11 for shim
fabrication).
Figure 6-17: RSM Side to Side Max Tilt
Figure 6-18: RSM Side to Side Max Tilt (Shim installed)
10º Max Fore or Aft Tilt
FWD
10º Max Fore or Aft Tilt
FWD
Aircraft Waterline
SHIM
(Installer Fabricated if necessary)
Aircraft Skin
Front View
10º Max Tilt
Front View
10º Max Tilt
SHIM
(Installer Fabricated if necessary)
