Aspen Avionics EFD1000 E5 - Figure 4-1: EFD1000 E5 Authorized IFR Configuration

EFD1000 E5 Dual Electronic Flight Instrument (EFI) Install Manual
DOCUMENT # 900-00041-001 PAGE 36-226 REVISION D
© Copyright 2019 Aspen Avionics Inc.

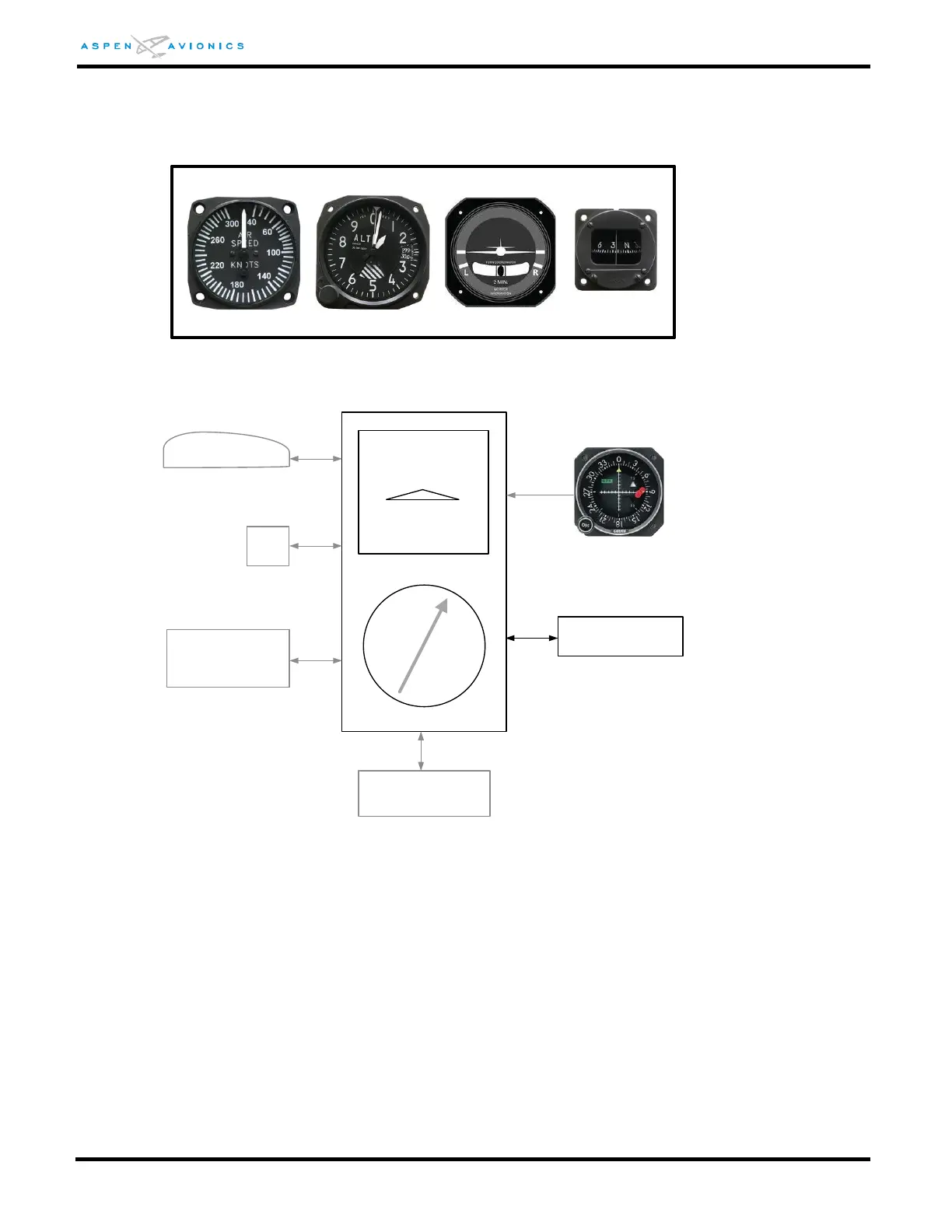

Figure 4-1: EFD1000 E5 Authorized IFR Configuration
E5
RSM
ACU
optional
CM
EA100
optional
Required Instruments (existing)
Secondary NAV
Indicator(2)
IFR GPS
IAS(1)
ALT(1)
Compass
Requires:
-existing Altimeter(1)
-existing Airspeed indicator(1)
-existing Turn/Bank indicator(1)(3)
-Magnetic Direction Indicator (compass)
-Secondary navigation indicator(2) (when required – see section 4.4.5)
-IFR GPS navigator input (see Section 5 table 5-2 for compatible devices)
(1) – The airspeed, altimeter and turn/bank indicators of the E5 are
secondary (advisory) functions. These existing instruments must not be
removed or relocated.
(3) – The Turn/Bank indicator may be removed provided an acceptable
backup Attitude indicator is installed.
IFR Approved Configuration
Turn/Bank(1)(3)
