2.2.5 Outline Drawing:

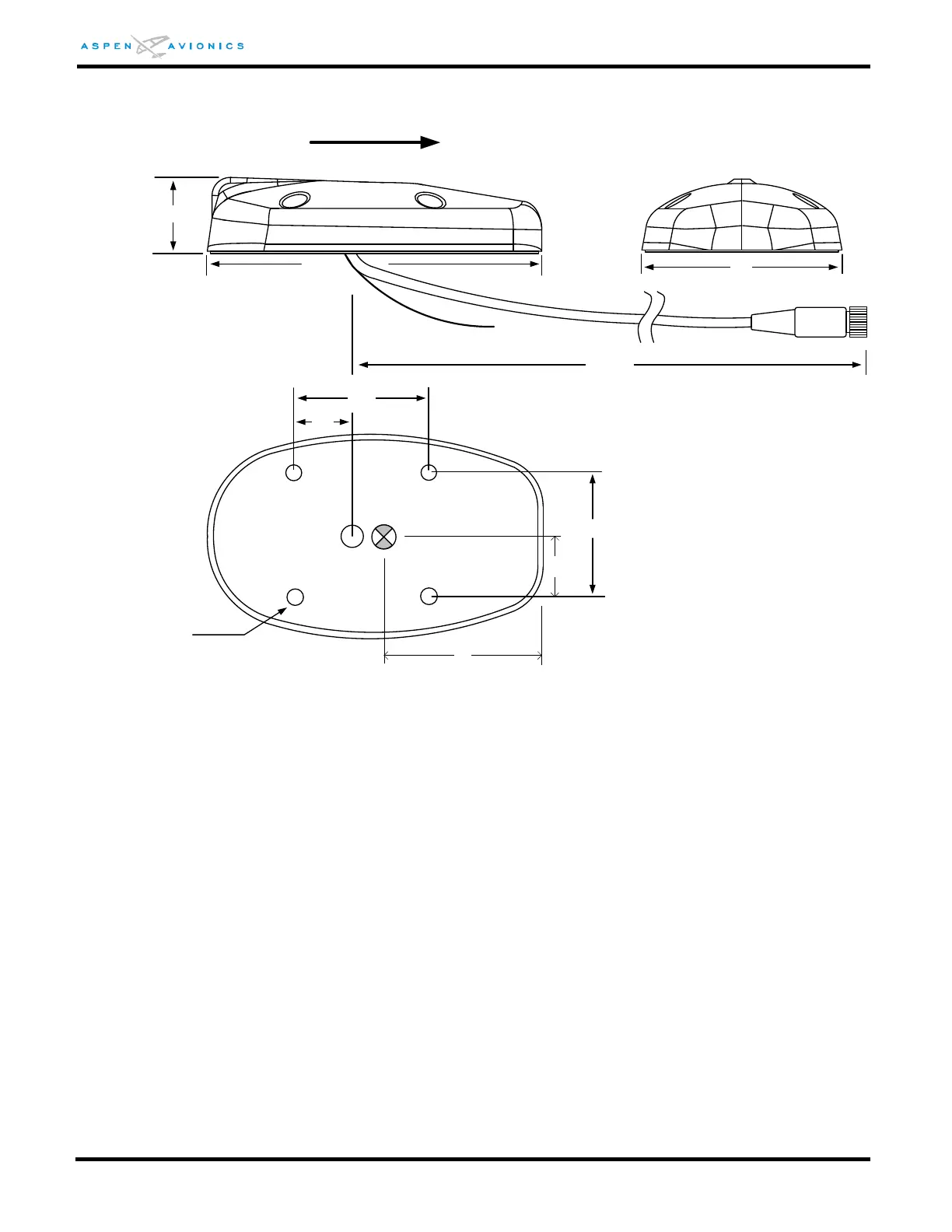

Figure 2-2: RSM Outline Drawing (inches)
2.3 Configuration Module (CM)
There is a single hardware part number Configuration Module, which is then loaded with the
appropriate configuration settings image file that establishes the functionality and feature set
of the attached EFD1000 E5 system.
2.3.1 General Specifications
Part Number ...................... 910-00005-004
Width ................................ 1.0 in.
Height ............................... 0.55 in.
Length ............................... 1.85 in.
Weight ............................... 0.1 lbs.
24 inches
4.36
1.1 max
2.64
1.750
1.625
4 X 0.194
CABLE
FEEDTHRU
0.75
FWD
C.G.
2.10
0.813
