2.4.5 Outline Drawing:

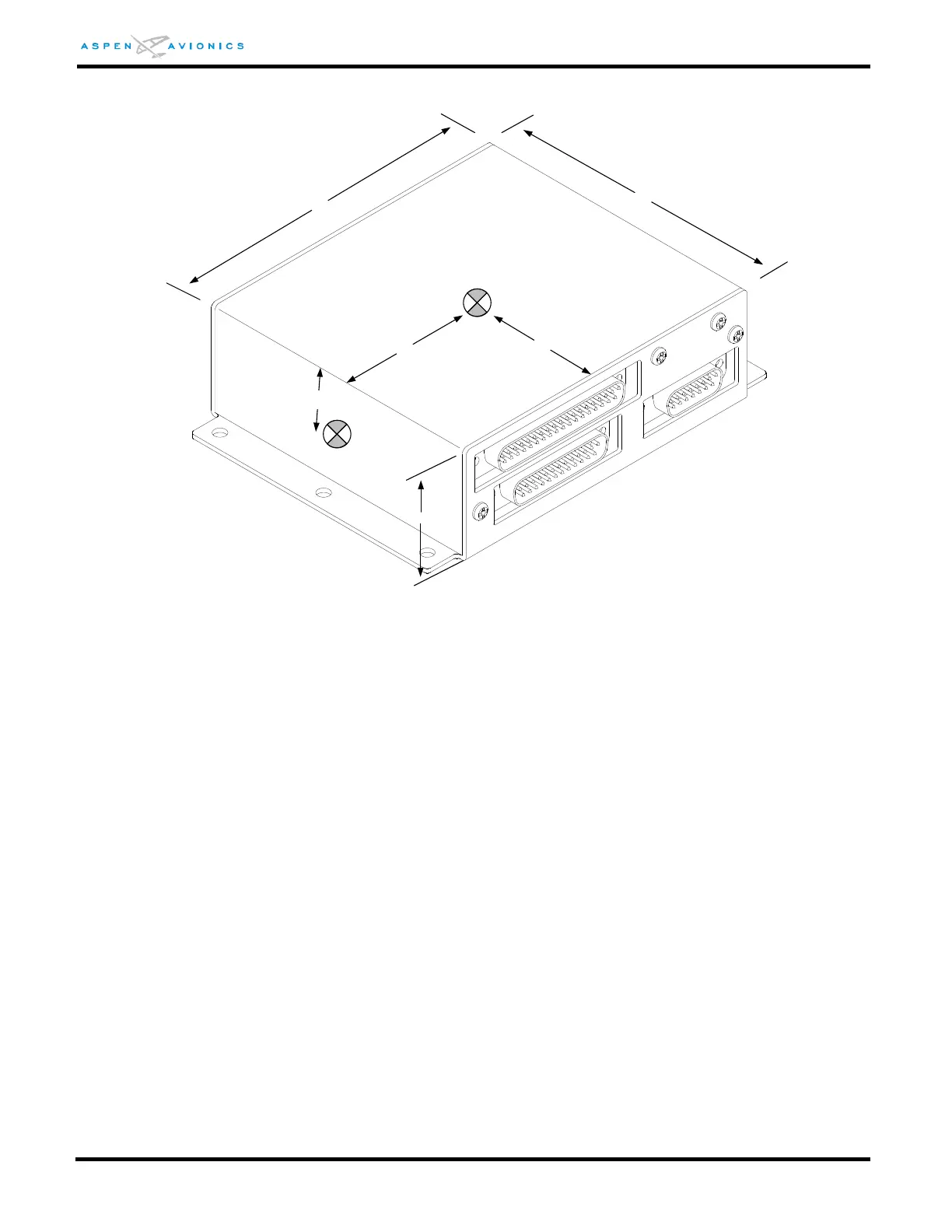

Figure 2-4: ACU Outline Drawing (inches)
2.5 Analog Converter Unit 2
2.5.1 General Specifications
Part Number ...................... 910-00004-101, -102
Width ................................ 5.75 in. including mounting flanges
Height ............................... 2.25 in.
Length ............................... 4.28 in.
Weight ............................... 1.1 lbs.
2.5.2 Operational Specifications
Operating Temp ................ -40°C to +55°C
Storage Temp .................... -55°C to +85°C
Max Operating Altitude ..... 35,000 ft.
Cooling ............................. None Required
Max Humidity .................... 95% at 50°C
Input Voltage ..................... +11 to +32 VDC
Nominal Current ................ 0.5/1.0 Amps (28v/14v)
2.5.3 I/O Specifications
ARINC 429 Inputs .............. 2 Low/High Speed
ARINC 429 Outputs ........... 3 Low/High Speed
4
.
72
4
.
28
1.60
2
.
14
2
.
36
0
.
80
C.G.
