Aspen Avionics EFD1000 E5 - Figure 6-12: RSM Internal Mounting Locations

To Next Page

To Previous Page

EFD1000 E5 Dual Electronic Flight Instrument (EFI) Install Manual

DOCUMENT # 900-00041-001 PAGE 64-226 REVISION D

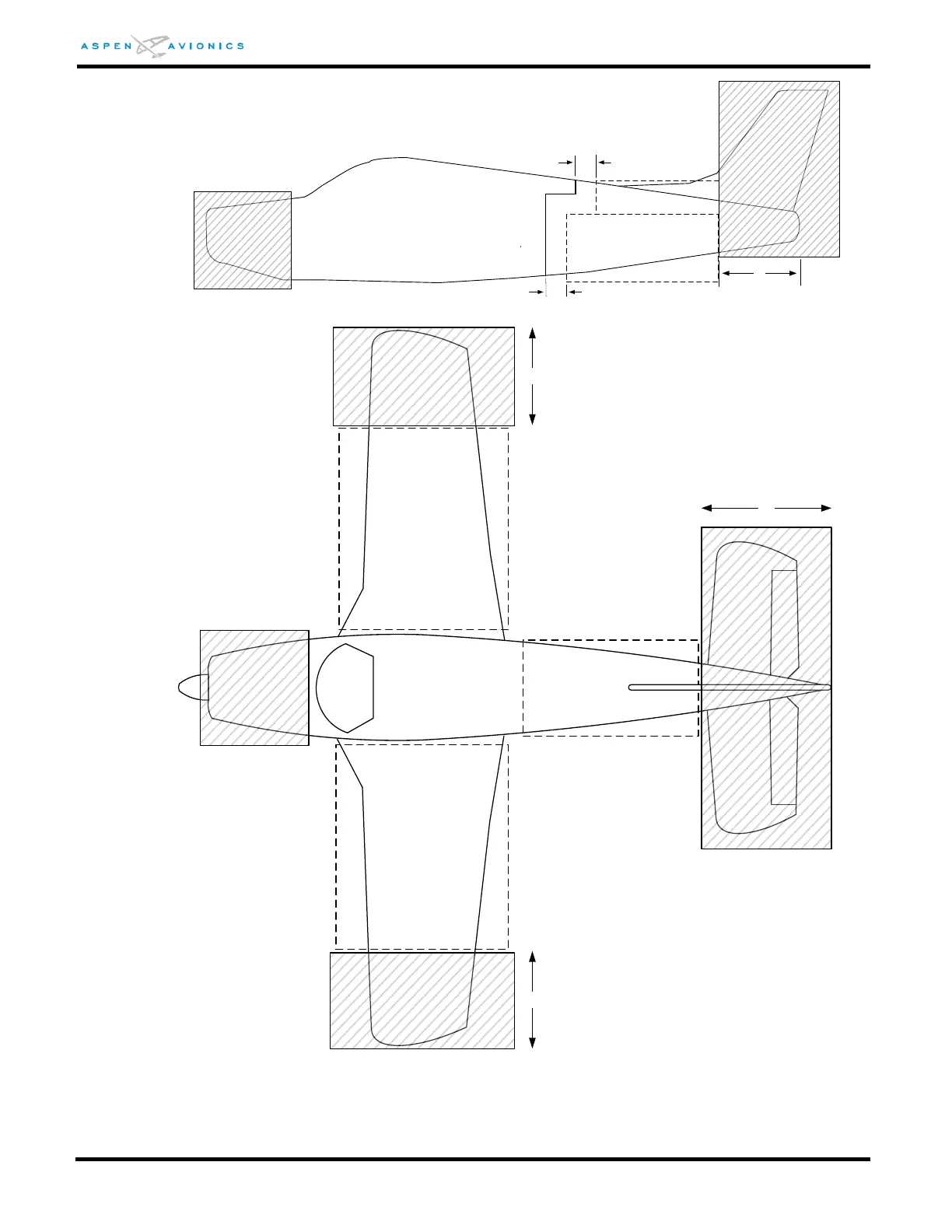

Figure 6-12: RSM Internal Mounting Locations – Composite/Fabric Aircraft

Hat Rack

Baggage

Compartment

NO ZONE

39"

NO ZONE

Acceptable Internal

Mount Area

Composite/Fabric

12"

NO ZONE

Acceptable Internal

Mount Area

Composite/Fabric

NO ZONE

39"

NO ZONE

39" 39"

Acceptable Internal

Mount Area

Composite/Fabric

Acceptable Internal

Mount Area

Composite/Fabric
