EFD1000 E5 Dual Electronic Flight Instrument (EFI) Install Manual
DOCUMENT # 900-00041-001 PAGE 24-226 REVISION D
© Copyright 2019 Aspen Avionics Inc.
2.1.5 EFD1000 E5 Outline Drawing

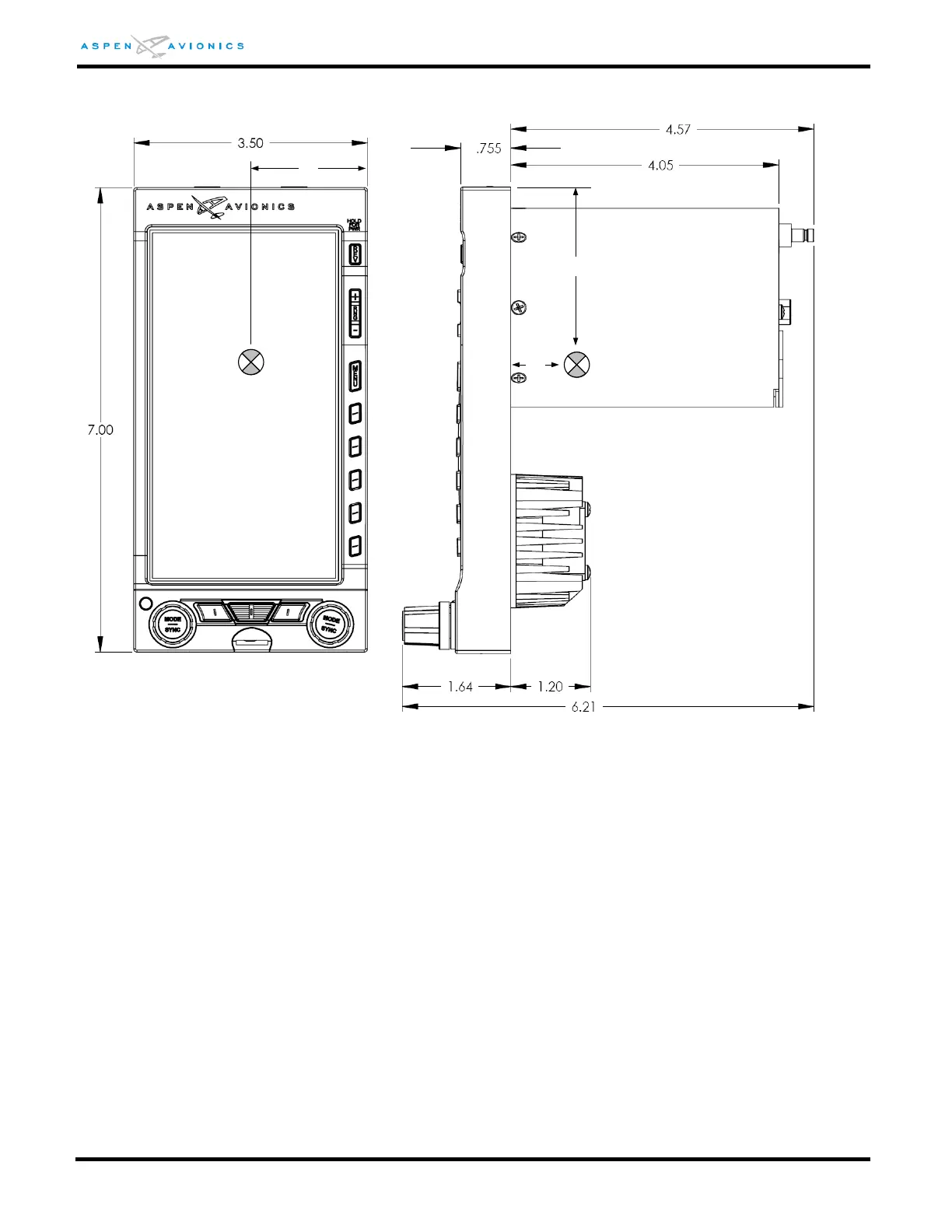

Figure 2-1: EFD1000 E5 Outline Drawing (inches)
2.1.6 Design Eye Viewing Envelope
The following information defines the viewing envelope within which the EFD1000 E5
complies with the equipment standards.
Minimum and maximum distance from the center of the EFD display surface:
10 inches (25.4 cm) minimum to 45 inches (114.3 cm) maximum.
Total viewing angles:
From -30º to +30º (left/right), and +30º to -30º (top/bottom) perpendicular to the EFD
front glass surface.
1.75
1.50
2.75
C.G.
EVOLUTION
